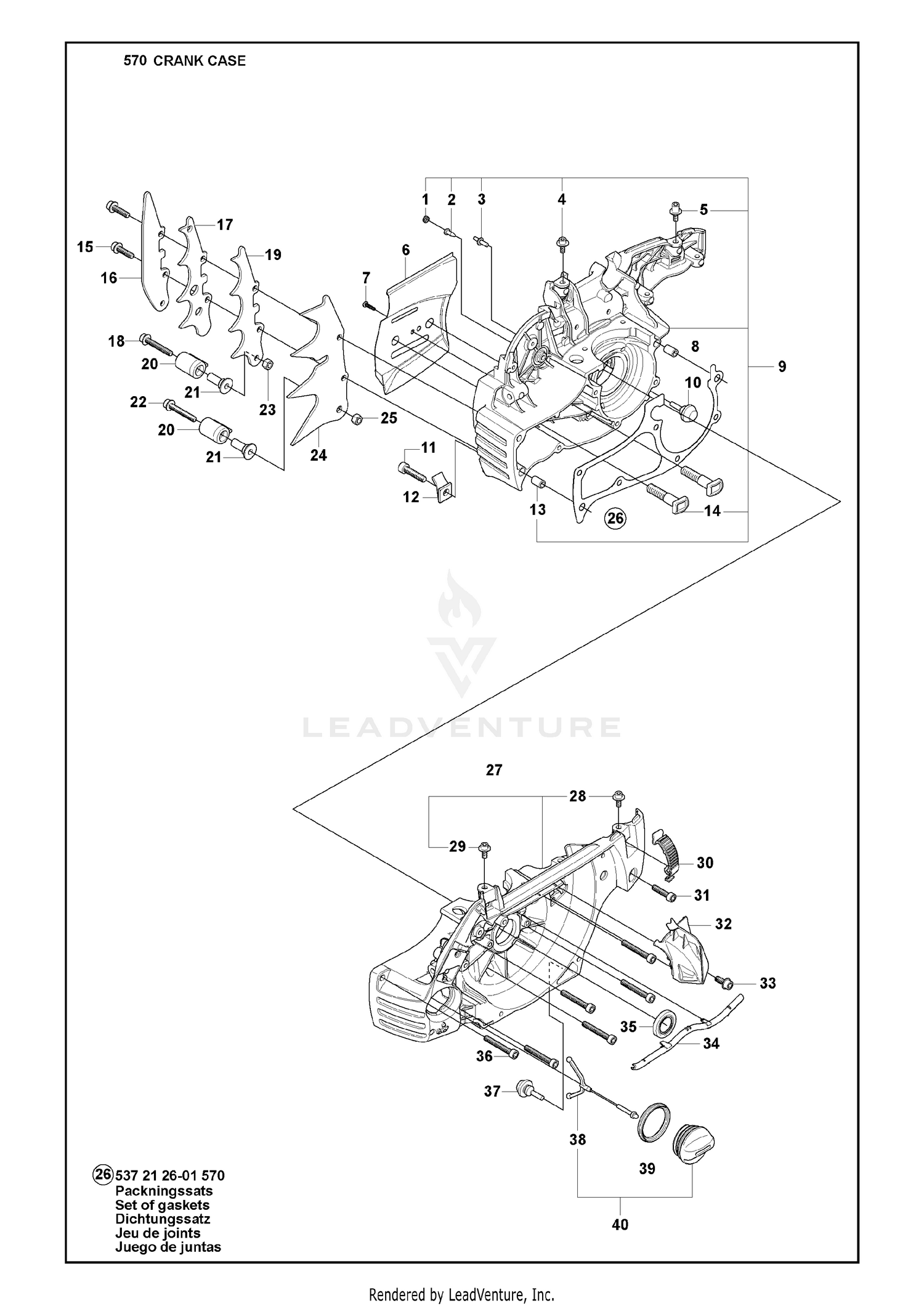

Crank Case
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 537403502 | SINTERED BRONZE FILTER This part replaces 537403501. Price: $2.99 |
| 1 | 67-4630 | ALTERNATOR ASSEMBLY Price: $550.36 |
| 2 | 530026119 | VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 2 | 67-4670 | NUT Price: $1.65 |
| 3 | 537203001 | PIN Price: $3.99 |
| 3 | 67-3260 | WASHER Price: $1.58 |
| 4 | 42-9660 | WASHER Price: $2.50 |
| 4 | 505111501 | SCREW IHSCM Price: $2.99 |
| 5 | 43-0370 | DISCONTINUED Price: Call Us |
| 5 | 505111501 | SCREW IHSCM Price: $2.99 |
| 6 | 537013702 | BAR PLATE Price: $9.99 |
| 6 | 67-4870 | REAR BEARING Price: $46.57 |
| 7 | 503212810 | SCREW Price: $2.99 |
| 7 | 67-4860 | DISCONTINUED Price: Call Us |
| 8 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 8 | 67-4930 | DISCONTINUED Price: Call Us |
| 9 | 537209308 | CRANKCASE ASSY Price: $249.99 |
| 9 | 67-4890 | REAR BRACKET ASSEMBLY Price: $997.52 |
| 10 | 503846101 | BUFFER Price: $4.99 |
| 10 | 67-4880 | DISCONTINUED Price: Call Us |
| 11 | 503207320 | SCREW Price: $4.99 |
| 11 | 67-4900 | DISCONTINUED Price: Call Us |
| 12 | 537377901 | CHAIN CATCHER Price: $4.99 |
| 12 | 67-4910 | REGULATOR ASSEMBLY Price: $649.68 |
| 13 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 13 | 67-4920 | BRUSH Price: $19.03 |
| 14 | 43-0510 | BRUSH SPRNG Price: $6.49 |
| 14 | 537051301 | BOLT Price: $6.99 |
| 15 | 503212616 | SCREW Price: $2.99 |
| 15 | 67-4830 | FRONT BRACKET ASSEMBLY Price: $283.39 |
| 16 | 537042901 | BUMPER Price: $8.99 |
| 16 | 67-4810 | PULLEY SET Price: $48.24 |
| 17 | 503647902 | FELLING DOG Price: $11.99 |
| 17 | 51-7850 | NUT SET This part replaces 43-1920. Price: $1.46 |
| 18 | 503200780 | SCREW IHSCFM Price: $3.99 |
| 18 | 67-4840 | SCREW SET Price: $5.18 |
| 19 | 537017101 | FELLING DOG Price: $11.99 |
| 19 | 67-4850 | FRONT BEARING Price: $24.45 |
| 20 | 537024401 | SPACER Price: $5.99 |
| 20 | 67-4820 | BOLT SET Price: $9.73 |
| 21 | 537089201 | CHAIN CATCHER Price: $5.99 |
| 21 | 67-4620 | SPACER Price: $17.73 |
| 22 | 503200780 | SCREW IHSCFM This part replaces 503207430. Price: $3.99 |
| 22 | 67-4640 | BOLT Price: $9.56 |
| 23 | 503222401 | NUT Price: $1.99 |
| 23 | 67-4650 | BRACE Price: $9.90 |
| 24 | 42-9440 | BOLT/WASHER Price: $4.52 |
| 24 | 537017201 | FELLING DOG Price: $19.99 |
| 25 | 503222401 | NUT Price: $1.99 |
| 25 | 54-8660 | WASHER Price: $2.23 |
| 26 | 67-4660 | BOLT-FLANGE Price: $2.64 |
| 27 | 5-3637 | SPACER Price: $2.23 |
| 27 | 537209308 | CRANKCASE ASSY This part replaces 537209304. Price: $249.99 |
| 28 | 43-5920 | WASHER-LOCK, SPRING Price: $0.25 |
| 28 | 505111501 | SCREW IHSCM Price: $2.99 |
| 29 | 505111501 | SCREW IHSCM Price: $2.99 |
| 31 | 503207320 | SCREW Price: $4.99 |
| 32 | 537209201 | JET Price: $6.99 |
| 33 | 503200712 | SCREW Price: $4.99 |
| 34 | 537203901 | HOLDER Price: $2.99 |
| 35 | 505486801 | RADIAL SEAL Price: $11.99 |
| 36 | 503200870 | SCREW Price: $2.99 |
| 37 | 503846101 | BUFFER Price: $4.99 |
| 38 | 503578901 | TANK LOCK Price: $4.99 |
| 39 | 589241101 | SEALING This part replaces 537215001. Price: $4.99 |
