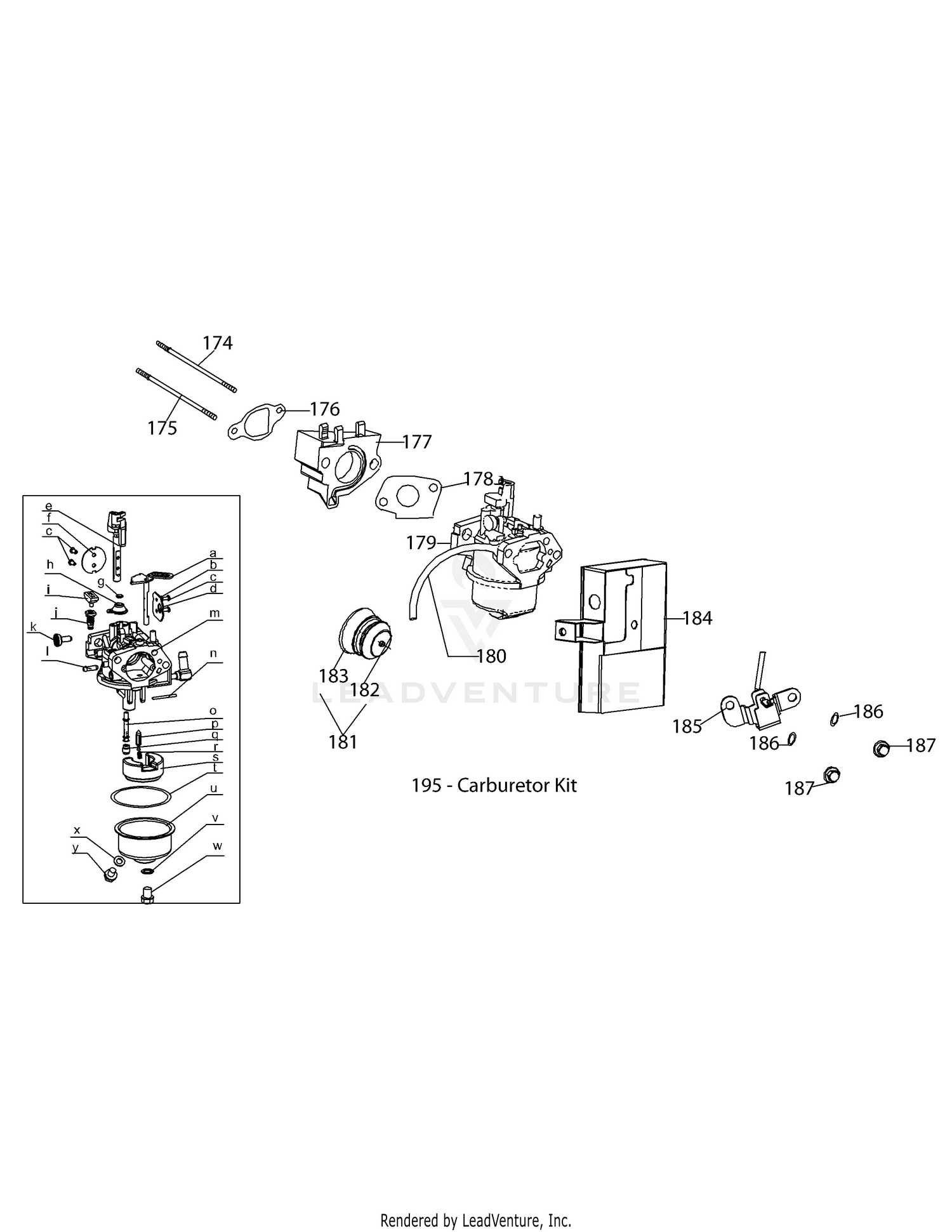

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| b |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| c |
710-05469 |
Screw M3×6 Price: $3.56 |
| d |
None |
Choke Plate |
| e |
None |
Throttle Shaft |
| f |
None |
Throttle Plate |
| g |
None |
Gasket |
| h |
None |
Throttle Shaft Cover |
| i |
None |
Idle Jet Rivet |
| j |
None |
Idle Jet Assembly |
| k |
None |
Idle Speed Adjusting Screw |
| l |
None |
Primer Pipe |
| m |
None |
Carburetor Body |
| n |
None |
Float Pin |
| o |
None |
Emulsion Tube |
| p |
None |
Needle Valve |
| q |
None |
Main Jet |
| r |
None |
Needle Valve Spring |
| s |
None |
Float |
| t |
951-11970 |
Fuel Bowl Gasket Price: $5.95 |
| u |
None |
Fuel Bowl |
| v |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| w |
710-04945 |
BOLT M8-1 x 10 Price: $3.66 |
| x |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 174 |
710-05392 |
Stud M6-8×100 Price: $5.59 |
| 175 |
710-05056 |
Stud M6-8×118 Price: $5.78 |
| 176 |
951-11315 |
Carburetor Insulator Gasket Price: $3.92 |
| 177 |
951-11353 |
CARBURETOR INSULATOR Not Available Price: |
| 178 |
951-11354 |
Carburetor Gasket Price: $4.45 |
| 179 |
951-05124 |
CARBURETOR ASSEMBLY This part replaces 651-05124. Price: $97.22 |
| 180 |
751-11991A |
PRIMER HOSE This part replaces 751-11991. Price: $11.12 |
| 181 |
951-10639B |
PRIMER This part replaces 951-10639A. Price: $13.84 |
| 182 |
951-11824 |
Primer Bulb Price: $9.75 |
| 183 |
951-11906 |
Primer Hose Clamp Price: $3.56 |
| 184 |
951-11304 |
Heater Box Not Available Price: |
| 185 |
951-11192 |
CHOKE ASSEMBLY NLAUD Not Available Price: |
| 186 |
736-04477 |
Lock Washer Price: $5.30 |
| 187 |
712-05015 |
Nut M6 Price: $5.78 |
