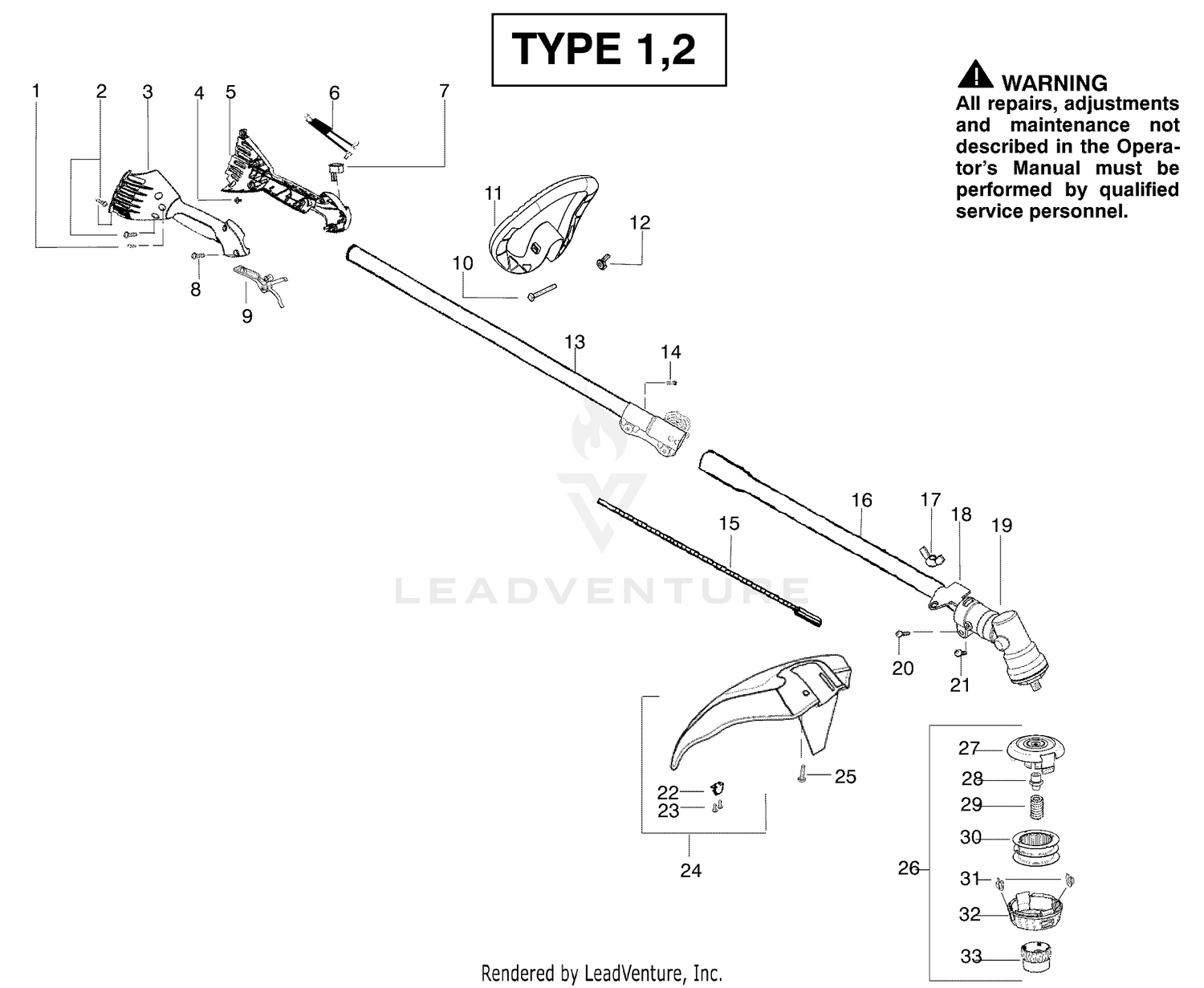

Handle & Shaft Assembly Type 1,2
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015805 | Screw-alignment Price: $1.99 |
| 2 | 530015886 | Screw Price: $1.99 |
| 3 | 530057983 | Hsg.-Throttle right Price: $7.99 |
| 4 | 530016326 | Screw-Cable Retention Price: $1.99 |
| 5 | 530057984 | Hsg.-Left throttle Price: $6.99 |
| 6 | 530058843 | Assy-Wire Price: $5.99 |
| 7 | 530069572 | Kit-Switch Price: $4.99 |
| 8 | 530015886 | Screw Price: $1.99 |
| 9 | 545017701 | TRIGGER THROTTLE RED This part replaces 530058759. Price: $1.99 |
| 10 | 530015786 | Bolt Price: $1.99 |
| 12 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 14 | 530016344 | Screw Price: $1.99 |
| 15 | 530096218 | Shaft-Flex (lower) Price: $6.99 |
| 16 | 530071789 | Kit-Lower Shaft Price: $17.99 |
| 17 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 18 | 530057554 | Bracket-Shield Price: $2.99 |
| 19 | 530096099 | Gearbox Price: $32.99 |
| 20 | 530016014 | Screw Price: $1.99 |
| 21 | 530015775 | Screw Price: $1.99 |
| 22 | 530052285 | Limiter-Line Price: $1.99 |
| 23 | 530015814 | Screw Price: $1.99 |
| 25 | 530015820 | Bolt Price: $1.99 |
| 27 | 537419302 | Housing Price: $11.99 |
| 28 | 537419801 | Adapter Price: $5.99 |
| 29 | 537338801 | Spring Price: $2.99 |
| 30 | 952711631 | Accy-Wound Spool Price: $7.99 |
| 31 | 545003365 | Kit-Cover and Eyelet This part replaces 537419701. Price: $8.99 |
| 32 | 545003365 | Kit-Cover and Eyelet This part replaces 537419401. Price: $8.99 |
| 33 | 537419601 | Knob Price: $3.99 |
