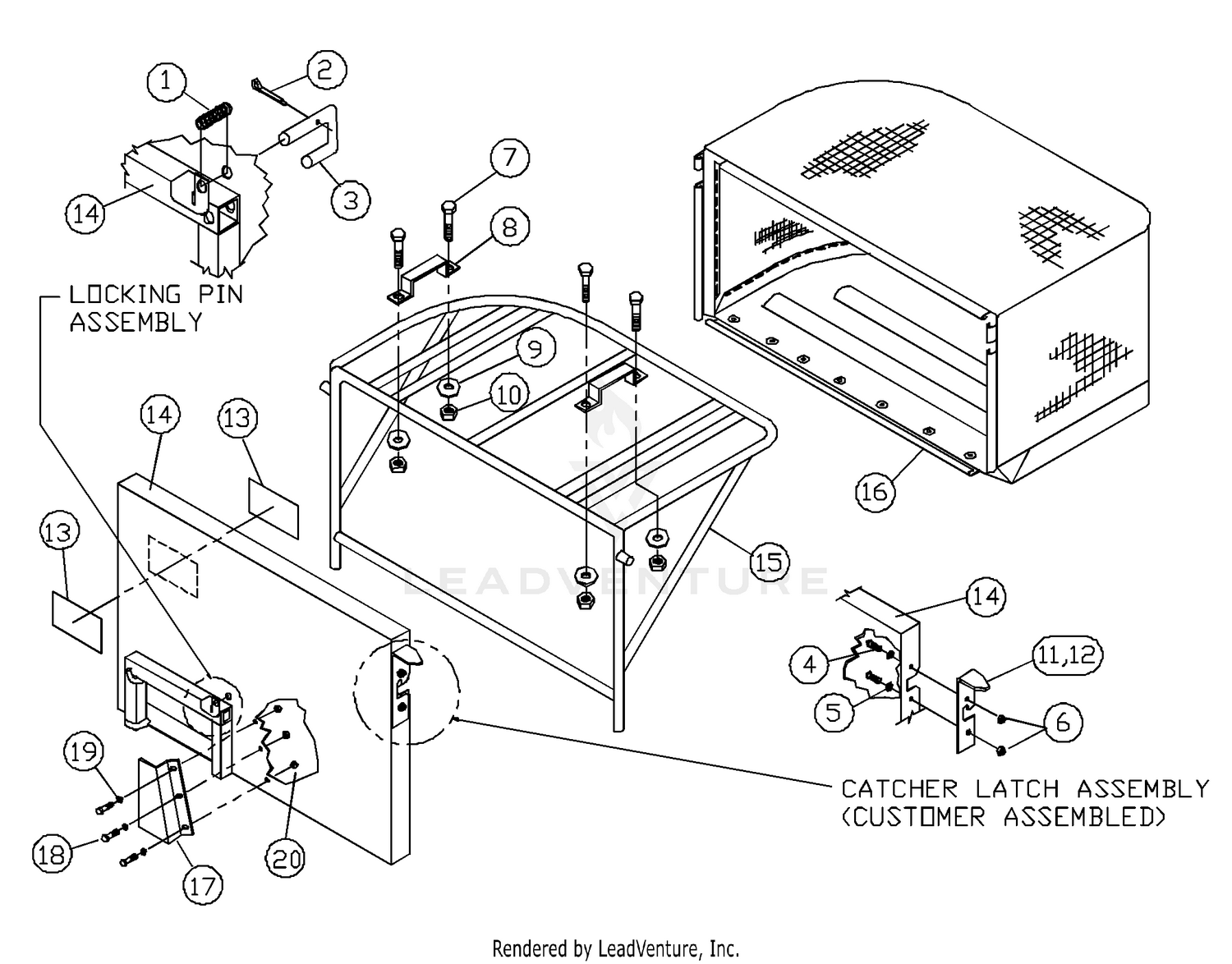

| Ref | Part Number | Description |
|---|
| 1 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 1 |
539977856 |
SPRING, COMPRESSION Price: $1.99 |
| 2 |
539100306 |
LOCKING PIN Price: $37.99 |
| 2 |
68-9760 |
DISCONTINUED Price: Call Us |
| 3 |
21-3600 |
FOAM-SUPPORT, TANK Price: $25.75 |
| 3 |
539990555 |
COTTER PIN 3/32 X 1/2 Price: $1.99 |
| 4 |
115-4519 |
FUEL TANK ASM This part replaces 43-4150. Price: $634.24 |
| 4 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 5 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 5 |
539976983 |
WASHER, WAVE SPRING Price: $0.99 |
| 6 |
32104-96 |
SCREW-HH Price: $5.59 |
| 6 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 7 |
37-9550 |
STRAP-TANK, FUEL Price: $46.74 |
| 7 |
539990548 |
HCS 1/4 X 1 Price: $2.99 |
| 8 |
539976585 |
HOPPER HANDLE Price: $22.99 |
| 8 |
62-7650 |
GASKET Price: $4.28 |
| 9 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 9 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 10 |
3219-14 |
NUT-HEX Price: $0.25 |
| 10 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 11 |
32144-53 |
SCREW-SHWH, THREAD FORMING Price: $3.19 |
| 11 |
539976581 |
CATCHER LATCH, RIGHT Price: $11.99 |
| 12 |
539976582 |
CATCHER LATCH, LEFT Price: $11.99 |
| 12 |
62-6840 |
FUEL LEVEL SENDER Price: $114.30 |
| 13 |
43-4160 |
FITTING-RETURN AND VENT Price: $67.42 |
| 13 |
539976583 |
DECAL, WARNING Price: $3.18 |
| 14 |
2412-79 |
CLAMP-HOSE Price: $1.63 |
| 14 |
539100309 |
BACKPLATE Price: $249.99 |
| 15 |
110-5688 |
HOSE-FUEL This part replaces 43-4230. Price: $34.27 |
| 15 |
539100334 |
WIRE FRAME 3 BU Price: $169.99 |
| 16 |
110-3259 |
HOSE-FUEL This part replaces 43-5690. Price: $33.03 |
| 16 |
539104545 |
BAG, 3 BU FABRIC Price: $167.99 |
| 17 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 17 |
539102193 |
ADAPTER SHIELD Price: $19.99 |
| 18 |
55-3572 |
FUEL CAP ASM Price: $15.49 |
| 18 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 19 |
22-7810 |
SPACER Price: $16.90 |
| 19 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 20 |
321-6 |
SCREW-HH Price: $0.25 |
| 21 |
21-3610 |
FOAM-SUPPORT, TANK Price: $20.11 |
| 23 |
2412-4 |
CLAMP-R Price: $4.22 |
| 27 |
109-0274 |
HOSE-FUEL This part replaces 63-9640. Price: $12.99 |
| 28 |
43-4190 |
FITTING ASM Price: $78.76 |
| 29 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 30 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 31 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER Price: $147.85 |
| 32 |
23-7270 |
NUT-LUG Price: $10.37 |
| 33 |
217-117 |
WHEEL Price: $164.56 |
| 34 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 35 |
86-9630-03 |
AXLE ASM This part replaces 71-4390. Price: $5,482.70 |
| 36 |
32144-67 |
SCREW Price: $2.87 |
| 37 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 39 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 40 |
289-37 |
NIPPLE-PIPE Price: $21.68 |
| 41 |
23-5180 |
DIPSTICK ASM Price: $69.61 |
| 42 |
53-4430 |
DECAL-OIL Price: $8.99 |
