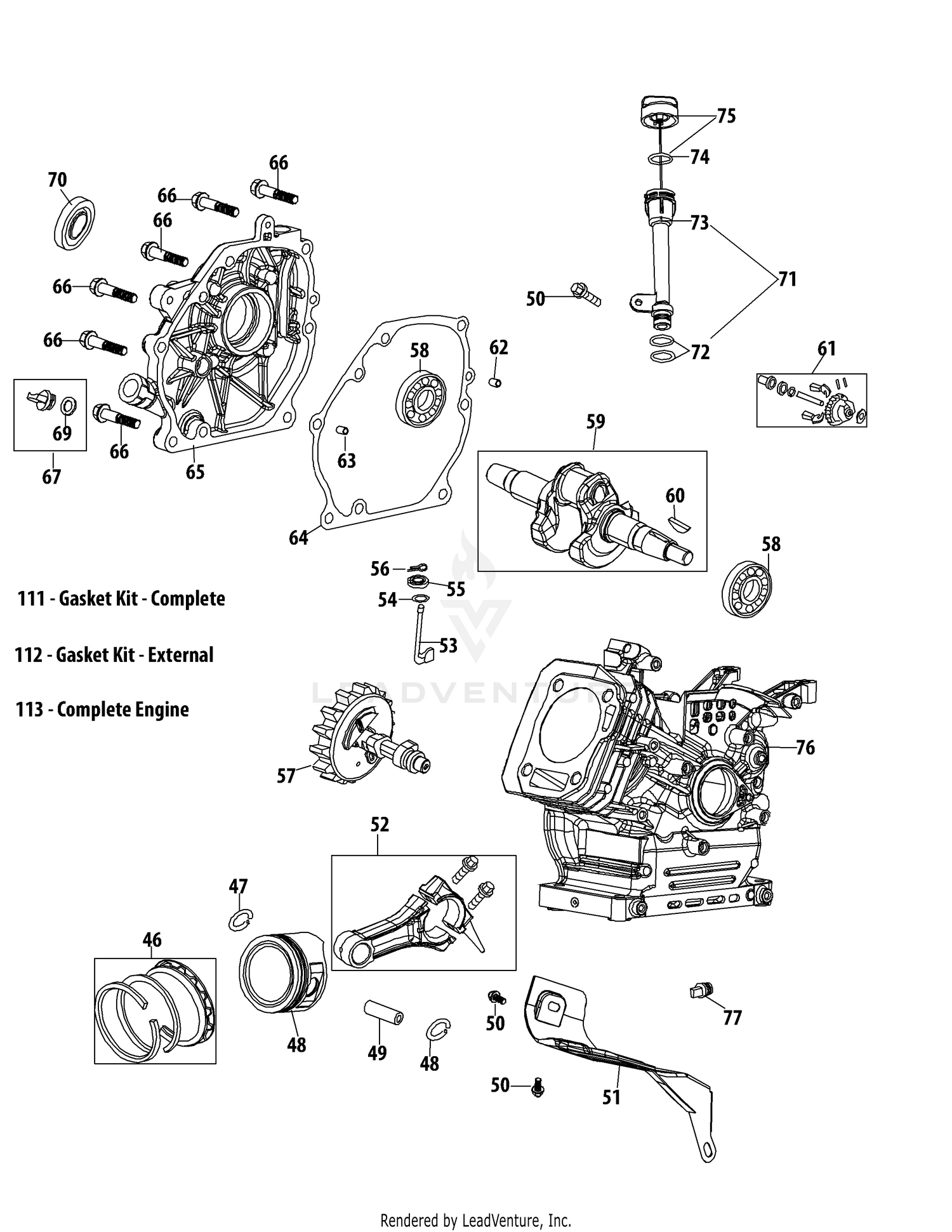

| Ref | Part Number | Description |
|---|
| 46 |
751P12111A |
PISTON RING SET This part replaces 951-12111. Price: $5.82 |
| 47 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 48 |
951-12007 |
Piston Price: $31.34 |
| 49 |
951-11633 |
PISTON PIN Price: $6.66 |
| 50 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 51 |
951-11113 |
Air Shield Price: $8.11 |
| 52 |
751P11573A |
CONNECTING ROD This part replaces 951-11573. Price: $8.87 |
| 53 |
951-14053 |
Governor Shaft This part replaces 751-14053. Price: $13.94 |
| 54 |
736-04461 |
Washer 5.2×1.9 Price: $3.50 |
| 55 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 56 |
714-04078 |
Cotter Pin Price: $3.66 |
| 57 |
951-11575 |
CAMSHAFT ASSEMBLY Price: $57.92 |
| 58 |
951-11369 |
Radial Ball Bearing, 6205 Price: $30.42 |
| 60 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 61 |
751P11576A |
GOVERNOR GEAR This part replaces 951-11576. Price: $3.00 |
| 62 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 63 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 64 |
751P11371B |
CRANKCASE GASKET This part replaces 951-11371. Price: $3.07 |
| 65 |
751P17706 |
CRANKCASE COVER This part replaces 951-12125. Price: $29.04 |
| 66 |
710-04932 |
Bolt M8×32 Price: $3.66 |
| 67 |
751-10493 |
Oil Fill Plug Assembly Price: Call Us |
| 69 |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 70 |
751P11368A |
OIL SEAL This part replaces 951-11368. Price: $2.70 |
| 71 |
951-11913 |
Oil Fill Tube Assembly Price: $14.46 |
| 72 |
951-11381 |
Oil Fill Tube O-Ring Price: $4.59 |
| 73 |
631-05020AP |
Dipstick Assembly This part replaces 951-10656. Price: $30.73 |
| 74 |
951-11904 |
Oil Fill Tube O-Ring Price: $3.69 |
| 75 |
951-12482 |
Dipstick Assembly Price: $13.22 |
| 76 |
951-14097 |
CRANKCASE This part replaces 751-14097. Price: $244.74 |
| 77 |
951-12514A |
Oil Drain Plug This part replaces 951-12514. Price: $5.48 |
