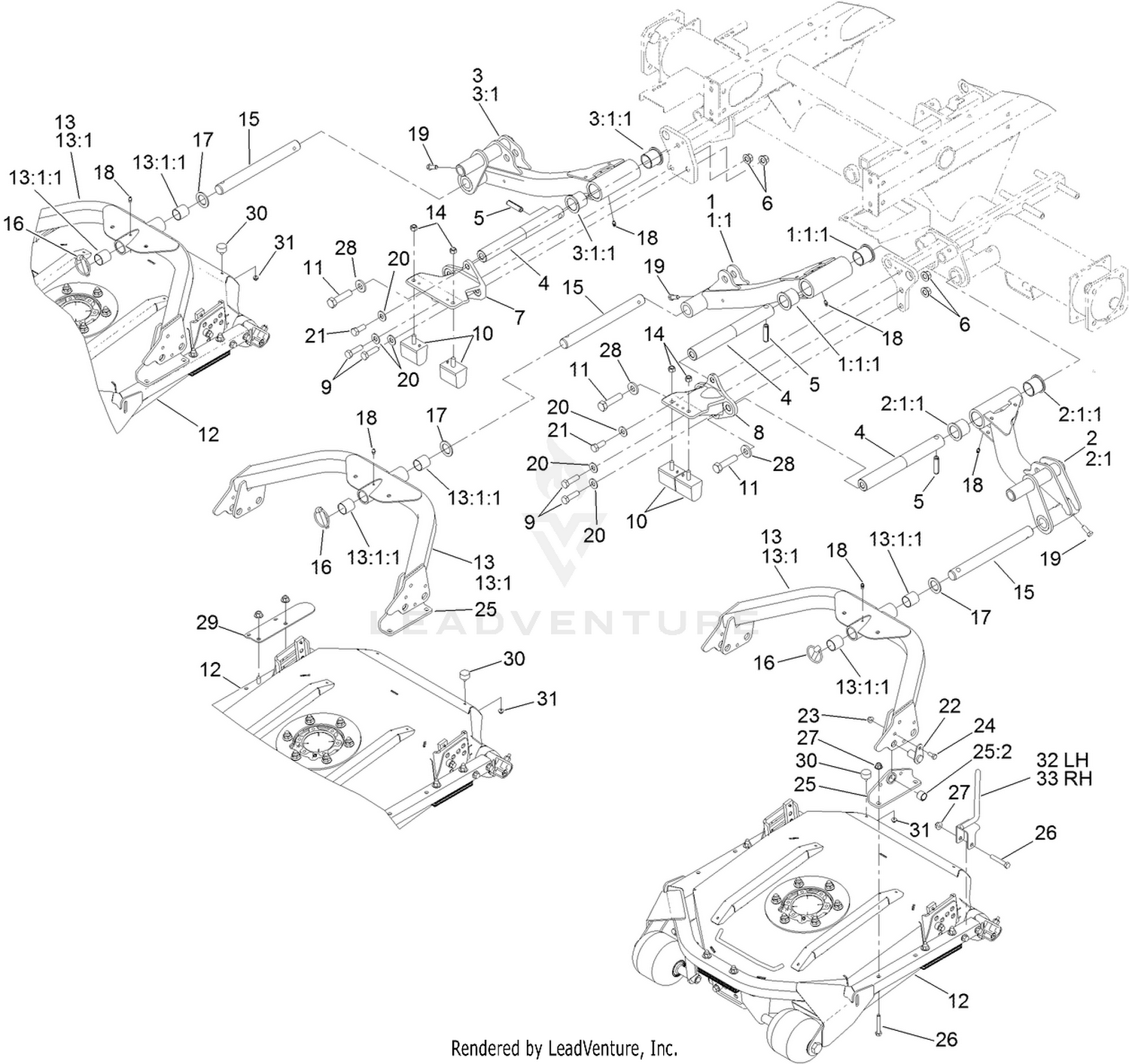

| Ref | Part Number | Description |
|---|
| 1 |
136-3491 |
NO 1 LIFT ARM ASM This part replaces 114-0381-03. Price: $353.30 |
| 2 |
136-3494 |
NO 4 LIFT ARM ASM This part replaces 114-0384-03. Price: $501.83 |
| 3 |
136-3500 |
NO 5 LIFT ARM ASM This part replaces 114-0385-03. Price: $501.83 |
| 4 |
117-0208 |
SHAFT-PIVOT, LIFTARM Price: $96.42 |
| 5 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 6 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 7 |
117-0250-03 |
TIPPE-RH Price: $183.65 |
| 8 |
117-0252-03 |
TIPPER-LH Price: $183.65 |
| 9 |
325-7 |
SCREW-HH Price: $1.53 |
| 10 |
87-3470 |
BUMPER Price: $18.89 |
| 11 |
327-7 |
SCREW-HH Price: $5.69 |
| 13 |
136-3515 |
CARRIER FRAME ASM This part replaces 108-7384-03. Price: $370.25 |
| 14 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 15 |
95-8979 |
SHAFT Price: $62.44 |
| 16 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 17 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
323-6 |
SCREW-HH Price: $0.66 |
| 20 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 21 |
325-5 |
SCREW-HH Price: $1.20 |
| 22 |
136-3568 |
PIN-FLAG (MACH) This part replaces 117-0132. Price: $14.65 |
| 23 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 24 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
117-0118 |
PIVOT ASM Price: $85.03 |
| 26 |
323-11 |
SCREW-HH Price: $1.08 |
| 27 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 28 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 29 |
105-9831-03 |
BRACKET-BUMPER, NO. 1 Price: $26.24 |
| 30 |
240-14 |
BUMPER-RUBBER Price: $13.84 |
| 31 |
104-7201 |
NUT-HF Price: $0.69 |
| 32 |
127-2613-03 |
GUARD-FOOT, LH This part replaces 117-0247-03. Price: $52.42 |
