Home / OPE / 0051981 / LH775-0020 Engine / LH775-0020 Crankcase

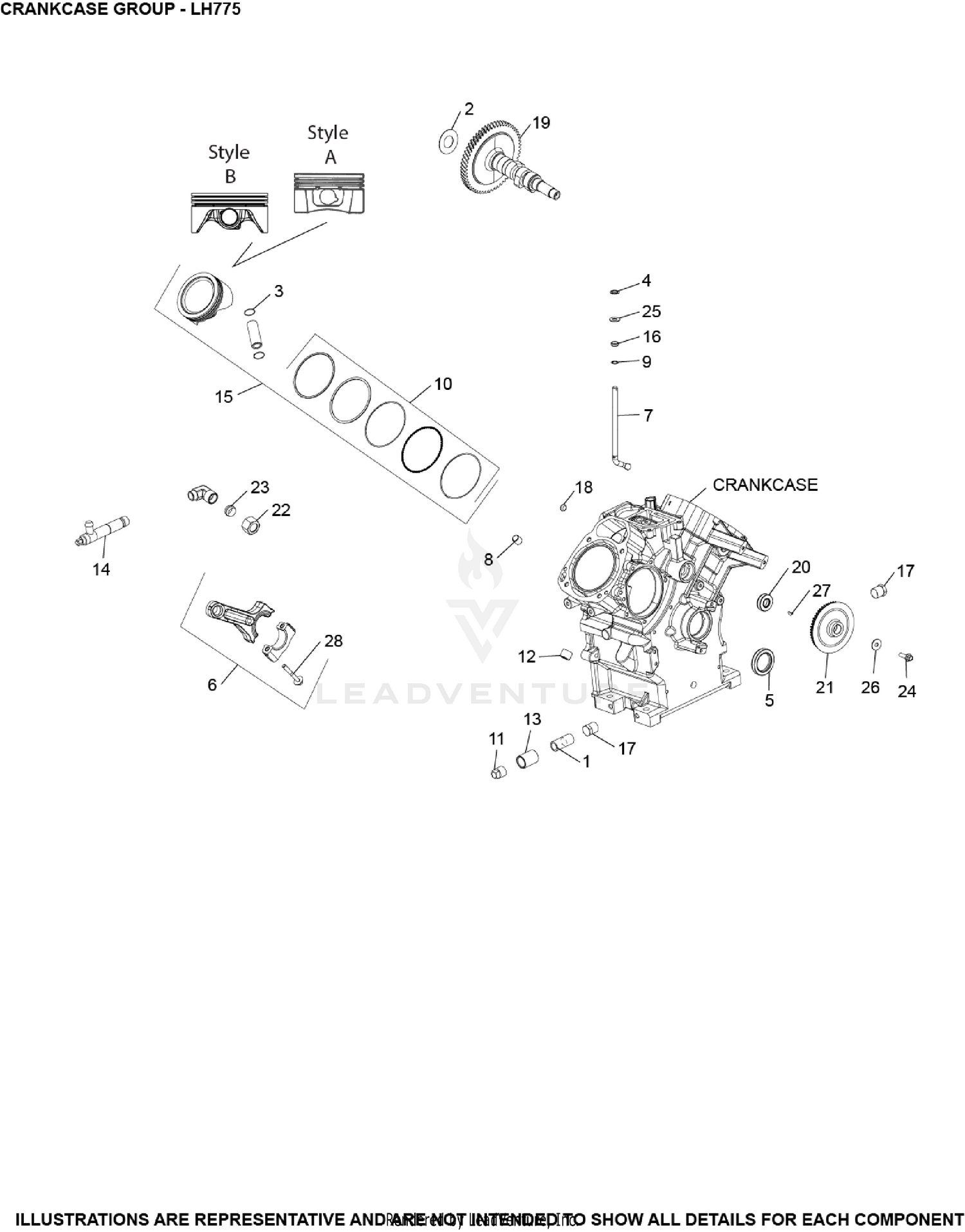

LH775-0020 Crankcase

LH775-0020 Crankcase

Parts (36)

RefPart NumberDescription
2 KH-12-422-07-S SHIM, CAMSHAFT (WHITE .028") Price: $4.23
2 KH-12-422-08-S SHIM, CAMSHAFT (BLUE .03") Not Available Price:
2 KH-12-422-09-S SHIM, CAMSHAFT (RED .032") Not Available Price:
2 KH-12-422-10-S SHIM, CAMSHAFT (YELLOW .034") Not Available Price:
2 KH-12-422-11-S CAMSHAFT SHIM Not Available Price:
2 KH-12-422-12-S SHIM, CAMSHAFT (GRAY .038") Not Available Price:
2 KH-12-422-13-S CAMSHAFT SHIM Not Available Price:
3 KH-24-018-01-S RETAINER-PISTON Price: $2.29
4 KH-24-018-09-S RING RETAINER Price: $2.11
5 KH-24-032-19-S OIL SEAL Price: $6.93
6 KH-25-067-04-S CONNECTING ROD ASSEMBLY Price: $57.73
7 KH-24-144-39-S GOVERNOR SHAFT CRO Not Available This part replaces KH-24-144-38-S. Price:
8 KH-24-380-16-S PIN-SPLIT DOWEL Price: $4.02
9 KH-24-468-15-S WASHER-1/4 FLAT Price: $2.29
10 KH-24-108-15-S RING SET(.08)STYLE A-1.5mm Tp RING THICK Price: $100.05
10 KH-24-108-16-S RING SET(.25)STYLE A-1.5mm Tp RING THICK Not Available Price:
10 KH-25-108-01-S RING SET(STD)STYLE B-1.2mm Tp RING THICK Price: $61.62
10 KH-25-108-02-S RING SET(.08)STYLE B-1.2mm Tp RING THICK Price: $23.53
10 KH-25-108-03-S RING SET(.25)STYLE B-1.2mm Tp RING THICK Price: $25.30
10 KH-25-108-04-S RING SET(.50)STYLE B-1.2mm Tp RING THICK Price: $100.05
11 KH-25-139-57-S PLUG-HEX HEAD PIPE Price: $2.29
15 KH-25-874-10-S PISTON WI/RINGS (STYLE B)(.08) Not Available Price:
15 KH-25-874-11-S PISTON W/RINGS (STYLE B)(.25) Not Available Price:
15 KH-25-874-12-S PISTON W/RINGS (STYLE B)(.50) Not Available Price:
15 KH-25-874-14-S Piston Kit w/ Ring (STD) (Inc. 9 & 10) This part replaces KH-25-874-06. Price: $169.62
16 KH-28-032-09-S SEAL Price: $3.19
17 KH-52-139-02 PLUG-BOTTOM Not Available Price:
18 KH-52-139-09-S PLUG-CUP Price: $4.72
19 KH-66-012-06-S CAMSHAFT Not Available Price:
20 KH-66-032-07-S OIL SEAL CAMSHAFT Not Available Price:
21 KH-66-093-01-S SPROCKET-CAMSHAFT 31 AEGIS UV Price: $33.85
22 KH-66-100-01-S NUT-BYPASS HOSE Not Available Price:
23 KH-66-431-03-S SLEEVE-BYPASS HOSE Not Available Price:
24 KH-M-651020-S HEX SCREW FLANGE Price: $2.23
25 KH-M-931010-S WASHER-9MM FLAT Price: $2.11
26 736-0173 FLAT WASHER .28 ID x .74 OD x .063 Price: $3.76
