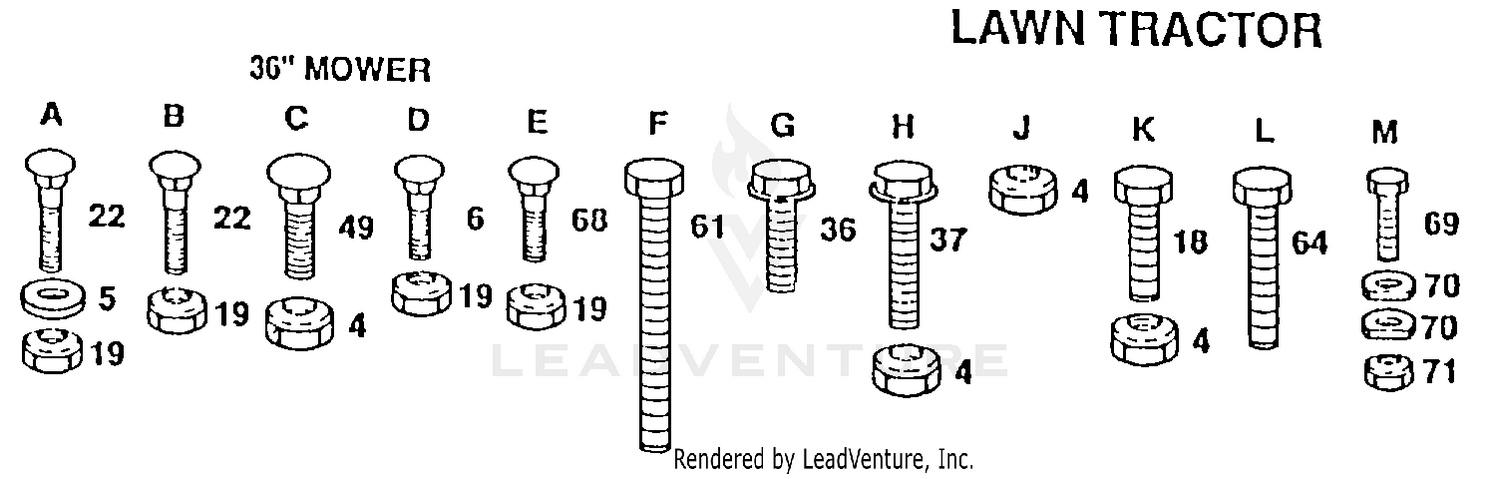

HARDWARE
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 94-1369 | SPRING-EXTENSION Price: $12.72 |
| 2 | 99-3556 | HOSE Price: $12.50 |
| 3 | 104-3918-03 | BRACKET ASM Price: $100.25 |
| 4 | 104-3917-03 | LEVER-PUMP Price: $67.91 |
| 4 | 73680600 | SUB= 73690600 Price: Call Us |
| 5 | 19111216 | WASHER M Price: Call Us |
| 5 | 95-3857 | SCREW-HSBH Price: $4.09 |
| 6 | 2844 | WASHER Price: $2.69 |
| 6 | 72140505 | BOLT Price: Call Us |
| 7 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 8 | 63-9750 | MOUNT Price: $18.92 |
| 9 | 99-3598-03 | HUB Price: $77.43 |
| 10 | 140-6168 | NEUTRAL ARM ASM This part replaces 104-0422. Price: $115.71 |
| 11 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 12 | 76-8640 | STUD-TRACTION Price: $23.60 |
| 13 | 302-60 | FITTING-GREASE Price: $2.26 |
| 14 | 3210-6 | SCREW-HH Price: $1.76 |
| 15 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 16 | 251-259 | BEARING-BALL Price: $13.67 |
| 17 | 321-6 | SCREW-HH Price: $0.25 |
| 18 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 18 | 74760612 | SUB= 74780612 Price: Call Us |
| 19 | 3230-22 | SCREW-CARR Price: $1.99 |
| 19 | 73680500 | SUB= 73690500 Price: Call Us |
| 20 | 32128-20 | NUT-HF Price: $0.99 |
| 21 | 88-7200 | WASHER-FLAT Price: $2.51 |
| 22 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 22 | 72140506 | BOLT Price: Call Us |
| 23 | 3274-104 | SCREW-HSBH Price: $0.54 |
| 36 | 17490614 | SCREW Price: Call Us |
| 37 | 17490620 | SCREW Price: Call Us |
| 49 | 72140606 | BOLT Price: Call Us |
| 61 | 74760688 | BOLT Price: Call Us |
| 64 | 72140610 | BOLT.3/8-14X1.25 Price: Call Us |
| 68 | 72110506 | SUB= 72270506 Price: Call Us |
| 69 | 74760412 | BOLT LT Price: Call Us |
| 70 | 109893X | WASHER T Price: Call Us |
| 71 | 73680400 | SUB= 73690400 Price: Call Us |
