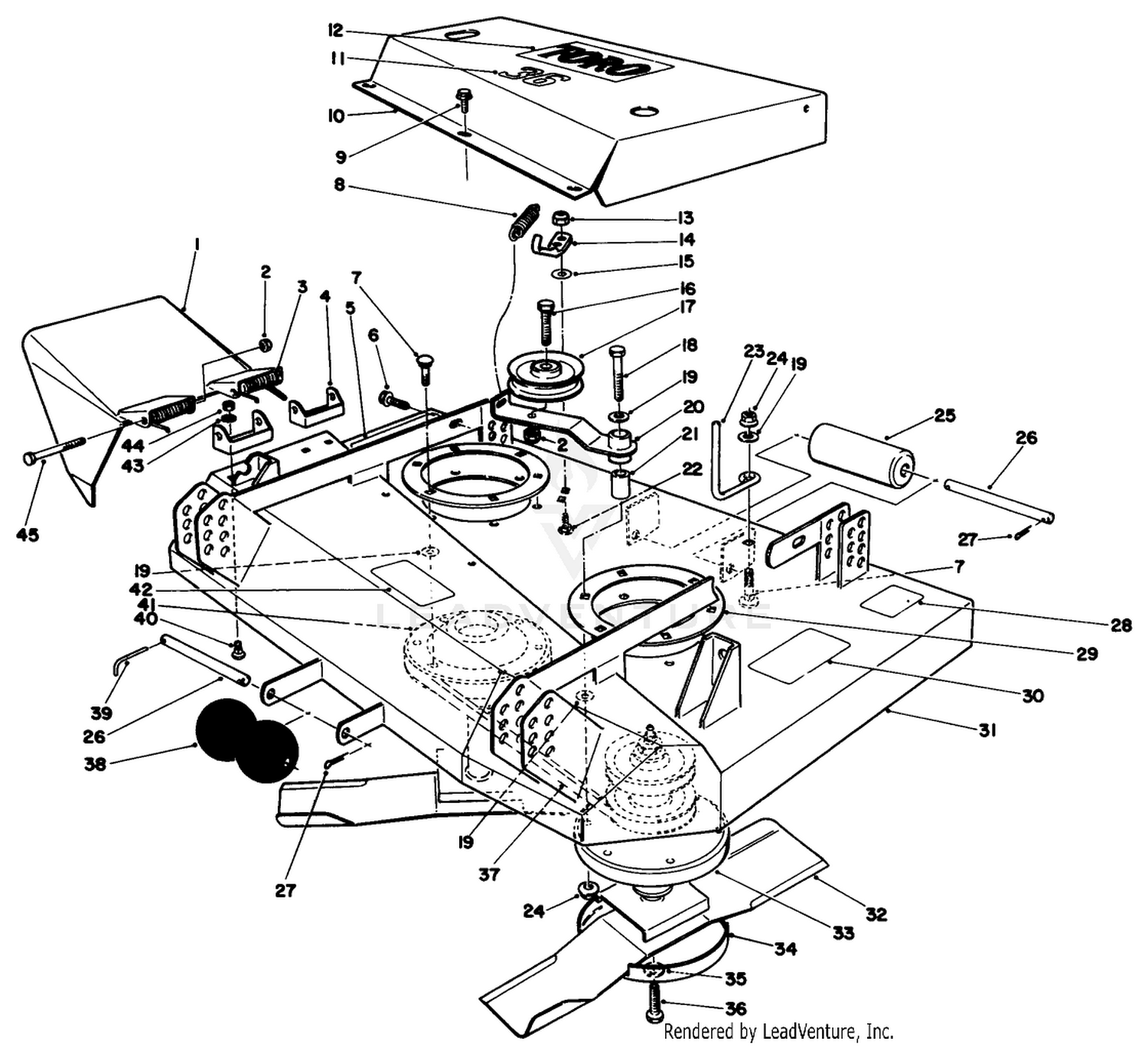

| Ref | Part Number | Description |
|---|
| 1 |
51-3670 |
Deflector-Grass Price: Call Us |
| 2 |
3296-5 |
NUT-HEX Price: $3.09 |
| 3 |
40-6230 |
SPRING Price: $37.99 |
| 4 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 5 |
26-7980 |
DISCONTINUED Price: Call Us |
| 6 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 7 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 8 |
51-3650 |
SPRING-EXTENSION Price: $10.93 |
| 9 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 10 |
51-3690 |
COVER-DECK Price: Call Us |
| 11 |
51-3730 |
Decal-36 Inch Price: $16.12 |
| 12 |
62-7400 |
DECAL Price: $24.54 |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 14 |
56-4360 |
ROD - SPRING Price: $42.16 |
| 15 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 16 |
3211-5 |
SCREW-HH Price: $0.88 |
| 17 |
51-3660 |
PULLEY-IDLER Price: $27.35 |
| 18 |
323-12 |
SCREW-HH Price: $1.14 |
| 19 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 20 |
56-4341-03 |
IDLER ARM ASM This part replaces 56-4341. Price: $53.15 |
| 21 |
51-3641 |
SLEEVE-PIVOT, IDLER Price: $13.59 |
| 22 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 23 |
52-4780 |
ROD-BELT Price: $13.99 |
| 24 |
32128-21 |
NUT-HF Price: $0.39 |
| 25 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 26 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 27 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 28 |
42-6860 |
DISCONTINUED Price: Call Us |
| 29 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 30 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 31 |
99-5873 |
DISCONTINUED This part replaces 51-3310. Price: Call Us |
| 32 |
56-2390-03 |
BLADE-18 INCH This part replaces 56-2390. Price: $34.99 |
| 33 |
54-7781 |
HOUSING - SPINDLE ASM Price: $607.52 |
| 34 |
72-9361 |
CUP-SCALP, ANTI This part replaces 27-1000. Price: $39.78 |
| 35 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 36 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 37 |
51-3530 |
V-BELT-DRIVE, DECK Price: $27.35 |
| 38 |
29-4820 |
ROLLER Price: $14.88 |
| 39 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 40 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 41 |
27-0870 |
SPINDLE ASM Price: $470.99 |
| 42 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 43 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 44 |
3217-6 |
NUT-HEX Price: $1.19 |
