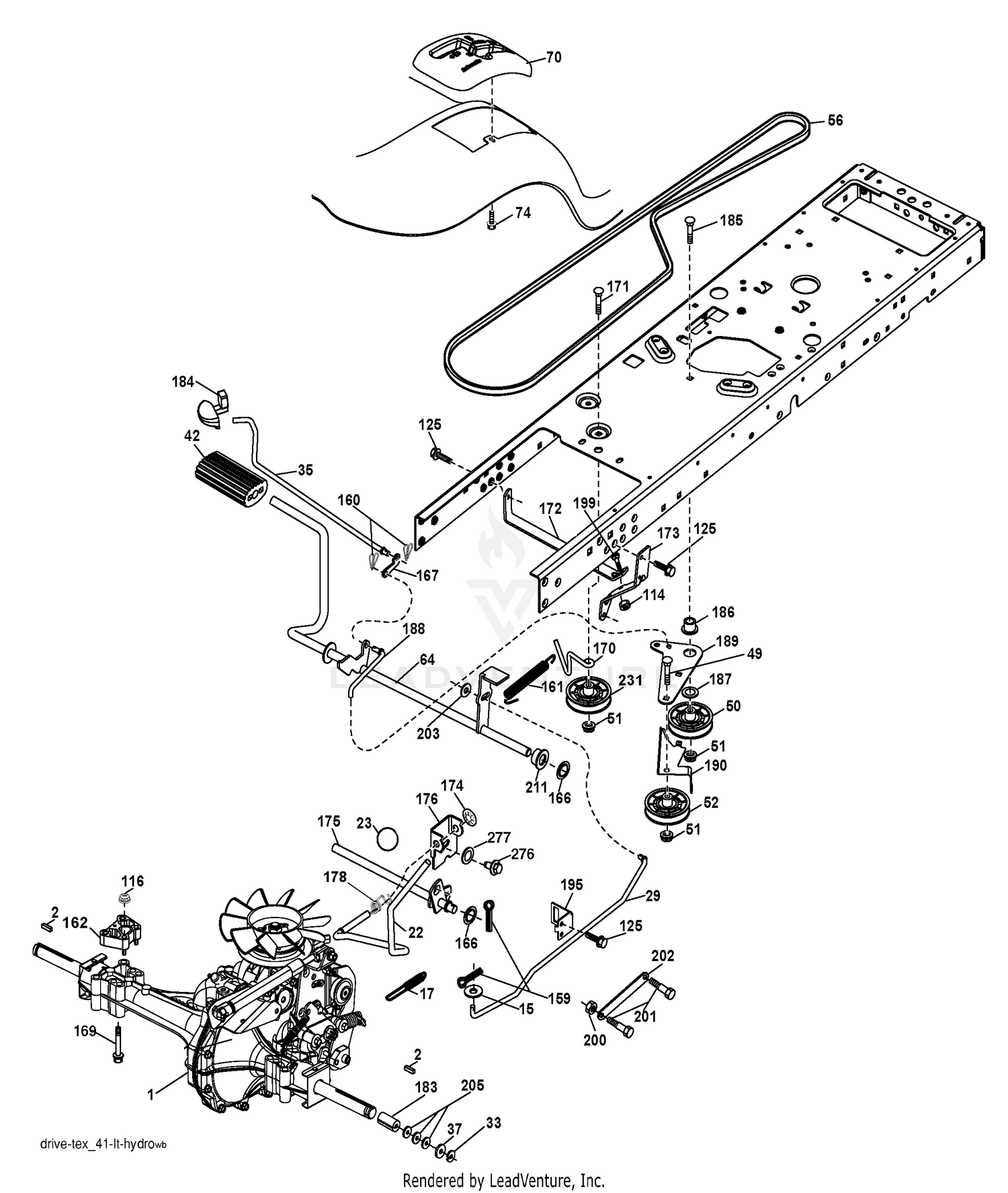

| Ref | Part Number | Description |
|---|
| 1 |
408799 |
Transaxle, Hydro Gear 351-0510 (See Transaxle Breakdown) Price: Call Us |
| 1 |
603Z05256 |
IDLER BRACKET ASSEMBLY This part replaces 903-05256. Price: $36.94 |
| 2 |
123583X |
Key Square Price: Call Us |
| 2 |
918-04317 |
WHEEL HUB ASSEMBLY Price: $102.24 |
| 5 |
703-08614A-0637 |
TRANSMISSION MOUNTING BRACKET (RH) Price: $10.31 |
| 6 |
703-08615A-0637 |
TRANSMISSION MOUNTING BRACKET (LH) Price: $10.31 |
| 7 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 8 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 9 |
710-04092 |
SCREW 7/16-20 x 1.75 GR 5 Price: $3.70 |
| 010 |
98-9468 |
NOZZLE HOLDER ASM Price: $341.86 |
| 10 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 11 |
710-1315 |
SCREW 3/8-16 X1.250 Price: $3.90 |
| 12 |
710-3119 |
SCREW 3/8-16 x .75 GR 5 Price: $5.91 |
| 13 |
711-06112 |
BELT KEEPER ROD .25 x 1.585 Price: $3.74 |
| 14 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
712-0459 |
FLANGE LOCK NUT Price: $4.39 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 17 |
712-3050 |
LUG NUT 7/16-14 Price: $9.17 |
| 18 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 19 |
732-05559 |
EXTENSION SPRING .75 DIA x 5.87 Price: $12.77 |
| 020 |
99-8301 |
NUT Price: $8.64 |
| 20 |
736-0227 |
Fl-Wash. .39" I.D. x 1.5" O.D. This part replaces 936-0227. Price: $5.78 |
| 21 |
736-0264 |
Fl-Wash. .344" I.D. x .625" O.D. This part replaces 936-0264. Price: $5.99 |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 22 |
736-0371 |
FLAT WASHER Price: $3.94 |
| 23 |
409154X421 |
Knob Price: Call Us |
| 23 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 24 |
738-04192B |
SUPPORT TUBE ROD Price: $18.87 |
| 25 |
747-05657B |
HYDRO BYPASS ROD Price: $13.12 |
| 26 |
747-06074 |
IDLER SPRING HOOK This part replaces 747-06074A. Price: $20.19 |
| 27 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 28 |
750-04561A |
SUPPORT TUBE Price: $23.66 |
| 29 |
197659 |
Rod, Brake Price: Call Us |
| 29 |
954-04317A |
TRANSMISSION DRIVE BELT A x 67 Price: $46.63 |
| 030 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 30 |
756-04494C |
TRANSMISSION DRIVE PULLEY This part replaces 756-04494B. Price: $30.97 |
| 31 |
756-05042 |
IDLER PULLEY 4.25 DIA Price: $25.54 |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 040 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 050 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
140218 |
V-Belt, Drive Price: Call Us |
| 060 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 070 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 70 |
193220X428 |
Console Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 080 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 090 |
99-8308 |
PIECE-NOZZLE Price: $90.57 |
| 100 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 110 |
99-8310 |
WASHER-ADJUST (0.10MM) Price: $2.74 |
| 110 |
99-8311 |
WASHER-ADJUST (0.20MM) Price: $3.56 |
| 110 |
99-8312 |
WASHER-ADJUST (0.30MM) Price: $2.74 |
| 110 |
99-8313 |
WASHER-ADJUST (0.40MM) Price: $2.74 |
| 110 |
99-8315 |
WASHER-ADJUST (0.52MM) Price: $1.91 |
| 110 |
99-8316 |
WASHER-ADJUST (0.54MM) Price: $1.91 |
| 110 |
99-8317 |
WASHER-ADJUST (0.56MM) Price: $1.91 |
| 110 |
99-8318 |
WASHER-ADJUST (0.58MM) Price: $1.91 |
| 110 |
99-8319 |
WASHER-ADJUST (0.80MM) Price: $1.91 |
| 114 |
73800500 |
Nut Lock 5/16-18 UNC Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 162 |
195785 |
Spacer Transaxle Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 169 |
74490560 |
Bolt 5/16-18 x 3.75 Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110622 |
Bolt Price: Call Us |
| 172 |
197656 |
Strap Torque LH Price: Call Us |
| 173 |
197655 |
Strap Torque RH Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
197653 |
Shaft Asm Shift Price: Call Us |
| 176 |
196214 |
Arm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 183 |
137057 |
Spacer Axle Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 195 |
198012 |
Bracket Brake Rod Price: Call Us |
| 199 |
72140508 |
Bolt 5/16-18 UNC x 1 Price: Call Us |
| 200 |
73930500 |
Nut Centerlock 5/16-18 UNC Price: Call Us |
| 201 |
169612 |
Bolt Shoulder 5/16-18 UNC Price: Call Us |
| 202 |
197715 |
Link Transaxle Price: Call Us |
| 203 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 211 |
196212 |
Bushing Price: Call Us |
| 231 |
407287 |
Idler V-Groove 1.688" Offset Price: Call Us |
| 276 |
74780716 |
Bolt 7/16-14 x 1 Gr 5 Price: Call Us |
