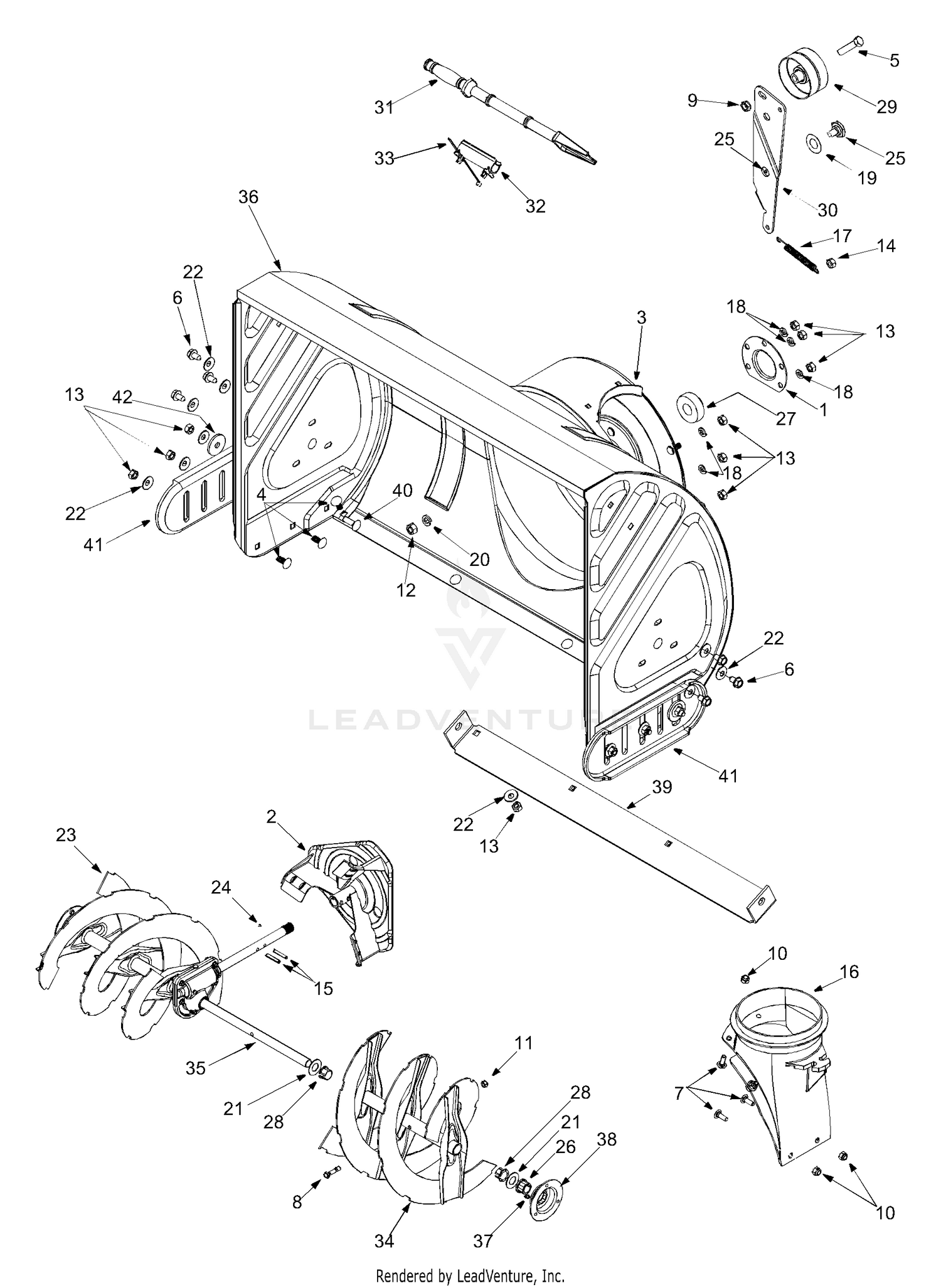

General Assembly

General Assembly

Parts (38)

RefPart NumberDescription
1 05931A Bearing Housing Price: $9.73
3 705-5226 Chute Reinforcement Price: $8.69
4 710-0451 Carriage Bolt Price: $3.53
5 710-0459A Hex Bolt 3/8-24 x 1.5" Price: $6.50
6 710-0726 TT Screw 5/16-12 x 0.75" Price: $3.82
7 710-0703 Carriage Screw 1/4-20 x 0.75" Price: $3.66
8 710-0890A Shear Bolt Price: $1.58
9 712-0116 Lock Nut 3/8-24 Price: $3.95
10 912-3027 LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85
11 712-0429 Lock Nut Price: $3.56
12 712-0798 Hex Nut 3/8-16 Price: $3.86
13 712-3010 HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89
14 712-3009 Hex Lock Nut, 5/16-18 This part replaces 712-3068. Price: $5.99
15 715-0114 Spring Pin Price: $8.68
16 731-1379D Adapter Chute This part replaces 731-1379C. Price: $57.72
17 932-0611 Extension Spring, .38 OD x 3.6 This part replaces 732-0611. Price: $6.92
18 936-0119 LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29
19 936-0167 FLAT WASHER This part replaces 736-0167. Price: $6.01
20 736-0169 Lock Washer Price: $3.33
21 736-0188 Flat Washer Price: $3.75
22 736-0242 Bell Washer Price: $3.75
23 684-04186-0637 Spiral Assembly: RH 30" This part replaces 605-5248C. Price: $177.29
24 737-0318-CRTG ARCTIC GREASE (NOT SERVICEABLE) Not Available This part replaces 737-0318. Price:
25 738-0281 Shoulder Screw Price: $9.16
26 941-0245 Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07
27 941-0309 Flange Ball Bearing, .75 x 1.85 This part replaces 741-0309. Price: $69.59
28 741-0493C FLANGE BUSHING This part replaces 741-0493A. Price: $3.86
29 756-0178 Flat Idler Price: $17.64
30 984-0064-0637 Auger Idler Brkt. This part replaces 784-5632B. Price: $28.67
31 931-2643 Chute Cleanout Tool This part replaces 731-2643. Price: $16.68
32 731-11421 Cleanout Tool Mount This part replaces 731-2635. Price: $9.83
33 725-0157 Cable Tie Price: $3.46
35 918-0417B Gear Assembly: Auger 30" Not Available This part replaces 618-0417A. Price:
37 937-3000 GREASE FITTING This part replaces 7373000. Price: $4.04
38 784-5618A-0637 Hex Bearing Housing, 1.0 This part replaces 784-0399. Price: $11.45
39 790-00119-0637 Shave Plate, 2.25 x 29.66 This part replaces 784-5575. Price: $36.59
40 710-0276 Carriage Screw 5/16-18 x 1.0" Price: $3.68
41 784-5038B-0637 Slide Shoe This part replaces 784-5038B. Price: $24.49
