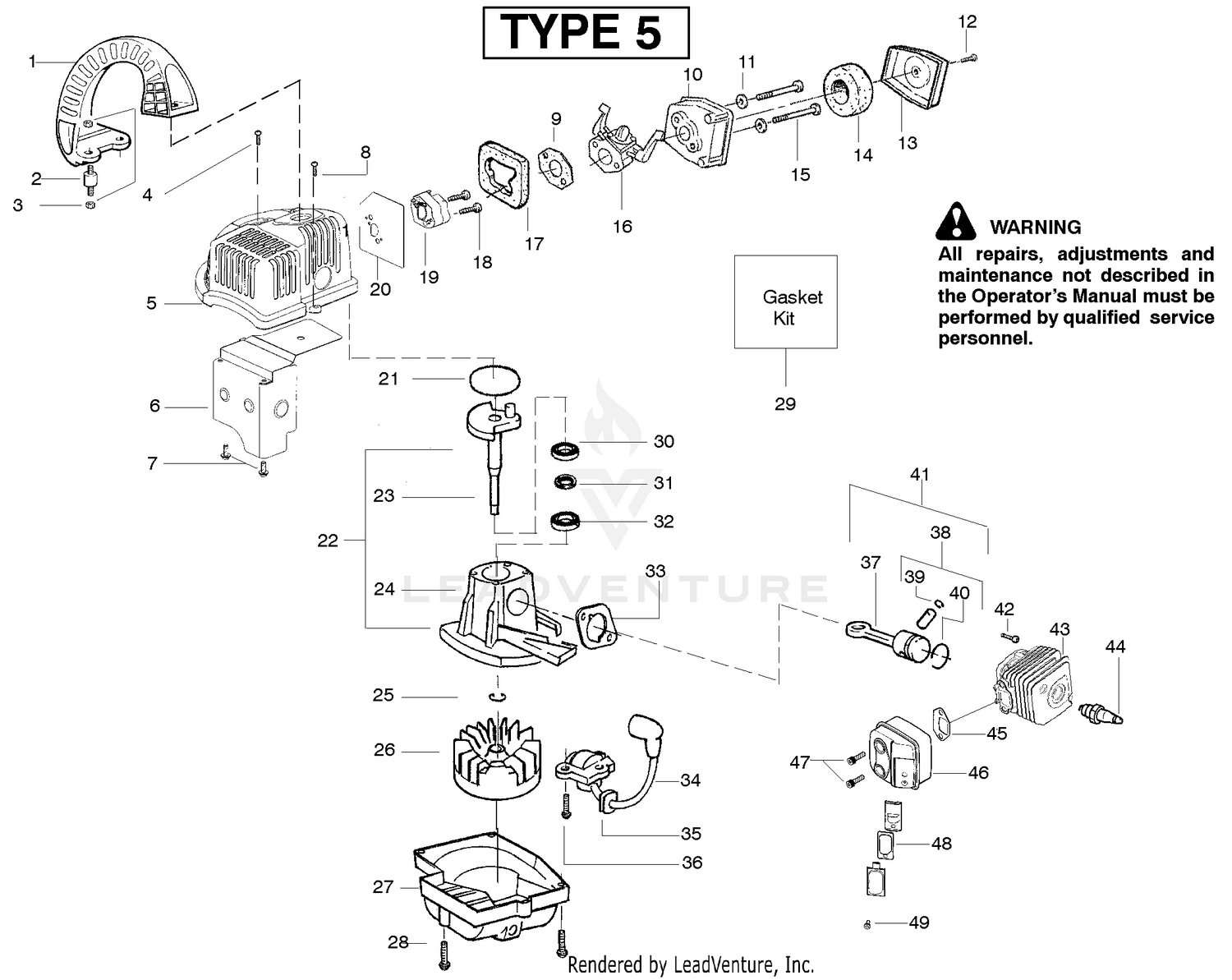

| Ref | Part Number | Description |
|---|
| 1 |
530054429 |
Handle Price: $7.99 |
| 2 |
530054432 |
IsolatorHandle Price: $3.99 |
| 3 |
530016316 |
Nut Price: $1.99 |
| 4 |
530016386 |
Screw This part replaces 530015810. Price: $5.99 |
| 5 |
530057102 |
Shroud Price: $10.99 |
| 6 |
530055378 |
ShieldHeat Price: $4.99 |
| 7 |
530015886 |
Screw This part replaces 530015805. Price: $1.99 |
| 8 |
530016349 |
Screw Price: $1.99 |
| 9 |
530071472 |
GasketCarb. (Kit) Price: $6.99 |
| 10 |
530052333 |
Air Box Price: $2.99 |
| 11 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 12 |
530015892 |
Screw Price: $1.99 |
| 13 |
530052332 |
CoverAir Box Price: $1.99 |
| 14 |
545082301 |
FoamAir Filter Price: $2.99 |
| 15 |
530016429 |
Screw Price: $1.99 |
| 16 |
530071629 |
KitCarburetor Ass'y. (C1U-W12A) Price: $52.99 |
| 17 |
530057725 |
FoamAir Dam Price: $2.99 |
| 18 |
530016309 |
Screw Price: $1.99 |
| 19 |
530057634 |
AdaptorCarb. Price: $8.99 |
| 20 |
530071472 |
GasketCyl/Carb. Adaptor (Kit) Price: $6.99 |
| 21 |
530071472 |
GasketC'case/Shroud (Kit) Price: $6.99 |
| 23 |
530071625 |
KIT ASSY C'CASE/C'SHAFT This part replaces 530052344. Price: $39.99 |
| 25 |
530015941 |
Retainer Ring (C'shaft) Price: $1.99 |
| 26 |
530054115 |
Assy-Flywheel This part replaces 530069886. Price: $27.99 |
| 27 |
530058942 |
Fan Housing Price: $9.99 |
| 28 |
530016386 |
Screw This part replaces 530015810. Price: $5.99 |
| 30 |
738210101 |
BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 31 |
530019264 |
SealCrankcase Price: $2.99 |
| 32 |
530055728 |
BearingOuter Price: $6.99 |
| 33 |
530071472 |
GasketCylinder (Kit) Price: $6.99 |
| 34 |
530039163 |
Ignition Module Price: $34.99 |
| 35 |
530019182 |
GrommetIgn. Module Price: $1.99 |
| 36 |
530016357 |
Screw Price: $1.99 |
| 37 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 39 |
530015162 |
Wrist Pin Retainer Price: $1.99 |
| 40 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 42 |
530015953 |
Screw Price: $1.99 |
| 43 |
530012500 |
Cylinder Price: $12.99 |
| 44 |
952030249 |
Spark Plug (RCJ6Y) Price: Call Us |
| 45 |
530071472 |
GasketMuffler kit) Price: $6.99 |
| 47 |
530016338 |
BoltMuffler Price: $1.99 |
| 48 |
530071544 |
KitSpark Aresstor Price: $6.99 |
