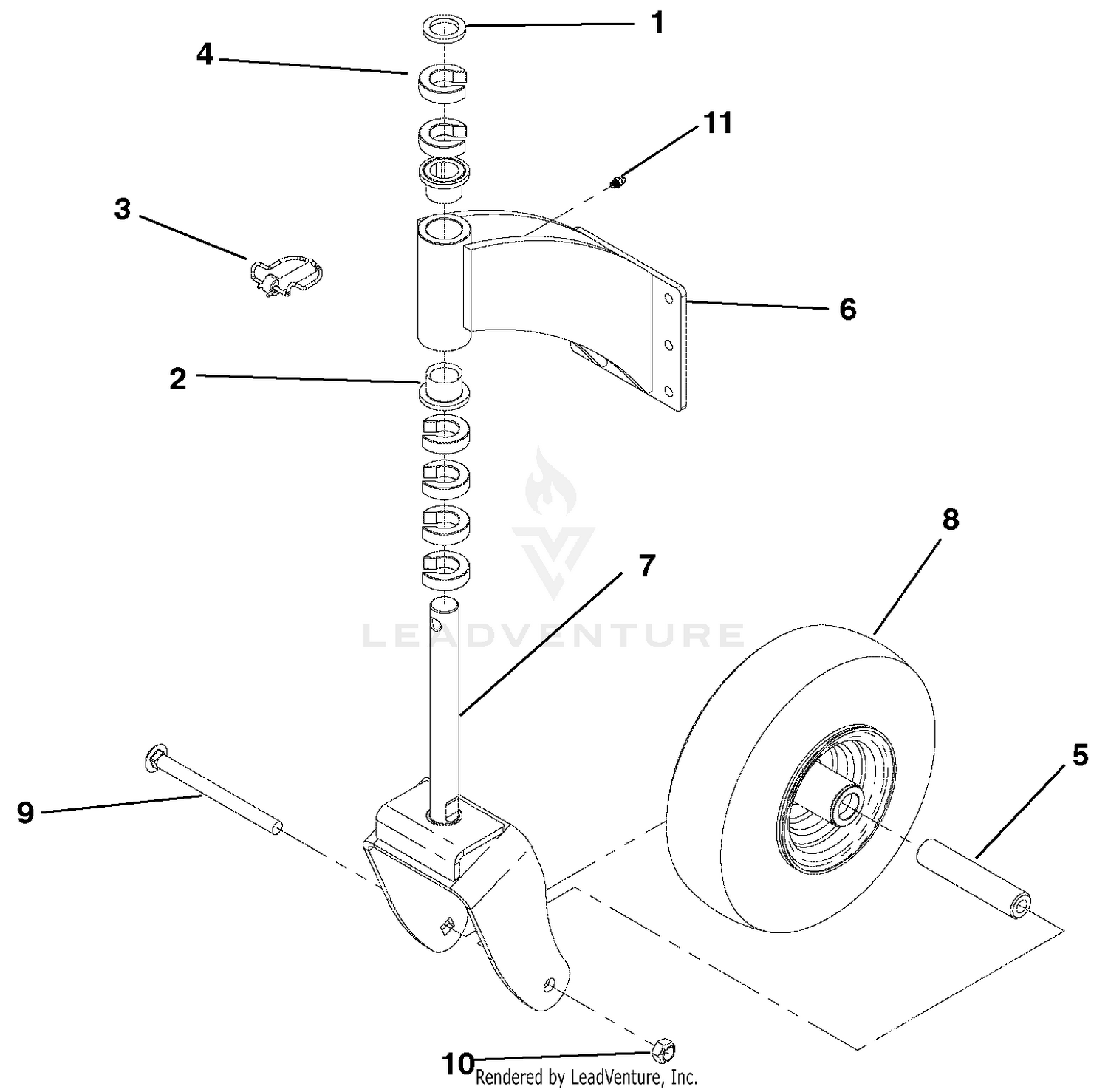

Wheel And Strut Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | D13008 | BUSHING, 1.03 X 1.50 X .179 Y Price: $8.95 |
| 2 | D18076 | BRG, FLG 1.00X1.25X1.00 Price: $6.45 |
| 3 | 00161397 | PIN, KLIK .438X2.00 Price: $8.45 |
| 4 | 00164145 | C-SPACER, 1.00 X 1.77 X .500 Price: $3.45 |
| 5 | 00191049 | TUBE, RD 1.00X.500X4.76 Price: $40.95 |
| 6 | 00201306 | WLDT, CASTER MOUNT BRKT GRAVLY Price: $71.95 |
| 7 | 00201309 | WLDT, FR WHEEL FORK GRAVELY Price: $162.95 |
| 8 | 00200778 | WHEEL, FRONT 11X4X5 Price: $101.95 |
| 10 | AA964000 | LOCKNUT, 1/2-13 CROWN Y Price: Call Us |
