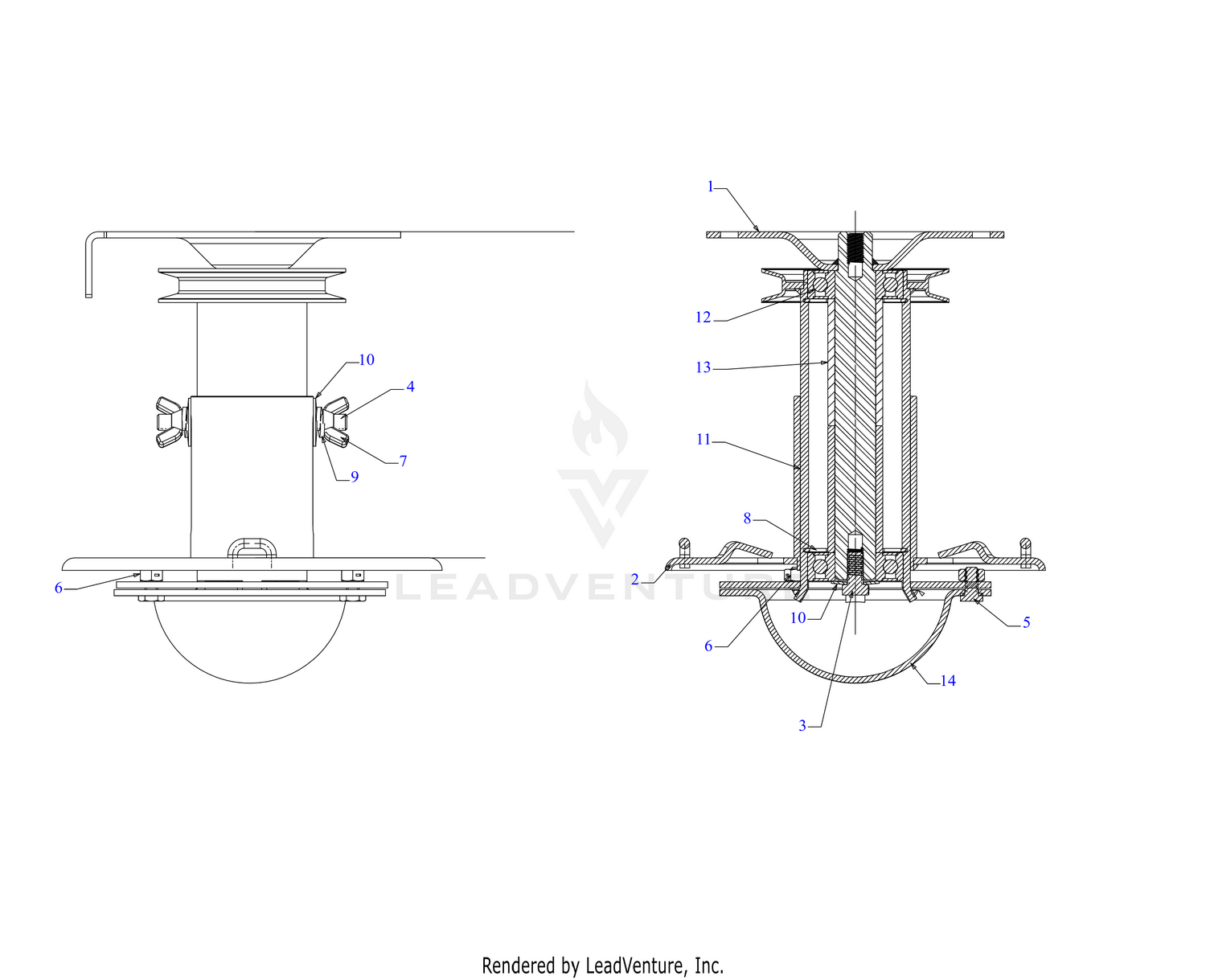

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
NOT SERVICEABLE |
| 2 |
N/A |
NOT SERVICEABLE |
| 3 |
710-0170 |
HEX SCREW 5/16-24 x .62 Price: $5.72 |
| 4 |
N/A |
NOT SERVICEABLE |
| 5 |
710-3013 |
SCREW 1/4-20X.5 GR5 Price: $4.02 |
| 6 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 912-0291. Price: $3.93 |
| 7 |
712-0698 |
WING NUT 5/16-24 Not Available Price: |
| 8 |
716-04102 |
RETAINING RING Price: $3.85 |
| 9 |
936-0119 |
LOCK WASHER 5/16 Price: $4.29 |
| 10 |
736-0425 |
Bell Washer .325 ID x .930 OD This part replaces 936-0425. Price: $3.95 |
| 11 |
N/A |
NOT SERVICEABLE |
| 12 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 13 |
N/A |
NOT SERVICEABLE |
| 14 |
982-0143A |
SKID ASSEMBLY Price: $32.08 |
