Home / OPE / Engines / 21549142 - Ariens 159cc Vert. ES / 915160 (035000 - ) ZT XL 42 / Engine, Exhaust, Belts And Idlers

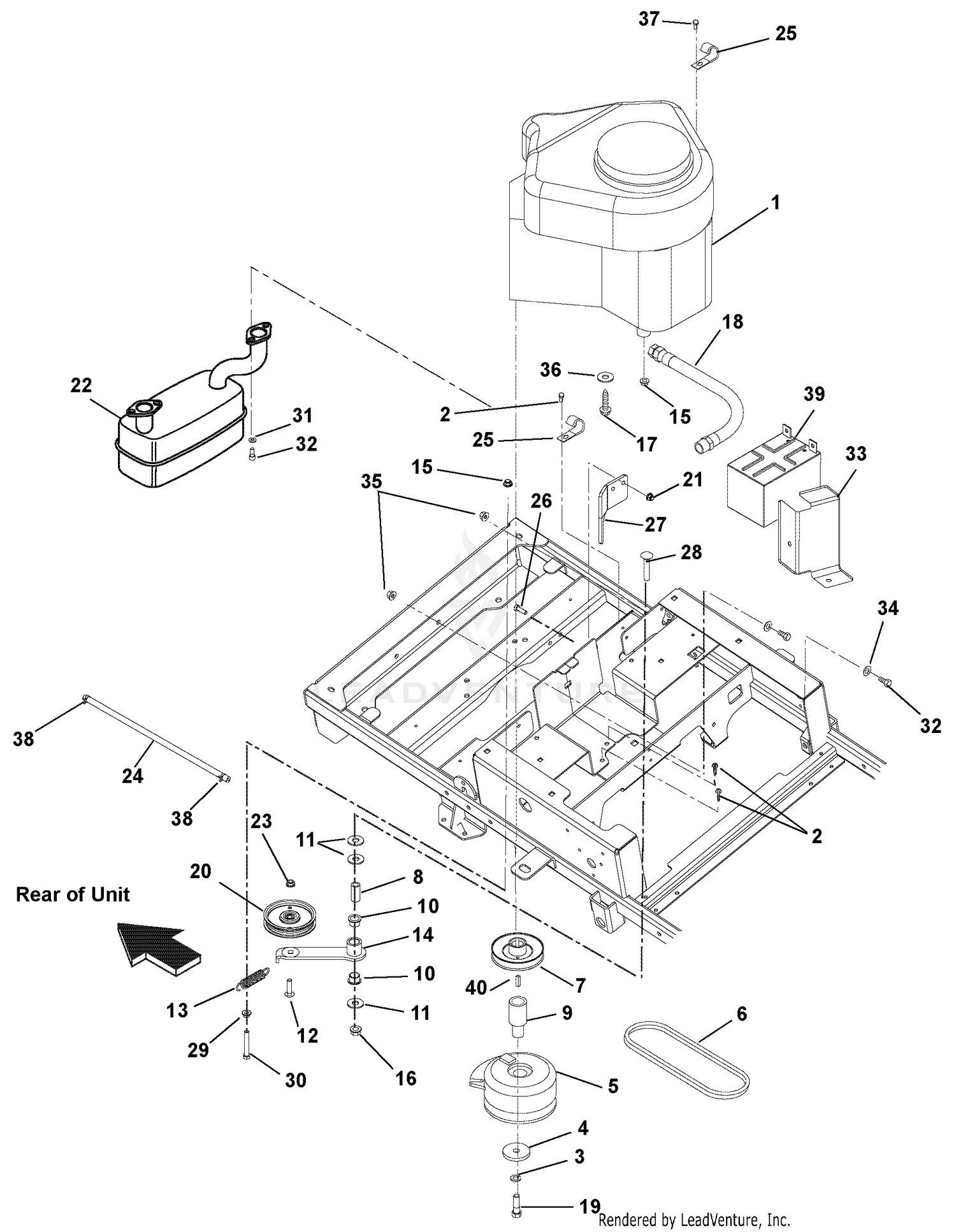

Engine, Exhaust, Belts And Idlers

Engine, Exhaust, Belts And Idlers

Parts (34)

RefPart NumberDescription
2 07400125 SCR,TAP .25-20X.375 HWH TR ZCC This part replaces 07411600. Price: $0.95
3 06300121 WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45
4 06401111 WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95
6 07242200 V-BELT, HA-WRAPPED Price: $43.95
7 07336567 PULLEY, V-1" ID X 4.50" OD Price: $86.95
8 05516400 BSHG-SLV .500X.750X1.560 Price: $5.45
9 02996000 EXT-CRANKSHAFT LOWER Price: $71.45
10 05500039 BSHG-FLG 0.75X0.875X.625X1.125 Price: $6.95
11 06401012 WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45
12 06200416 BLT, RHSN .38-16X1.50 G5 ZCC This part replaces 06224200. Price: $3.95
13 08311700 SG-TENS .105X.812X3.88 WLD 15 Price: $7.95
14 02003800 WMT, GROUND DRIVE IDLER ARM Price: $59.95
15 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
16 06500907 NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45
17 05901507 BLT-HEX.38-16X1.25FTHG5 EP80YZ This part replaces 05900125. Price: $2.45
18 03844200 OIL DRAIN HOSE Price: $20.45
19 05901821 BLT, HEX .44-20X4.50 G8 ZCC This part replaces 05966700. Price: $6.45
20 07300101 ASM, 4" IDLER (.75 WIDE) Price: $56.45
21 06500809 NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45
23 06500822 NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95
25 06916000 J-CLAMP Price: $2.45
26 05901701 BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45
27 03260051 CLUTCH STOP Price: $18.45
29 06500735 NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45
30 05901812 BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45
31 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
32 05901716 BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95
33 04593051 BRKT, BATTERY HOLDER Price: $19.45
34 06401001 WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45
35 06500921 NUT-KEPS .250-20 ZCC This part replaces 06509200. Price: $1.45
36 06401013 WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95
37 05901702 BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45
38 03278800 CLAMP, FUEL LINE Price: $0.95
39 04738800 BATTERY, 12V 12A-190CCA This part replaces 04591900. Price: $114.95
