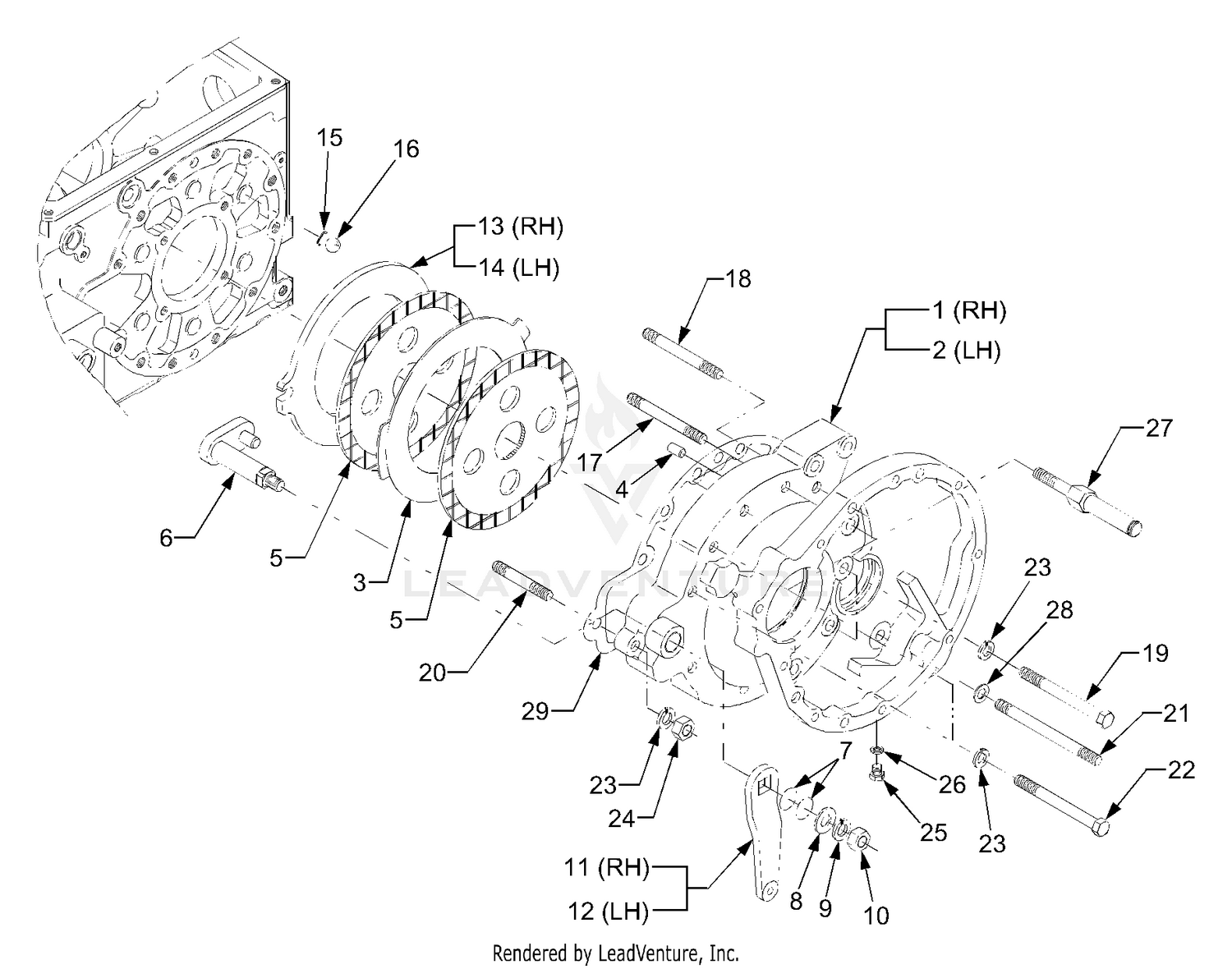

Brake Case Group
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 596135701 | GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 1 | DD-T4240-28134 | HOUSING (LH) BRAKE Not Available Price: |
| 2 | DD-T4240-28155 | BRAKE HOUSING (RH) Not Available This part replaces DD-T4240-28154. Price: |
| 3 | 532008393 | STAKE PIN TI Price: $19.99 |
| 3 | DD-T2440-28182 | BRAKE PLATE Not Available Price: |
| 4 | 812000035 | RING, KLIP Price: $3.99 |
| 4 | DD-37305-28171 | BRAKE HOUSING PIN Not Available Price: |
| 5 | 595901601 | GSPW Bolts This part replaces 532180847. Price: $2.99 |
| 5 | DD-T2440-28202 | DISC-BRAKE Not Available Price: |
| 6 | 532008394 | SPRING TI Price: $7.99 |
| 6 | DD-38435-28213 | BRAKE LEVER CAM Not Available Price: |
| 7 | 532008392 | BRACKET.LATCH.STAKE.3.20.BLACK Price: $4.99 |
| 7 | DD-04811-00220 | O-RING Not Available Price: |
| 8 | 532109230 | SPRING CRT Price: $4.99 |
| 8 | DD-04013-50140 | FLAT WASHER Not Available Price: |
| 9 | 532446449 | SHIELD.TILLER.TINE.CRT14.ORNG Price: $49.99 |
| 9 | DD-04512-50140 | LOCK WASHER Not Available Price: |
| 10 | DD-02176-50140 | HEX NUT Not Available Price: |
| 11 | DD-T2610-28223 | BRAKE LEVER CAM (RH) Not Available Price: |
| 12 | DD-T2610-28232 | BRAKE LEVER CAM (LH) Not Available Price: |
| 13 | 872110510 | BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 13 | DD-T2240-28272 | PLATE-BRAKE CAM (RH) Not Available Price: |
| 14 | 584459301 | BRACKET.TINE.SHIELD.BLACK This part replaces 532124343. Price: $32.99 |
| 14 | DD-T4125-28241 | BRAKE CAM PLATE (LH) Not Available This part replaces DD-T2240-28242. Price: |
| 15 | DD-37150-28253 | BALL SEAT Not Available Price: |
| 16 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 16 | DD-07715-00805 | STEEL BALL Not Available Price: |
| 17 | DD-37150-27352 | BRAKE HOUSING STUD Not Available Price: |
| 18 | 872040410 | BOLT Price: $3.99 |
| 18 | DD-32435-27362 | BRAKE HOUSING STUD Not Available Price: |
| 19 | 532102701 | GRIP CRT Price: $9.99 |
| 19 | DD-01176-51260 | HEX BOLT Not Available Price: |
| 20 | 873220600 | NUT.HEX.3/8-16UNC Price: $4.99 |
| 20 | DD-01574-51235 | STUD Not Available Price: |
| 21 | 531154801 | SERVICE KIT STAKE STAKE.DEPTH. This part replaces 532102156. Price: $8.99 |
| 21 | DD-01574-51285 | STUD Not Available Price: |
| 22 | 874930632 | BOLT.375-16 Price: $5.99 |
| 22 | DD-01173-51260 | HEX BOLT Not Available Price: |
| 23 | 532004440 | HINGE CRT Price: $3.99 |
| 23 | DD-04512-50120 | LOCK WASHER Not Available Price: |
| 24 | 596133401 | Bolts This part replaces 872140404. Price: $1.99 |
| 24 | DD-02176-50120 | HEX NUT Not Available Price: |
| 25 | 532006712 | VINYL CAP This part replaces 532124717. Price: $3.99 |
| 25 | DD-34150-14261 | DRAIN PLUG Not Available Price: |
| 26 | 532109227 | PAD IDLER TI Price: $3.99 |
| 26 | DD-04717-02150 | SEAL WASHER Not Available Price: |
| 27 | 532446452 | SHIELD.PNT.LEVEL.CRT.14.ORANGE Price: $19.99 |
| 27 | DD-T2610-60562 | SHAFT-LEVER PIVOT Not Available Price: |
| 28 | 532120588 | PIN.HINGE.TILLER Price: $6.99 |
| 28 | DD-T2440-28192 | GASKET Not Available Price: |
| 29 | 585414301 | KIT.TILLER.SIDE.SHIELD.BLACK This part replaces 532440449. Price: $37.99 |
| 30 | 596040501 | Hardware This part replaces 873970500. Price: $2.99 |
| 32 | 532050675 | NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 33 | 596029801 | WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
