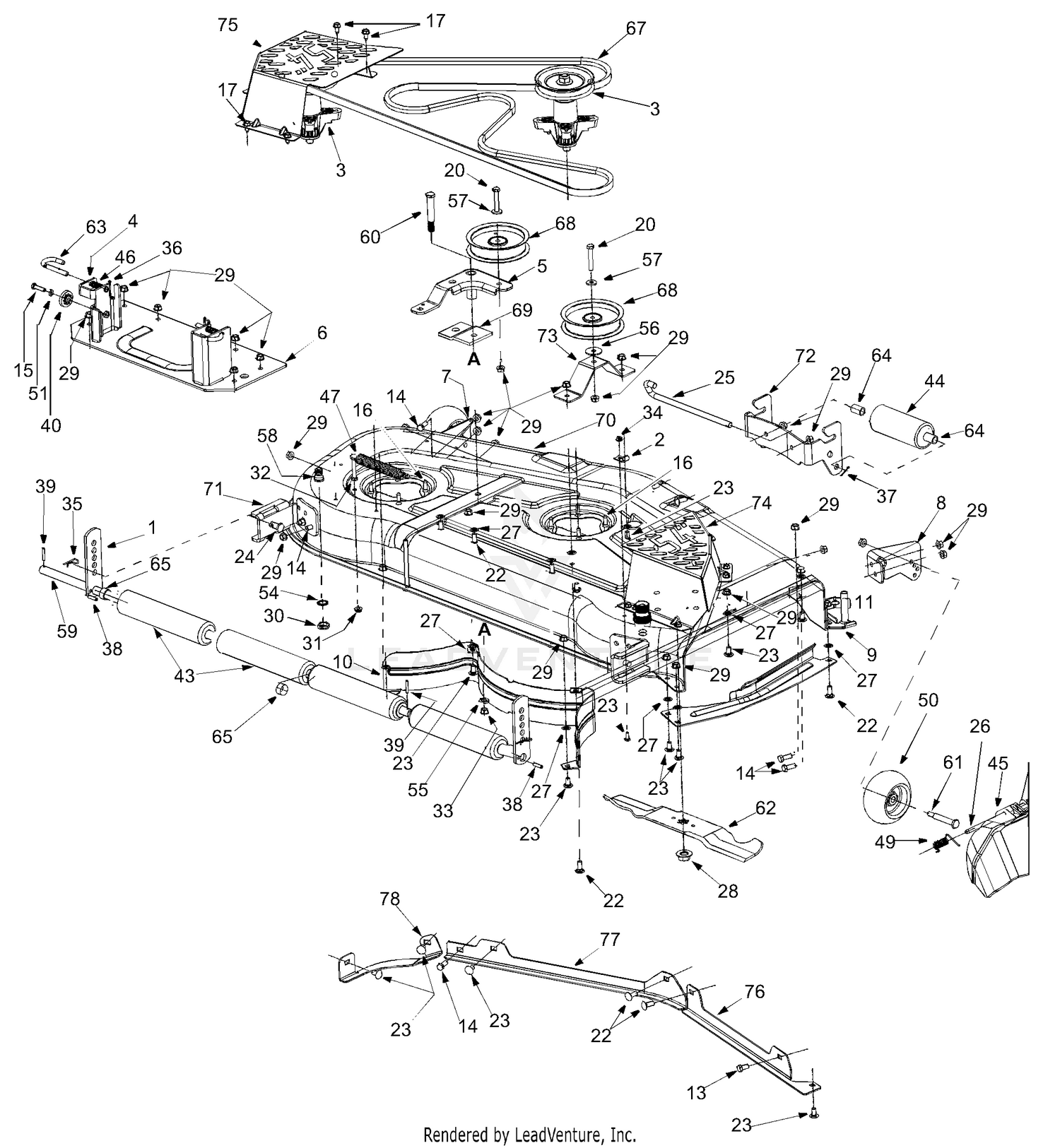

| Ref | Part Number | Description |
|---|
| 1 |
12650 |
Bracket, Adjustment, Height Price: $31.14 |
| 2 |
96606 |
Retainer Hook Bracket This part replaces 16606. Price: $6.71 |
| 3 |
918-04608A |
Deck Spindles This part replaces 618-0671. Price: $142.94 |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254. Price: |
| 5 |
683-0459 |
Idlr Assembly, 54" Price: $53.05 |
| 6 |
683-0608B |
LIFT BRACKET ASSEMBLY Not Available This part replaces 683-0608. Price: |
| 7 |
683-0609 |
BRACKET ASSEMBLY (LH) Not Available Price: |
| 8 |
683-0610 |
BRACKET ASSEMBLY (RH) Not Available Price: |
| 9 |
683-0617A-0637 |
Chute Stop Bracket This part replaces 683-0617. Price: $60.14 |
| 10 |
703-2093C |
Inner Baffle This part replaces 703-2093. Price: $78.85 |
| 13 |
710-0216 |
Hex Screw 3/8-16 x 0.75 Price: $3.93 |
| 14 |
710-0514 |
Hex Screw 3/8-16 x 1.0 Price: $3.78 |
| 15 |
710-0528 |
Hex Screw, 5/16-18 x 1.25 Price: $3.90 |
| 16 |
710-1260A |
LD Screw 5/16-18 x 0.75 Price: $3.34 |
| 17 |
710-0726 |
AB Screw 5/16-12 x 0.75 Price: $3.82 |
| 20 |
710-3011 |
Hex Screw, 3/8-16 x 2.25 Price: $6.49 |
| 21 |
710-0395 |
Screw-Hex 5/16-18 This part replaces 710-3073. Price: $4.08 |
| 22 |
710-3168 |
Bolt, Carriage, 3/8-16 x 1.0 Price: $3.61 |
| 23 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 24 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
| 25 |
711-1737 |
ROLLER PIN .5"DIAX10.06" Not Available Price: |
| 26 |
711-1762 |
HINGE PIN .375DIA x 14.06 Not Available Price: |
| 27 |
712-0229 |
Push Nut Retainer Price: $3.14 |
| 28 |
712-0417A |
HEX NUT Price: $6.50 |
| 29 |
712-0130 |
Nut, Lock, 3/8-16 Price: $3.61 |
| 30 |
712-0641 |
Hex Nut M16 Price: $5.58 |
| 31 |
712-0429 |
Nut, Flange Lock, 5/16-18 Price: $3.56 |
| 32 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 33 |
712-3022 |
Nut, Hex Lock, 1/2-13 Price: $3.61 |
| 35 |
714-0145 |
Pin, Click, .092 x 1.64 Price: $4.42 |
| 36 |
714-0470 |
Pin, Cotter, 1/8 x 1.25 Price: $3.90 |
| 37 |
714-3004 |
Pin, Cotter, 3/32 x 1.25 Price: $4.20 |
| 38 |
715-0108 |
Pin, Spring 1/4 Dia x 1.00 Price: $4.38 |
| 39 |
714-0162 |
Cotter Pin Price: $4.29 |
| 40 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-1553B. Price: $11.45 |
| 41 |
921-04041 |
WATER NOZZLE This part replaces 721-04041. Price: $20.19 |
| 43 |
731-0335 |
Roller, Deck Price: $63.49 |
| 44 |
731-3005 |
Front Roller Price: $26.47 |
| 45 |
931-3131A |
Deflector, Chute This part replaces 731-3131A. Price: $95.01 |
| 46 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 47 |
732-0459C |
Spring, Extension, .94 Dia x 6.74 This part replaces 732-0459. Price: $16.05 |
| 48 |
732-0934 |
Spring, Extension, 1.15 Dia x 5.99 Price: $10.43 |
| 49 |
732-3070A |
Torsion Spring .44 I.d. x 2.10 This part replaces 732-3070. Price: $10.13 |
| 50 |
753-04856A |
Deck Wheel, 5" Dia. This part replaces 734-04039. Price: $18.23 |
| 51 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 54 |
736-0760 |
Lock Washer Price: $3.86 |
| 55 |
736-0921 |
Lock Washer Price: $3.90 |
| 56 |
736-3039 |
Flat Washer .406 ID X 1.5 x 11ga Price: $4.42 |
| 57 |
736-3072 |
Washer, Flat .38 ID x.93 OD x.110 Price: $4.11 |
| 58 |
737-04003D |
DECK WASH NOZZLE This part replaces 737-04003B. Price: $20.69 |
| 59 |
738-0295 |
Shoulder Screw, .750 x .47.12 Price: $109.39 |
| 60 |
738-1229A |
Shoulder Screw Price: $11.65 |
| 61 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 62 |
942-0677B |
Blade, 18.50" This part replaces 742-0677. Price: $28.62 |
| 63 |
747-1116 |
Deck Release Handle Rod, .375 Dia Price: $11.17 |
| 64 |
950-0151 |
Spacer .550 ID x .755 OD x 1.1 This part replaces 750-0151. Price: $9.70 |
| 65 |
750-0212 |
Spacer, .82 ID x 1.00 OD x .53 Price: $9.97 |
| 67 |
954-0642 |
Belt, V-Type, B Section This part replaces 754-0642. Price: $76.31 |
| 68 |
756-3105 |
Pulley, Idler, 5.0 Dia. Price: $68.58 |
| 69 |
783-04013A |
Bracket, Stabilizing Price: $16.59 |
| 71 |
783-1453 |
ROLLER MOUNT BRACKET Not Available Price: |
| 72 |
783-1454D |
Bracket, Roller, Front This part replaces 783-1454. Price: $40.63 |
| 73 |
783-1455 |
IDLER BRACKET Not Available Price: |
| 74 |
783-1470 |
Cover, Spindle RH Price: $76.67 |
| 75 |
783-1471A |
Cover, Spindle LH This part replaces 783-1471. Price: $61.44 |
| 76 |
783-1482-0637 |
DECK SKIRT-54" (RH) Not Available This part replaces 783-1482. Price: |
| 77 |
783-1483-0637 |
DECK SKIRT-54" (LH) Not Available This part replaces 783-1483. Price: |
| 78 |
783-1484-0637 |
LH Extension Skirt Not Available This part replaces 783-1484. Price: |
