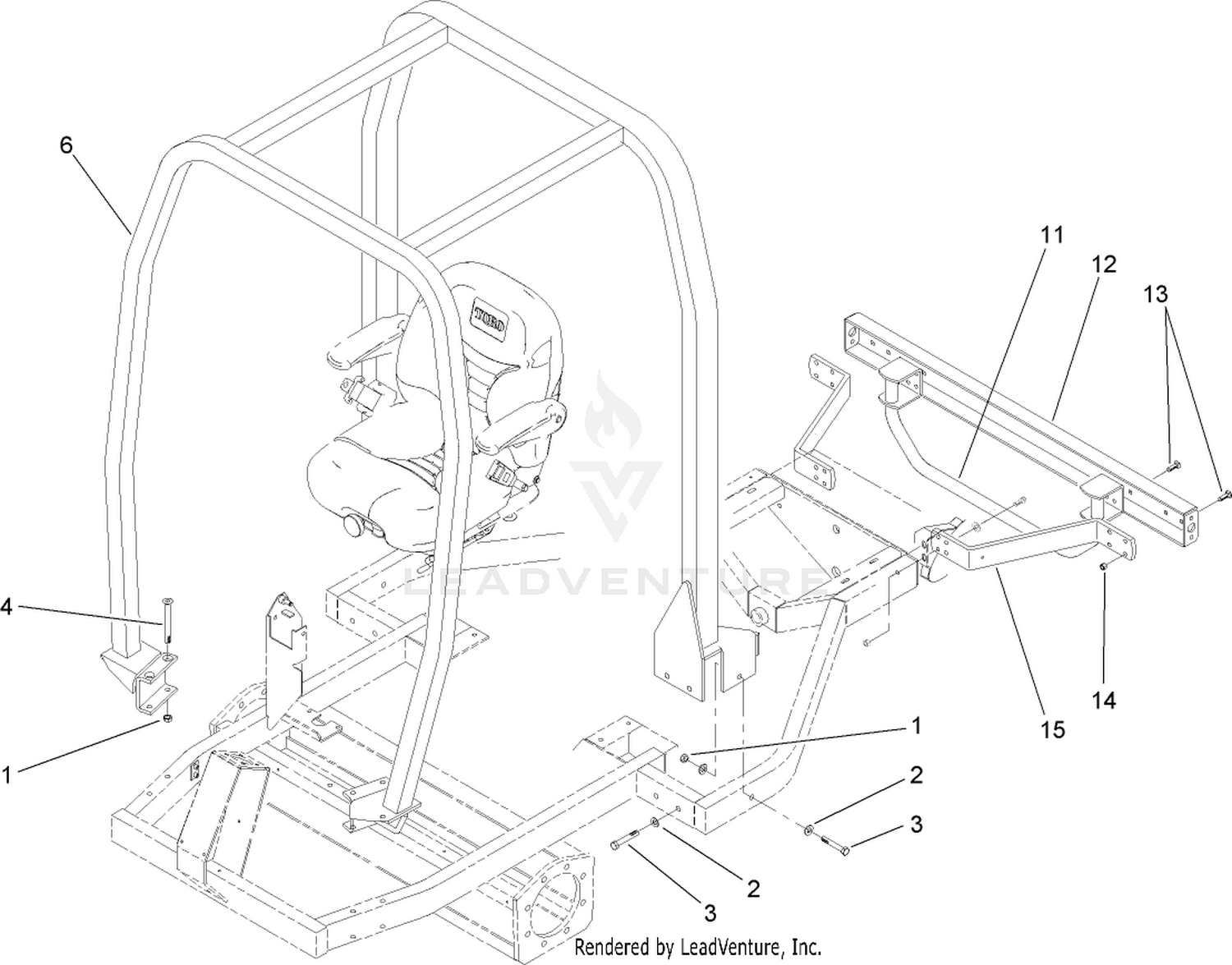

Roll-Over Protection System Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 2 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 3 | 325-12 | SCREW-HH Price: $2.27 |
| 4 | 3289-25 | SCREW-SFH Price: $25.39 |
| 6 | 92-2987-03 | ROPS ASM Price: $3,178.31 |
| 11 | 92-6050-03 | GUARD ASM Price: $204.68 |
| 12 | 92-6052-03 | BUMPER-REAR Price: $95.54 |
| 13 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 14 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
