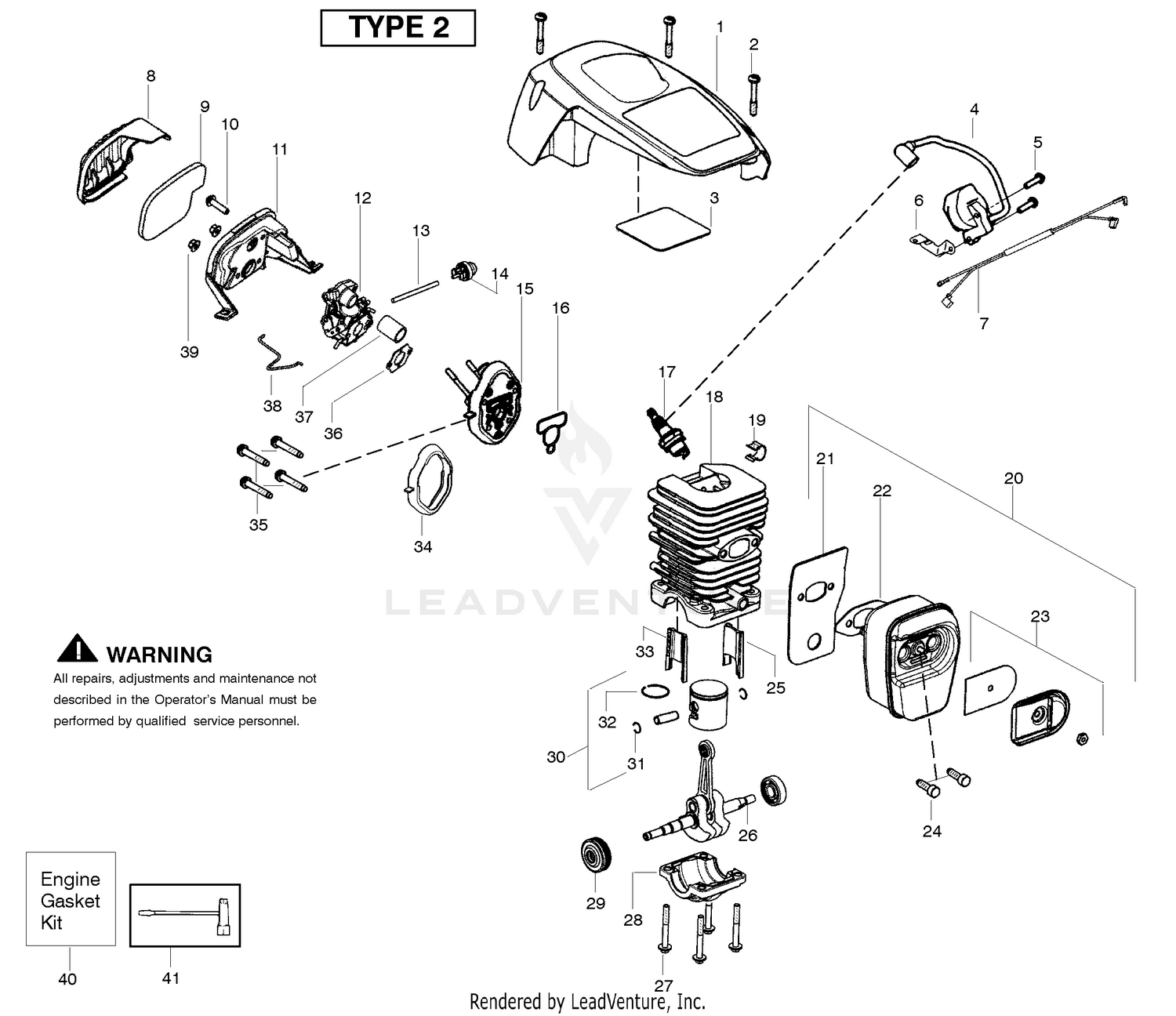

| Ref | Part Number | Description |
|---|
| 0 |
631794A |
SERVICE CARB This part replaces 632609. Price: $81.98 |
| 1 |
631615 |
SHAFT & LEV Price: $6.48 |
| 2 |
120-2595 |
VALVE-SOLENOID Price: $275.77 |
| 2 |
530016153 |
Screw Price: $1.99 |
| 2 |
631767 |
SPRING Price: $1.25 |
| 3 |
120-2596 |
COIL-12VDC Price: $91.49 |
| 3 |
530059006 |
Reflector-Tape Price: $1.99 |
| 4 |
530039198 |
Module - Ignition Price: $29.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
530016432 |
Screw Price: $1.99 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
530047442 |
Strap-Ground Price: $1.99 |
| 6 |
631036 |
SHUTTER Price: $1.20 |
| 7 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
530058687 |
Cover-Air Filter Price: $4.99 |
| 9 |
530057925 |
Filter-Air Price: $0.99 |
| 10 |
530016425 |
Screw Price: $1.99 |
| 10 |
631538 |
SHAFT & LEV Price: $6.71 |
| 11 |
530057892 |
Housing-Air Filter Price: $4.99 |
| 11 |
632042 |
SPRING Price: $3.00 |
| 12 |
545070601 |
Carburetor Zama W-26 This part replaces 530035590. Price: $27.99 |
| 12 |
631184 |
WASHER Price: $1.25 |
| 13 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 13 |
631183 |
WASHER Price: $1.25 |
| 14 |
31837 |
SHUTTER Price: $1.18 |
| 14 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 16 |
631807 |
FUEL FITTING Price: $6.03 |
| 17 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 17 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 19 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 20 |
631838 |
ADJ SCREW Price: $2.71 |
| 21 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 21 |
630766 |
SPRING Price: $1.25 |
| 22 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 22 |
630739 |
WASHER Price: $1.25 |
| 23 |
545006056 |
Kit-Spark Arrestor Price: $6.99 |
| 23 |
630740 |
O RING Price: $1.49 |
| 24 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 25 |
545015301 |
Insert-Left (black) Cyl. This part replaces 530057885. Price: $2.99 |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 26 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $49.99 |
| 27 |
530016417 |
Bolt Price: $1.99 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 |
545015401 |
Insert-Right (gray) Cyl. This part replaces 530057886. Price: $2.99 |
| 34 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 35 |
530016426 |
Screw Price: $1.99 |
| 36 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 37 |
530057926 |
Tube-Intake Price: $1.99 |
| 38 |
530057909 |
Wire-Throttle Price: $1.99 |
| 39 |
530016101 |
Nut-Carb. Price: $1.99 |
| 40 |
31839 |
POWER SCREW Price: $10.89 |
| 41 |
530031163 |
Bar Wrench This part replaces 530031135. Price: $4.99 |
| 41 |
630740 |
O RING Price: $1.49 |
| 42 |
630739 |
WASHER Price: $1.25 |
| 43 |
630738 |
SPRING Price: $1.25 |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
