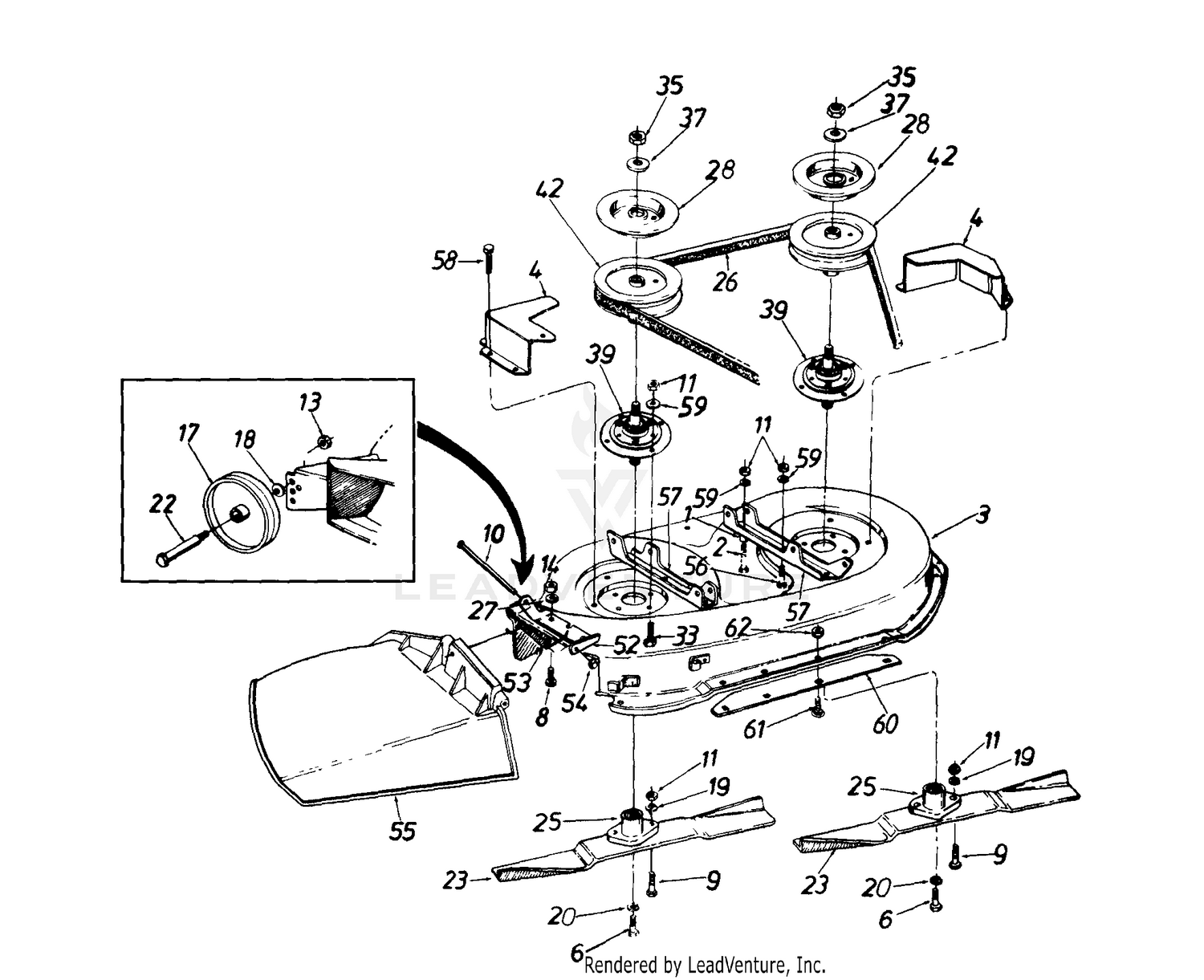

| Ref | Part Number | Description |
|---|
| 1 |
750-0776 |
SPACER .33" I D. x .88" Not Available Price: |
| 2 |
710-0672 |
Hex Bolt 5/16-24 x 1.25" Lg. Price: $3.85 |
| 3 |
17503B |
DECK ASSEMBLY K Not Available Price: |
| 4 |
17665-0637 |
BELT GUARD (POWDER BLACK) Not Available This part replaces 17665. Price: |
| 6 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 8 |
710-0258 |
Hex Bolt 1/4-20 x .62" Price: $3.63 |
| 9 |
710-0888 |
Hex Bolt Special 5/16-24 x 1.0" Price: $3.86 |
| 10 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 17 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 18 |
736-0105 |
Bell-Wash. .40" I.D. x .88" O.D. Price: $3.96 |
| 20 |
736-0217 |
L-Wash. 3/8" I.D. - H.D. Price: $3.86 |
| 25 |
748-0300 |
Blade Adapter Not Available Price: |
| 26 |
954-0329A |
V-Belt This part replaces 754-0433. Price: $48.63 |
| 27 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 28 |
09322 |
BRAKE DISC Not Available Price: |
| 33 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
| 35 |
712-0318 |
HEX JAM NUT 5/8-18 Not Available Price: |
| 39 |
753-05319 |
Blade Spindle Ass'y. Comp. This part replaces 717-0906. Price: $112.64 |
| 52 |
703-1693A |
Hinge Mtg. Brkt. This part replaces 7031693. Price: $20.29 |
| 53 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 54 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 56 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
| 57 |
17493B-0637 |
DECK HANGER BRACKET BLACK Not Available This part replaces 17493A. Price: |
| 58 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 59 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 60 |
17863 |
SKIRT-EXTENSION Not Available Price: |
| 61 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 17717B |
38" |
Deck Ass'y. w/o Deck Wheels Price: Call Us 17717B |
