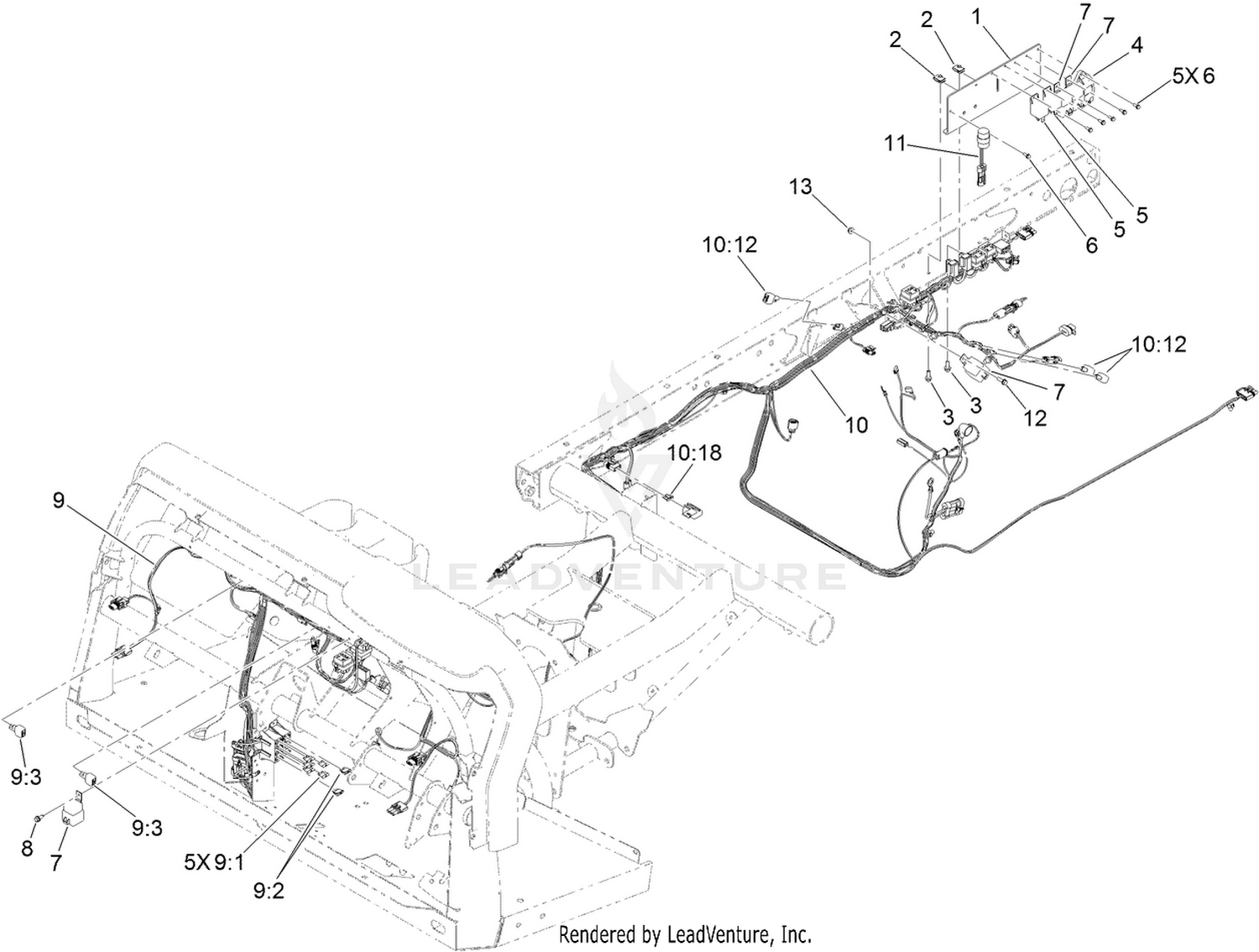

Front and Rear Wire Harness Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-2225 | BRACKET-RELAY Price: $50.26 |
| 2 | 107069 | CLIP Price: $1.79 |
| 3 | 3234-4 | SCREW-HHF Price: $0.50 |
| 4 | 98-7611 | CONTROLLER-GLOW Price: $316.53 |
| 5 | 99-7435 | RELAY Price: $32.43 |
| 6 | 32144-112 | SCREW-HWH Price: $0.99 |
| 7 | 99-7430 | RELAY-MINI Price: $22.99 |
| 8 | 32144-10 | SCREW-HWH Price: $4.29 |
| 9 | 120-5040 | HARNESS-WIRE, FRONT Price: $949.03 |
| 10 | 121-6594 | HARNESS-WIRE, REAR Price: $1,390.88 |
| 11 | 115-8133 | TIMER-DELAY Price: $364.69 |
| 12 | 32105-15 | SCREW-HWH Price: $1.79 |
