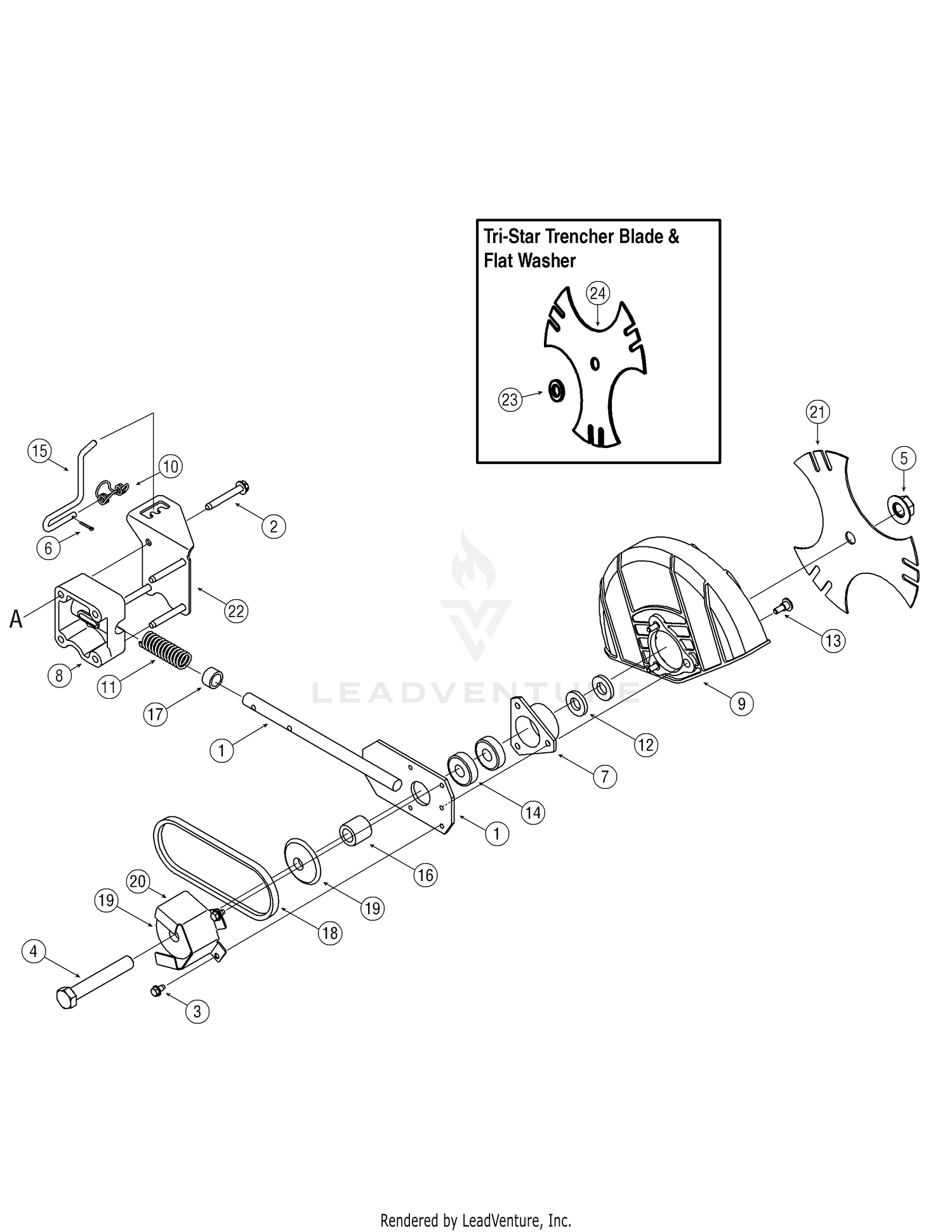

| Ref | Part Number | Description |
|---|
| 1 |
687-02126 |
Blade Plate Assembly Price: $49.22 |
| 2 |
710-04389 |
SCREW Price: $6.01 |
| 3 |
710-0599 |
Self-tapping Screw, 1/4-20 Price: $3.86 |
| 4 |
710-1143A |
Hex Screw, 5/8-18 Price: $10.02 |
| 5 |
712-0417A |
HEX NUT Price: $6.50 |
| 6 |
714-3010 |
Clevis Pin 3/32 x .625 Price: $4.08 |
| 7 |
718-04012 |
Bearing Cup Price: $19.55 |
| 8 |
931-04207 |
Bearing Block This part replaces 731-04207. Price: $24.30 |
| 9 |
731P05064 |
EDGER BLADE GUARD (W/LABEL) This part replaces 731-05064. Price: $23.87 |
| 10 |
732-0188A |
Double Torsion Spring Price: $11.77 |
| 11 |
932-04169 |
Compression Spring This part replaces 732-04169. Price: $9.41 |
| 12 |
736-04088 |
Flat Washer .635 x 1.24 x .181 Price: $3.90 |
| 13 |
738-0706D |
Screw This part replaces 738-0706C. Price: $3.89 |
| 14 |
941-0524A |
Bearing, Ball, .625 x 40 x 12 This part replaces 7410524. Price: $20.36 |
| 15 |
747-04110A |
Blade Adjustment Rod This part replaces 747-04110. Price: $15.95 |
| 16 |
950-04105 |
Spacer, .63 x 1.12 x 1.06 This part replaces 750-04105. Price: $13.42 |
| 17 |
750-0547 |
Spacer, .64 x.88 x .50 Price: $4.83 |
| 18 |
954-04032B |
V-Belt This part replaces 754-04032B. Price: $23.31 |
| 19 |
956-0449 |
Sheave This part replaces 756-0449. Price: $13.09 |
| 20 |
781-0427-0637 |
Belt Guard This part replaces 781-0427. Price: $19.06 |
| 21 |
781-0748 |
Tri-star Blade Price: $24.87 |
| 22 |
787-01081A |
Cover Plate Price: $4.31 |
| 23 |
736-04088 |
Flat Washer Price: $3.90 |
