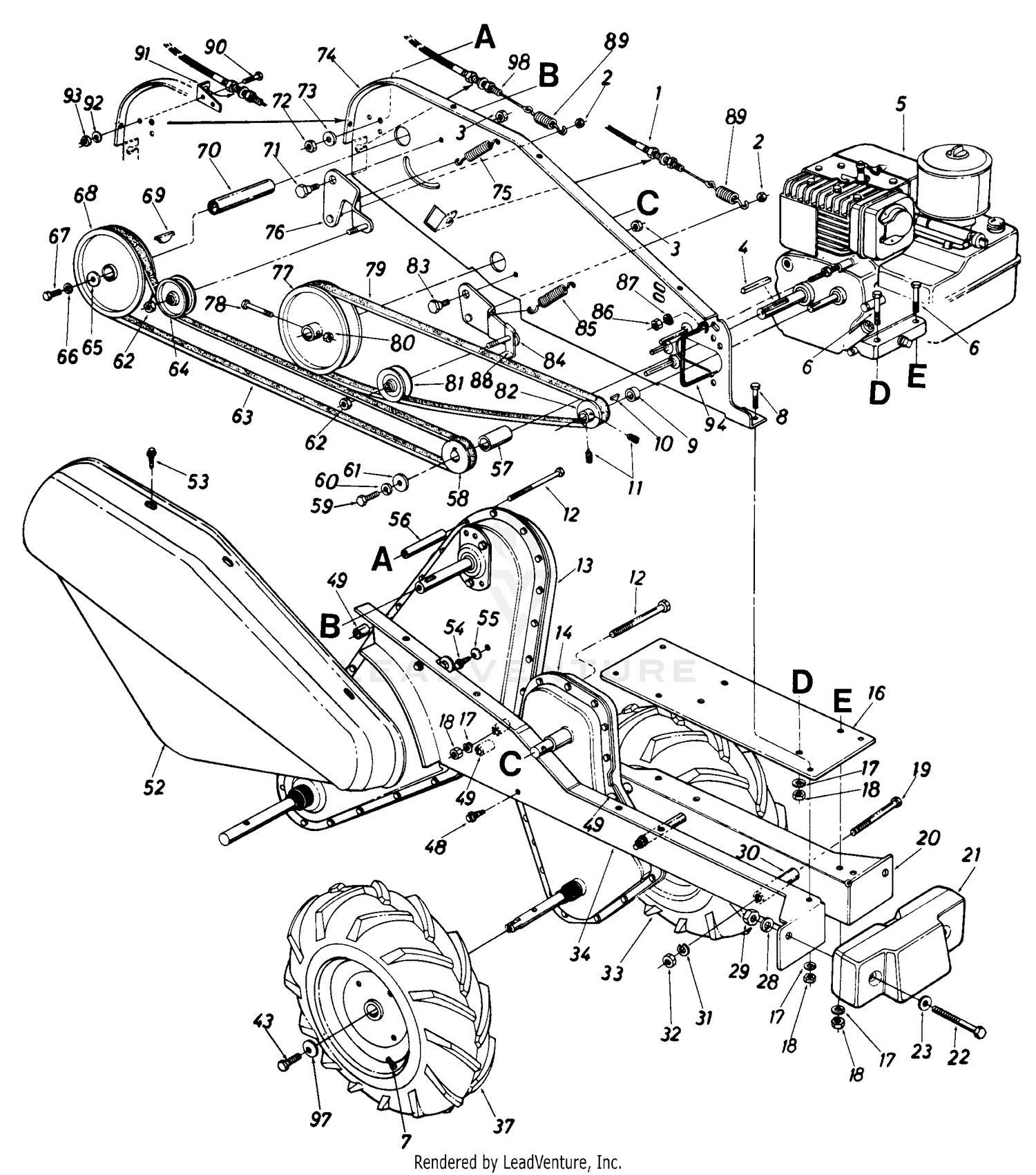

| Ref | Part Number | Description |
|---|
| 2 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 3 |
712-0266A |
JAM LOCK NUT This part replaces 712-0266. Price: $3.43 |
| 4 |
714-0122 |
Sq. Key 3/16" Dia. x .75 Price: $3.07 |
| 5 |
N/A |
Engine |
| 6 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 7 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 8 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 9 |
711-0494 |
SPACER Not Available Price: |
| 10 |
714-0131 |
KEY-HI-PRO #5-1/8X5/8 DIA Not Available Price: |
| 11 |
710-0938 |
SCREW-SET 1/4-28 x .25 Not Available Price: |
| 12 |
710-0189 |
Hex Bolt 5/16-18 x 3.0" Lg. Price: $5.30 |
| 13 |
14981 |
CHAIN CASE (TINES) Not Available Price: |
| 14 |
14963 |
Chain Case Ass'y. Comp.- Wheels Price: Call Us |
| 17 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 18 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 19 |
710-0830 |
HEX SCREW 3/8-24 x 3.0 LG Not Available Price: |
| 21 |
723-0340 |
COUNTERWEIGHT Not Available Price: |
| 22 |
710-0786 |
SCREW 1/2-13 X4.0 GR5 Not Available Price: |
| 23 |
736-0326 |
Fl-Wash. 1/2" I.D. x 1.0" O.D. Price: $3.89 |
| 28 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 29 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 30 |
750-0579 |
Spacer 3/8" I.D. x 618n O.D. x 2.18" Lg. Price: Call Us |
| 31 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 32 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 33 |
734-1377 |
WHEEL ASSEMBLY W/TIRE (LH) Not Available Price: |
| 34 |
14974 |
FRAME RAI I-R.H. Not Available Price: |
| 37 |
734-1378 |
Comp. Wheel Ass'y.-R.H. Price: Call Us |
| 43 |
710-0237 |
Hex Bolt 5/16-24 x .62n Lg. Price: $3.93 |
| 48 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 49 |
750-0470 |
Spacer 5/16" I.D. x 16 Ga. x.96" Lg. Price: $5.99 |
| 52 |
14980A |
BELT COVER Not Available Price: |
| 53 |
710-0599 |
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. Price: $3.86 |
| 54 |
710-0653 |
Hex Wash. S-Tap Scr. 1/4-20 x 3/8" Lg. Price: $3.78 |
| 55 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 56 |
750-0219 |
Spacer 3/8" I.D. x 1/2" O.D. x 2.0" Lg. Price: Call Us |
| 57 |
750-0442 |
SPACER Not Available Price: |
| 58 |
756-0396 |
PULLEY Not Available Price: |
| 59 |
710-0888 |
Hex Bolt 5/16-24 x 1" Lg. This part replaces 710-0117. Price: $3.86 |
| 60 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 61 |
736-0343 |
Fl-Wash. 5/16" I.D. x 1.25" O.D. Price: $3.90 |
| 62 |
712-0116 |
Hex L-Nut 3/8-24 Thd. Price: $3.95 |
| 63 |
954-0195A |
V-Belt 1/2" X 54.0" Lg. This part replaces 754-0195A. Price: $47.69 |
| 64 |
756-0405 |
Fl-Idler Pulley 3.75" O.D. x 3/8" I.D. Price: $66.84 |
| 65 |
736-0176 |
Fl-Wash. .25" I.D. x .93" O.D. x .120 Price: $3.95 |
| 66 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 67 |
710-0412 |
Hex Bolt 1/4-28 x .75" Lg. Price: $4.95 |
| 68 |
756-0389A |
PULLEY Not Available Price: |
| 70 |
750-0472 |
SPACER Not Available Price: |
| 71 |
738-0183 |
SHOULDER SCREW Not Available Price: |
| 72 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 73 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 74 |
784-0100 |
Side Plate Ass'y. Price: Call Us |
| 75 |
732-0445 |
EXTENSION SPRING Not Available Price: |
| 76 |
14971 |
Idler Bracket Ass'y.-Tines Price: Call Us |
| 77 |
756-0387A |
Pulley 6n Dia. x 5/8n I.D. Price: Call Us |
| 78 |
710-0698 |
SCREW 1/4-28 x 1.50 GR5 Not Available Price: |
| 79 |
954-0109 |
V-Belt 1/2" X 43.0" Lg. This part replaces 754-0109. Price: $36.90 |
| 80 |
712-0117 |
HEX NUT Not Available Price: |
| 81 |
756-1035A |
Idler Pulley This part replaces 756-0166. Price: $30.37 |
| 82 |
756-0386A |
PULLEY Not Available Price: |
| 83 |
738-0147 |
SHOULDER SCREW .500 DIA x .170 Not Available Price: |
| 84 |
14969 |
BRACKET AS Not Available Price: |
| 85 |
732-0445 |
EXTENSION SPRING Not Available Price: |
| 86 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 87 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 88 |
15399 |
BRACKET-BE Not Available Price: |
| 89 |
732-0387 |
EXTENSION SPRING Not Available Price: |
| 90 |
710-0118 |
Hex Bolt 5/16-18 x 75n* Price: $3.76 |
| 91 |
15093C |
BRACKET-CL Not Available Price: |
| 92 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 93 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 94 |
747-0507 |
Belt Keeper Price: Call Us |
| 97 |
736-0242 |
Bell-Wash. 5/16" I.D. Price: $3.75 |
