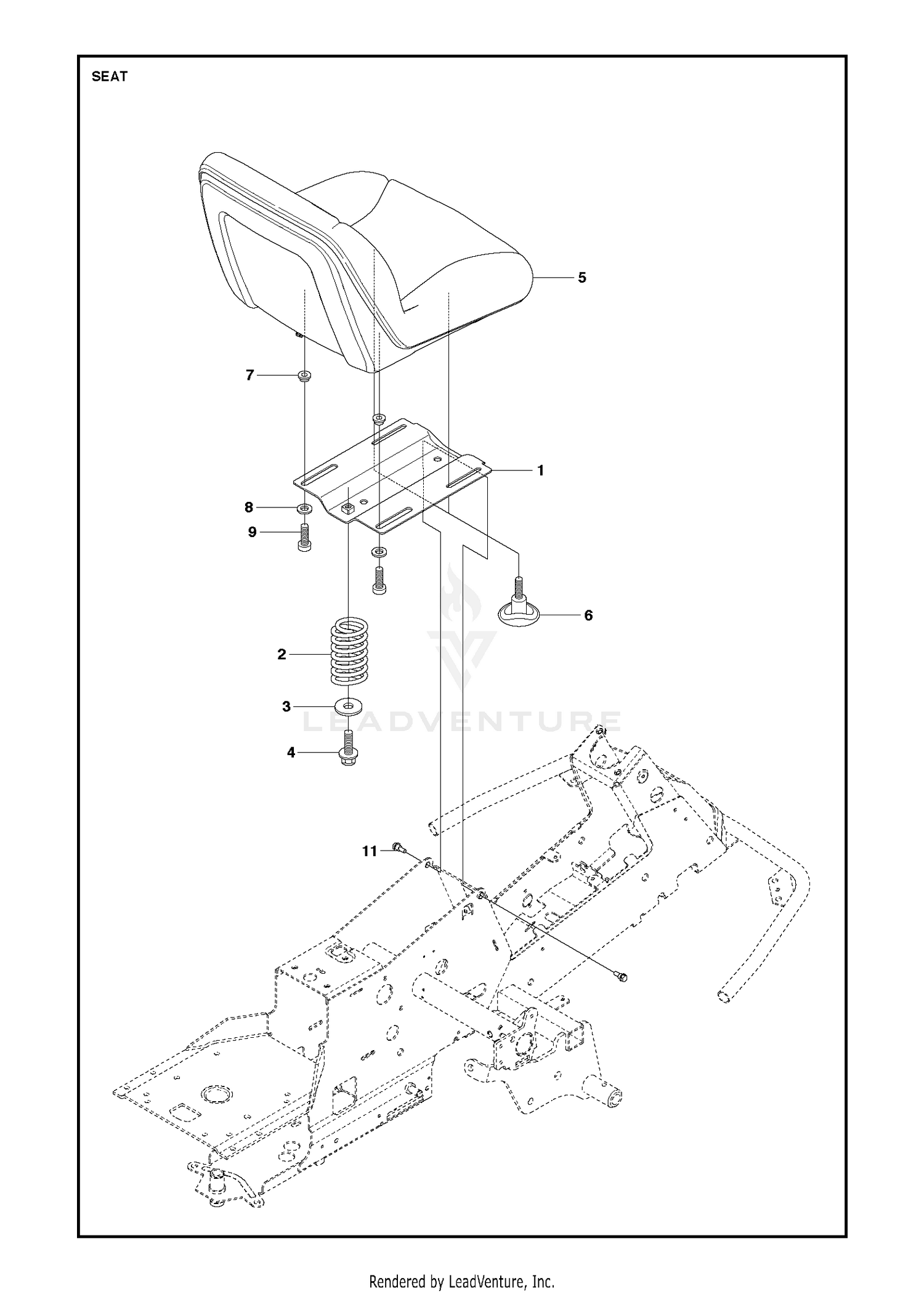

SEAT
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-4559 | SCREW-BHCS Price: $1.49 |
| 1 | 573995003 | SEAT BRACKET Price: $49.99 |
| 2 | 115-4779 | COVER-MOTOR Price: $107.68 |
| 2 | 506915301 | SEAT SPRING Price: $17.99 |
| 3 | 112-9609 | O-RING Price: $4.89 |
| 3 | 734117441 | WASHER Price: $3.99 |
| 4 | 112-5163 | WASHER-WAVE Price: $4.27 |
| 4 | 725249371 | Screw M10x25 Price: $1.82 |
| 5 | 587605301 | SEAT ASSY KIT LOW HVA This part replaces 544433301. Price: $179.99 |
| 6 | 119-7450 | ROTOR ASM Price: $954.12 |
| 6 | 585065201 | KNOB This part replaces 506565501. Price: $17.99 |
| 7 | 506565301 | WASHER Price: $4.99 |
| 8 | 112-9616 | O-RING Price: $1.77 |
| 8 | 734116441 | SPACER Price: $3.99 |
| 11 | 506597401 | BOLT Price: $5.99 |
| 14 | 112-9611 | O-RING Price: $6.17 |
| 15 | 115-4782 | OUTPUT GEAR ASM Price: Call Us |
| 16 | 115-4777 | COVER-GEARBOX Price: $126.85 |
| 18 | 119-1156 | O-RING Price: $2.61 |
| 19 | 119-7451 | SEAL-OIL Price: $10.39 |
| 29 | 136-8595 | GREASE-SYNTHETIC Price: $29.51 |
