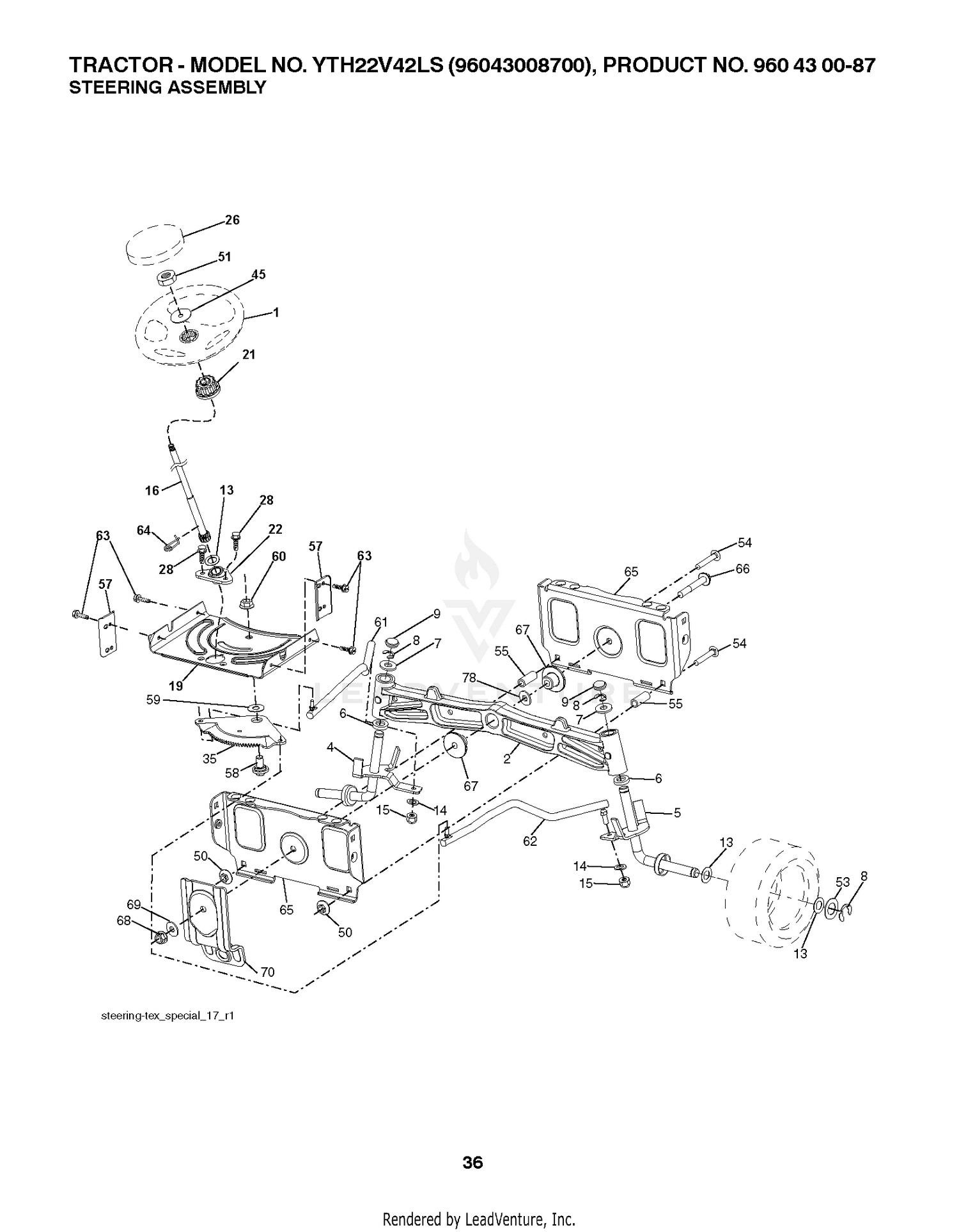

| Ref | Part Number | Description |
|---|
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD This part replaces 532416480. Price: $69.99 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
127-0495 |
STARTER ASM Price: $920.85 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
100-2181 |
STARTER YOKE ASM Price: $102.34 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
100-2222 |
HOLDER ASM Price: $23.90 |
| 35 |
127-0415 |
SPRING-BRUSH Price: $4.65 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 40 |
100-2182 |
ARMATURE ASM Price: $204.81 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 45 |
98-9412 |
BEARING-BALL Price: $14.99 |
| 47 |
98-9411 |
BEARING-BALL Price: $14.99 |
| 50 |
100-2185 |
STARTER CLUTCH ASM Price: $148.04 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
874760636 |
BOLT Price: $4.99 |
| 55 |
532414736 |
SPACER.BRACE.AXLE Price: $5.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
127-0490 |
STARTER HOUSING ASM Price: $198.30 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 65 |
532194734 |
BRACE.AXLE.FRONT.NLT/N Price: $37.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
100-2183 |
BEARING Price: $2.78 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 78 |
532057079 |
THRUST WASHER Price: $1.99 |
| 80 |
127-0449 |
FRAME ASM Price: $122.82 |
| 90 |
100-2213 |
COVER Price: $5.38 |
| 100 |
100-2223 |
BEARING ASM Price: $19.21 |
| 105 |
127-0414 |
BEARING Price: $4.84 |
| 110 |
100-2187 |
STARTER SHAFT ASM Price: $40.93 |
| 120 |
100-2220 |
GEAR Price: $24.46 |
| 130 |
100-2221 |
GEAR Price: $66.83 |
| 135 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 140 |
100-2218 |
LEVER Price: $7.56 |
| 150 |
127-0448 |
SWITCH-MAGNETIC Price: $250.65 |
| 160 |
100-2219 |
RING-SNAP Price: $9.60 |
| 165 |
112-2833 |
GEAR-PINION Price: $123.77 |
| 170 |
100-2212 |
RING-SNAP Price: $5.84 |
| 180 |
100-2216 |
COLLAR Price: $14.55 |
| 190 |
100-2224 |
WASHER-PLAIN Price: $5.80 |
| 200 |
100-2225 |
WASHER-PLAIN Price: $2.44 |
| 210 |
100-2226 |
WASHER-PLAIN Price: $2.44 |
| 220 |
100-2227 |
PLATE Price: $14.26 |
| 230 |
99-8371 |
NUT-HEX Price: $3.75 |
| 240 |
100-1813 |
NUT Price: $2.05 |
| 250 |
100-2210 |
BOLT-THROUGH Price: $3.71 |
