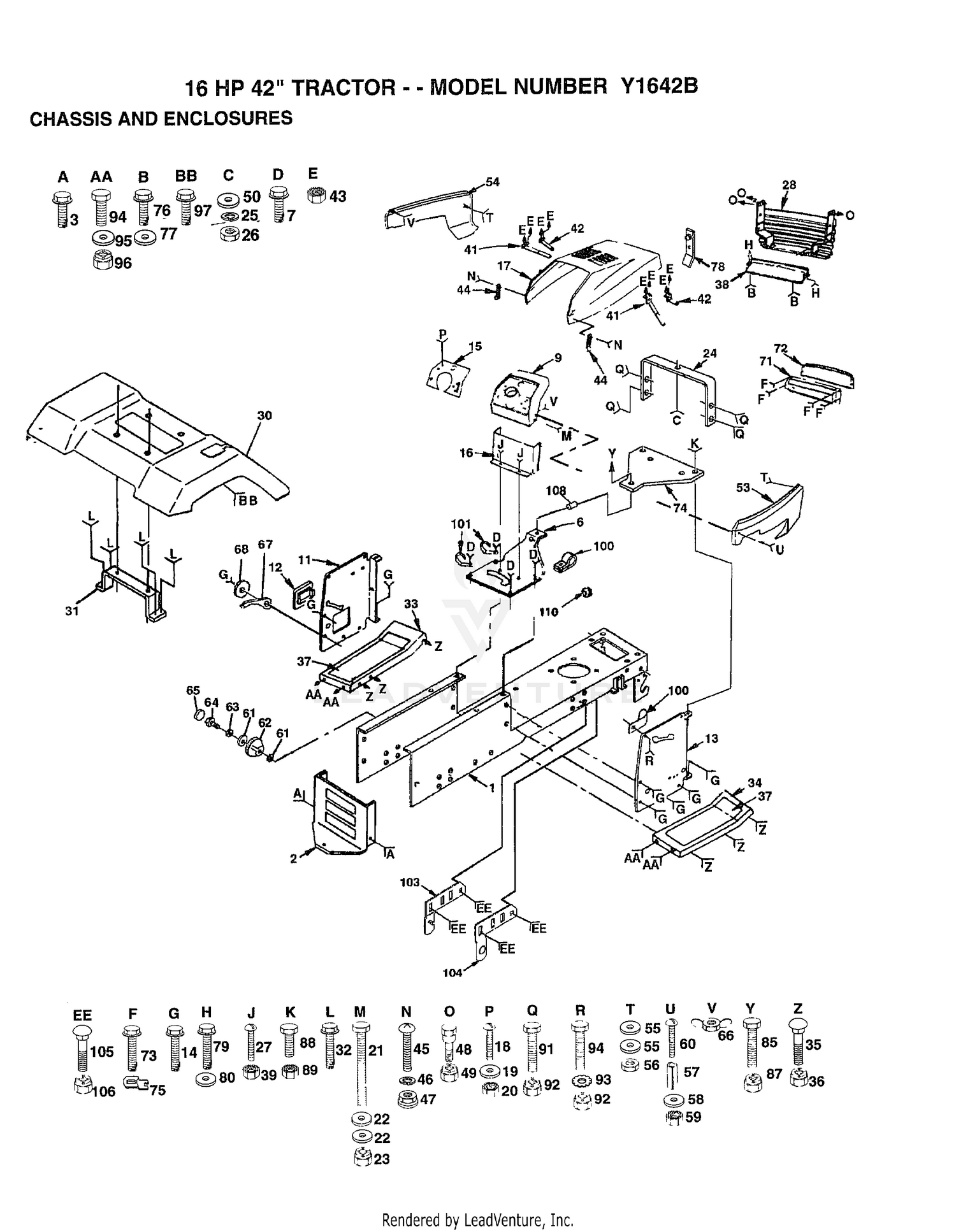

16HP 42" CHASSIS AND ENCLOSURES
Parts (87)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-3575 | DRIVESHAFT ASM Price: $841.45 |
| 1 | 135034 | SUB= 145501 Price: Call Us |
| 2 | 137275 | SUB= 145009 Price: Call Us |
| 3 | 17490615 | SCREW Price: Call Us |
| 3 | 322-9 | SCREW-HH Price: $3.09 |
| 4 | 32121-34 | PIN-ROLL Price: $1.31 |
| 6 | 127543X015 | SADDLE.LT.GOOSE Price: Call Us |
| 7 | 17490608 | SCREW LT Price: Call Us |
| 9 | 124252X | SUB= 140398 Price: Call Us |
| 11 | 136967 | PANEL.DASH.LH Price: Call Us |
| 12 | 121794X | COVER ACCESS Price: Call Us |
| 13 | 136970 | PANEL.DASH.RH Price: Call Us |
| 14 | 17490612 | SCREW Price: Call Us |
| 15 | 121444X019 | PLATE.SLKSCR. Price: Call Us |
| 16 | 104783X | DASH ASSY LT Price: Call Us |
| 17 | 132635X505 | SUB= 150301X505 Price: Call Us |
| 18 | 74180512 | SCREW Price: Call Us |
| 19 | 19111116 | WASHER Price: Call Us |
| 20 | 73510500 | NUT Price: Call Us |
| 21 | 74760620 | Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 22 | 19131312 | WASHER Price: Call Us |
| 23 | 73680600 | SUB= 73690600 Price: Call Us |
| 24 | 124130X | SUPPORT ASS'Y Price: Call Us |
| 25 | 10040400 | LOCKWASHER Price: Call Us |
| 26 | 73220400 | SUB= 50675 Price: Call Us |
| 27 | 74180512 | SCREW Price: Call Us |
| 28 | 131716 | SUB= 532131716 Price: Call Us |
| 30 | 126599X505 | FENDER Price: Call Us |
| 31 | 136619 | BRKT FENDER Price: Call Us |
| 32 | 17490612 | SCREW Price: Call Us |
| 33 | 105465X505 | SUB= 145244X505 Price: Call Us |
| 34 | 105464X505 | SUB= 145243X505 Price: Call Us |
| 35 | 72110606 | BOLT Price: Call Us |
| 36 | 73680600 | SUB= 73690600 Price: Call Us |
| 37 | 133671 | FOOTREST PAD Price: Call Us |
| 38 | 105419X505 | GRILL STRAP Price: Call Us |
| 39 | 73510500 | NUT Price: Call Us |
| 41 | 106784X | SUB= 155013 Price: Call Us |
| 42 | 104618X | SUB= 155013 Price: Call Us |
| 43 | 73510400 | NUT Price: Call Us |
| 44 | 109808X | HOOD LATCH T Price: Call Us |
| 45 | 74191008 | SCREW Price: Call Us |
| 46 | 10071000 | LOCKWASHER Price: Call Us |
| 47 | 2029J | WELDNUT Price: Call Us |
| 48 | 123481X | SUB= 7605J Price: Call Us |
| 49 | 73680400 | SUB= 73690400 Price: Call Us |
| 50 | 19091216 | WASHER PM Price: Call Us |
| 53 | 137655X505 | PANEL.SIDE.RH Price: Call Us |
| 55 | 19091216 | WASHER PM Price: Call Us |
| 56 | 73220400 | SUB= 50675 Price: Call Us |
| 57 | 7206J | SPACER LT Price: Call Us |
| 58 | 19070818 | WASHER Price: Call Us |
| 59 | 73731000 | NUT Price: Call Us |
| 60 | 74981020 | SCREW Price: Call Us |
| 61 | 19112410 | WASHER Price: Call Us |
| 62 | 123934X | HEIGHT INDICATOR Price: Call Us |
| 63 | 10040500 | LOCKWASHER Price: Call Us |
| 64 | 74780516 | SUB= 77394 Price: Call Us |
| 66 | 123198X | SUB= 146525 Price: Call Us |
| 67 | 123933X505 | POINTER HGT IND Price: Call Us |
| 68 | 120529X | WASHER T Price: Call Us |
| 71 | 124392X417 | SUB= 147717 Price: Call Us |
| 72 | 106395X | LENS LT Price: Call Us |
| 73 | 17211010 | SCREW LT Price: Call Us |
| 74 | 137654 | SUB= 140181 Price: Call Us |
| 76 | 17490512 | SCREW Price: Call Us |
| 77 | 19131210 | WASHER Price: Call Us |
| 78 | 132644 | SUB= 532132644 Price: Call Us |
| 79 | 17490412 | SCREW HEX CRT Price: Call Us |
| 80 | 19091016 | WASHER Price: Call Us |
| 85 | 74760532 | BOLT Price: Call Us |
| 87 | 73680500 | SUB= 73690500 Price: Call Us |
| 88 | 74760620 | Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 89 | 73510600 | NUT Price: Call Us |
| 91 | 74760612 | SUB= 74780612 Price: Call Us |
| 92 | 73680600 | SUB= 73690600 Price: Call Us |
| 93 | 11050600 | LOCKWASHER Price: Call Us |
| 94 | 74760612 | SUB= 74780612 Price: Call Us |
| 95 | 19131312 | WASHER Price: Call Us |
| 96 | 73680600 | SUB= 73690600 Price: Call Us |
| 97 | 17490608 | SCREW LT Price: Call Us |
| 100 | 2751R | CLIP T Price: Call Us |
| 103 | 134774 | PIVOT BRKT LH Price: Call Us |
| 104 | 134775 | PIVOT BRKT RH Price: Call Us |
| 105 | 72140608 | SUB= 72110608 Price: Call Us |
| 106 | 73800600 | NUT Price: Call Us |
| 108 | 121236X | SPACER Price: Call Us |
