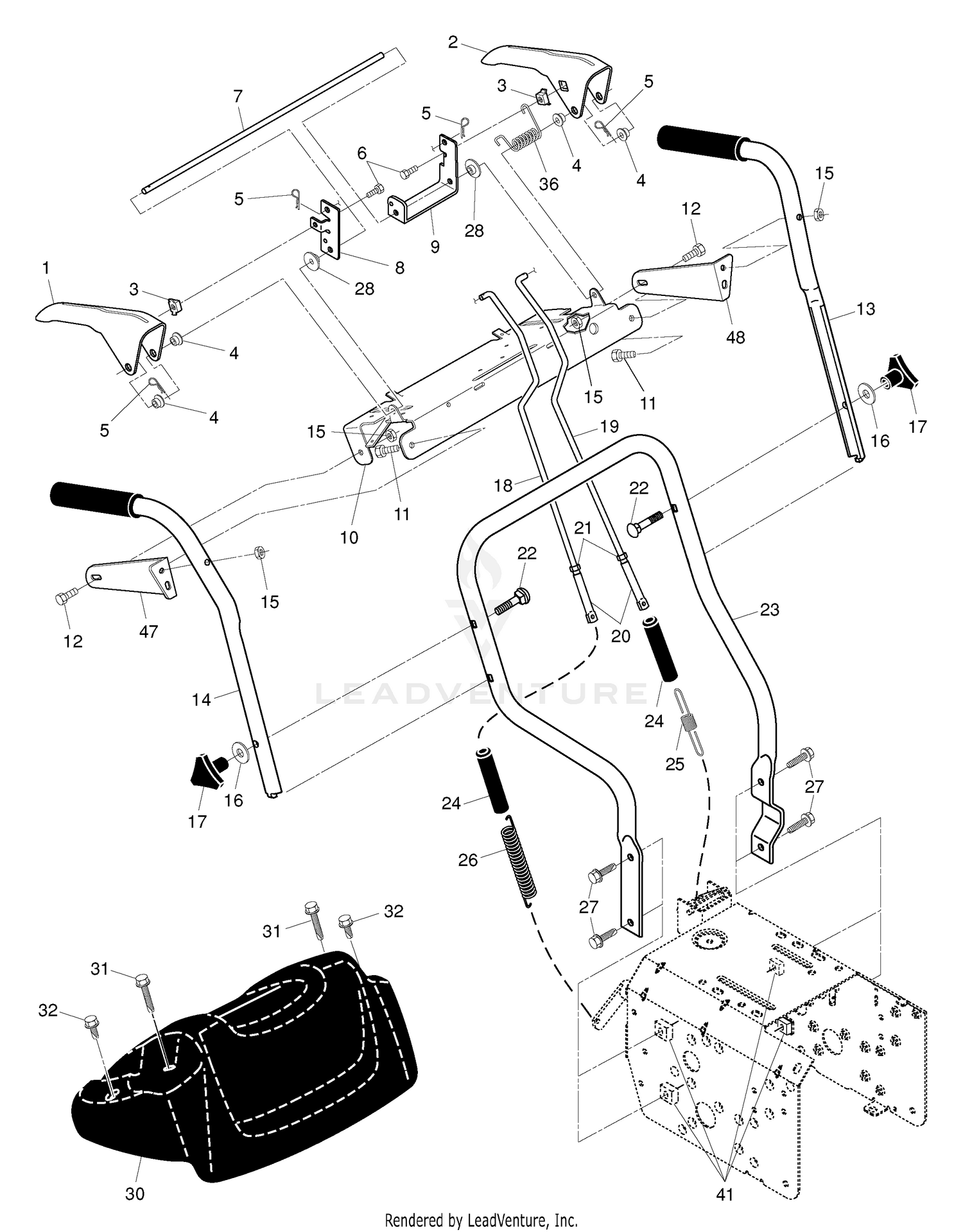

| Ref | Part Number | Description |
|---|
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532184110. Price: $22.99 |
| 2 |
532184109 |
LEVER, TRACTION DRIVE CONTROL Price: $9.99 |
| 3 |
532179439 |
NUT, CAGE 1/4-20 Price: $2.99 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 6 |
532199640 |
SCREW HEX This part replaces 532180402. Price: $3.99 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 8 |
532196334 |
ARM.TRACTION.ROD.YZ. This part replaces 532199575. Price: $3.99 |
| 9 |
532429098 |
ARM.IMPELLER.ROD.SNOW This part replaces 532199576. Price: $3.99 |
| 10 |
532196619 |
PANEL.CONTROL This part replaces 532199531. Price: $19.99 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 12 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 15 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 18 |
532184594 |
ROD.AUGER.CONTROL Price: $54.99 |
| 19 |
532193081 |
ROD.CABLE.TRACTION.LONG Price: $11.99 |
| 20 |
532180428 |
ROD, END CONTROL Price: $8.99 |
| 21 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 27 |
871210616 |
Screw, Hex Head 3/8-16 x 1 Price: $4.99 |
| 28 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 30 |
532183352 |
CONSOLE, HANDLE Price: $24.99 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
| 41 |
532178820 |
NUT, CAGE 3/8-16 This part replaces 532178890. Price: $5.99 |
| 47 |
532196944 |
BRKT.PANEL.LH.INT Price: $8.99 |
