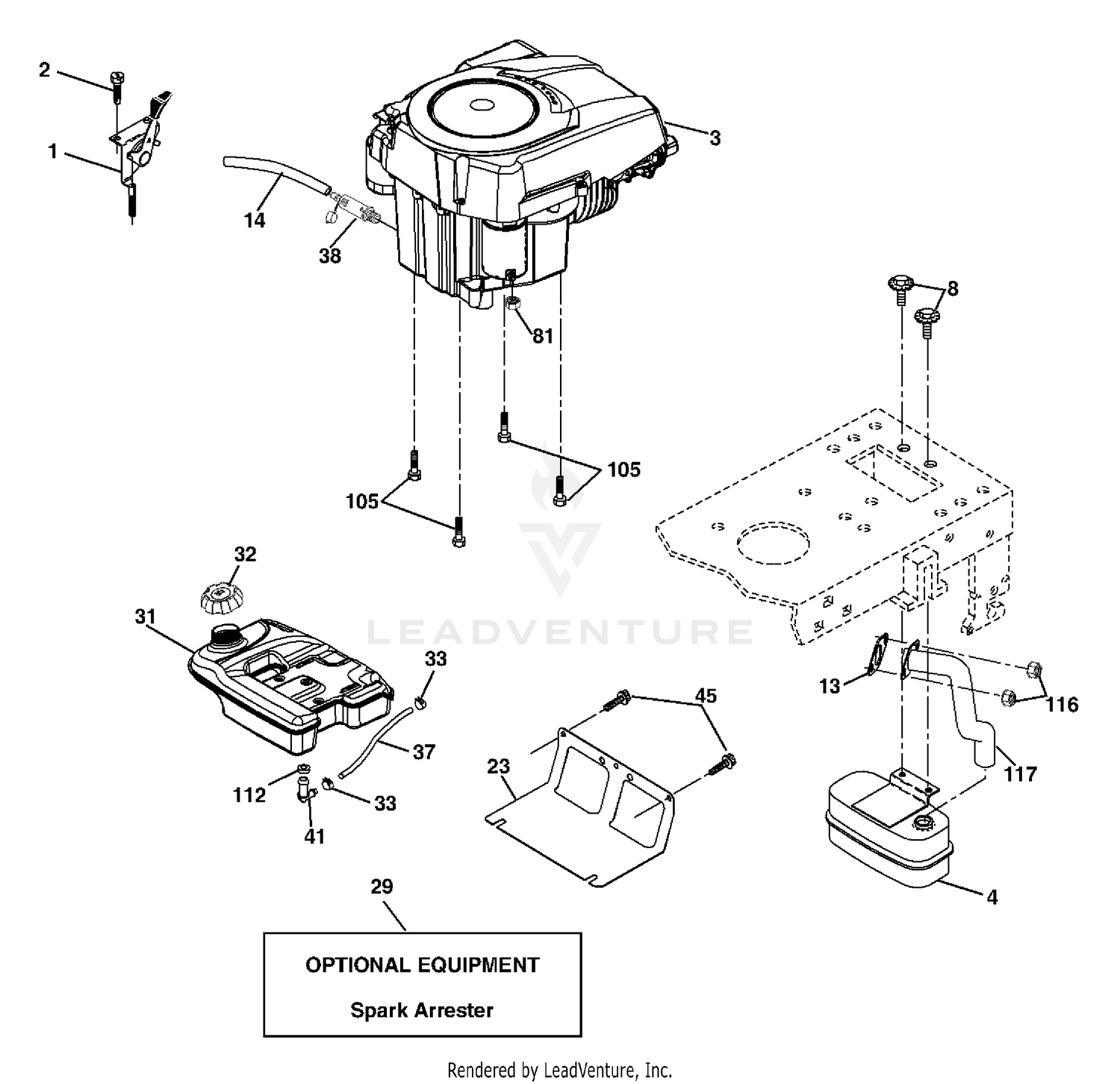

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 1 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 2 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
71-0280 |
TOP COWL FOAM Price: $90.33 |
| 4 |
321-2 |
SCREW-HH Price: $2.79 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 5 |
71-0240 |
DISCONTINUED Price: $2.00 |
| 6 |
69-9370 |
UPPER LOUVER *B Price: $131.73 |
| 7 |
71-0230 |
DISCONTINUED Price: Call Us |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
69-1130 |
MIDDLE LOUVER *B Price: $138.31 |
| 9 |
69-9650-03 |
SCREEN This part replaces 69-9650. Price: $60.32 |
| 10 |
107-1142 |
DISCONTINUED This part replaces 69-8650. Price: Call Us |
| 11 |
71-0220 |
DISCONTINUED Price: Call Us |
| 12 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 13 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 13 |
69-3030 |
STRIKE-LATCH Price: $210.27 |
| 14 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
69-8690-03 |
SUPPORT-GRILLE This part replaces 69-8690. Price: $505.57 |
| 16 |
69-3020 |
LATCH-CAMLOC Price: $43.54 |
| 17 |
71-0300 |
FOAM-FRONT COWL, LOWER (LH) Price: $79.38 |
| 18 |
69-9721 |
TRIM-SEAL Price: $24.68 |
| 19 |
75-9460-03 |
BRACKET-SEAL, LH This part replaces 75-9460. Price: $44.25 |
| 20 |
69-0040 |
STRIP-SEALING, GRILLE Price: $6.59 |
| 21 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 22 |
75-9480-03 |
BRACKET-SEAL, BOTTOM This part replaces 75-9480. Price: $18.63 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 23 |
69-7150-03 |
LOWER GRILL ASM This part replaces 69-7150. Price: $373.29 |
| 24 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 25 |
75-9470-03 |
BRACKET-SEAL, RH This part replaces 75-9470. Price: $44.25 |
| 26 |
328-11 |
SCREW-HH Price: $10.94 |
| 27 |
69-7120-03 |
UPPER GRILL ASM This part replaces 69-7120. Price: $941.28 |
| 28 |
69-9720 |
TRIM-SEAL Price: $17.44 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
71-0290 |
BOTTOM COWL FOAM Price: $58.86 |
| 30 |
71-0330 |
LOWER RR LH COWL FOAM Price: $29.35 |
| 31 |
69-1140 |
LOWER LOUVER *B Price: $52.29 |
| 32 |
3269-15 |
RIVET-POP Price: $0.54 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
3269-6 |
WASHER-FLAT Price: $0.68 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
250-5 |
TIE-CABLE Price: $5.19 |
| 37 |
532142145 |
BRACKET ASM.SHIFT.CRT Price: $17.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
