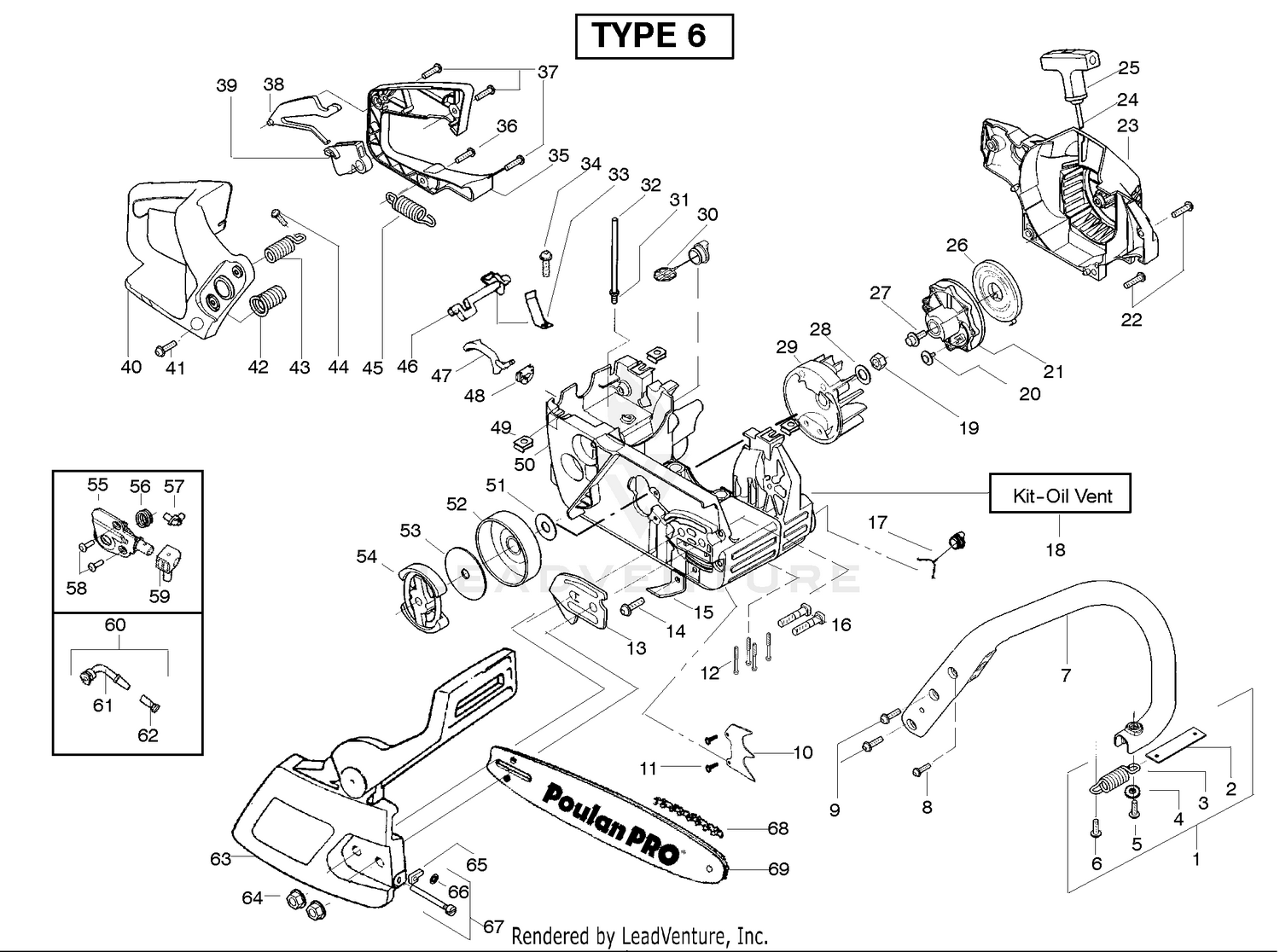

Starter - Type 6
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530059667 | Assy.-Isolator Price: $1.08 |
| 2 | 530037009 | AV Strap This part replaces 530047608. Price: $1.99 |
| 3 | 545006036 | SPRING This part replaces 530059668. Price: $5.99 |
| 4 | 530015123 | Washer This part replaces 530015158. Price: $1.99 |
| 5 | 530016018 | Screw Price: $1.99 |
| 6 | 530015843 | Screw Price: $1.99 |
| 7 | 545048001 | HANDLE This part replaces 530047583. Price: $25.99 |
| 8 | 530015940 | Screw Price: $1.99 |
| 9 | 530015814 | Screw Price: $1.49 |
| 10 | 98-7693 | ALTERNATOR ASM Price: $511.95 |
| 11 | 530016439 | Screw Price: $1.99 |
| 12 | 530016132 | Screw Price: $1.99 |
| 13 | 530038238 | Plate-Bar Mount. Price: $1.99 |
| 14 | 530015814 | Screw Price: $1.49 |
| 15 | 530029850 | Chain Catcher Price: $1.99 |
| 16 | 530016133 | Bolt-Bar Price: $1.99 |
| 17 | 530057236 | Assy-Oil Cap Price: $5.99 |
| 18 | 530071666 | Kit-Oil Vent Price: $7.99 |
| 19 | 530016134 | Nut-Flywheel Price: $1.99 |
| 20 | 530016080 | Screw Price: $1.99 |
| 20 | 98-7695 | BOLT Price: $3.47 |
| 21 | 545034301 | STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 22 | 530015892 | Screw Price: $1.99 |
| 23 | 530049335 | Housing-Fan Price: $9.99 |
| 24 | 530069232 | Kit - Rope Price: $3.99 |
| 25 | 530056402 | Handle-Starter Price: $2.99 |
| 26 | 545008015 | SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 27 | 530015920 | Screw Price: $1.99 |
| 28 | 530015127 | Washer-Flywheel Price: $1.99 |
| 29 | 530039187 | Assy-Flywheel Price: $14.99 |
| 30 | 577858501 | FUEL CAP ASSY W/RET This part replaces 530047192. Price: $4.99 |
| 31 | 530023877 | Fitting-fuel line Price: $1.99 |
| 32 | 530069216 | Kit-Fuel line (large) Price: $3.99 |
| 33 | 530016149 | Spring-Switch Price: $1.99 |
| 34 | 530015775 | Screw Price: $1.99 |
| 35 | 530047581 | Cover-Rear Handle Price: $3.99 |
| 36 | 530015886 | Screw Price: $1.99 |
| 37 | 530015906 | Screw Price: $1.99 |
| 38 | 530036098 | Throttle Lockout Price: $1.99 |
| 39 | 530036097 | Trigger-Throttle Price: $1.99 |
| 40 | 530047582 | Handle - Rear Price: $11.99 |
| 40 | 98-9366 | WASHER-PLAIN Price: $0.28 |
| 43 | 545006036 | SPRING This part replaces 530071958. Price: $5.99 |
| 44 | 530015875 | Screw Price: $1.99 |
| 45 | 545006036 | SPRING This part replaces 530059668. Price: $5.99 |
| 46 | 530057473 | Lever-Switch Price: $2.99 |
| 47 | 530057474 | Lever-Choke Price: $3.99 |
| 48 | 530049005 | Grommet-Knob Price: $1.99 |
| 49 | 530015922 | Nut-"U"-Type Price: $1.99 |
| 50 | 108-7088 | BOLT Price: $1.22 |
| 51 | 530015907 | Washer-Thrust Price: $1.99 |
| 52 | 530047061 | Assy.-Clutch Drum w/bearing Price: $11.99 |
| 53 | 530015611 | Washer-Clutch Price: $1.99 |
| 54 | 530014949 | Assy. Clutch Price: $7.99 |
| 56 | 530037820 | Gear-Worm Spring Price: $1.99 |
| 57 | 530049477 | Elbow-Oil Pickup Price: $1.99 |
| 58 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 59 | 530019206 | Seal Block Price: $1.99 |
| 61 | 530038373 | Pick-up Oiler Price: $1.99 |
| 62 | 530056533 | Filter-Oil Price: $2.99 |
| 63 | 545139915 | Assy.-Chain Brake Price: $22.99 |
| 64 | 530015917 | Nut-Bar Mounting Price: $0.99 |
| 65 | 530015826 | Pin-Bar Adjust Price: $1.99 |
| 66 | 530038593 | Retainer Price: $0.99 |
| 68 | 952051211 | Chain 16" Price: Call Us |
| 68 | 952051338 | Chain 18" Price: Call Us |
| 69 | 952044689 | Bar 18" Standard Price: Call Us |
| 69 | 952044926 | Bar 18" Quick Adjust Price: Call Us |
| 70 | 98-7572 | NUT Price: $0.32 |
| 80 | 98-7699 | WASHER-SPRING Price: $0.44 |
| 90 | 98-7694 | BRACKET-ALTERNATOR Price: $5.42 |
| 100 | 98-7701 | COVER-BELT Price: $61.89 |
| 110 | 106-2044 | PULLEY-DRIVE, FAN This part replaces 98-7703. Price: $337.00 |
| 120 | 98-7451 | KEY-FEATHER Price: $1.72 |
