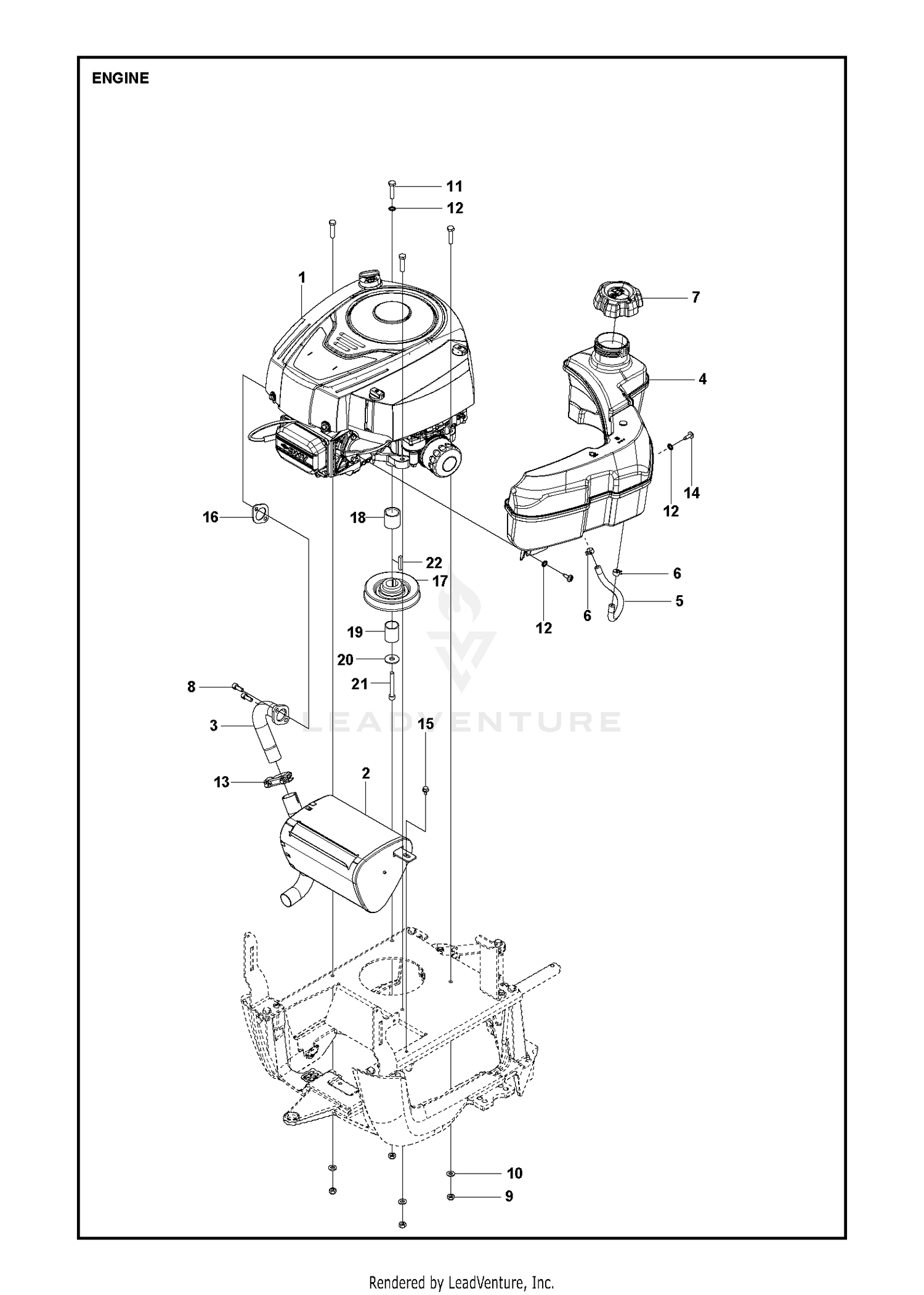

ENGINE
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 580375002 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 580735501 | MUFFLER ASSY Price: $63.99 |
| 3 | 580376601 | MANIFOLD Price: $17.99 |
| 4 | 580541102 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 504800013 | FUEL HOSE Price: $7.99 |
| 6 | 535469701 | CLAMP Price: $2.99 |
| 7 | 584248702 | CAP.ASSY.FUEL.3".N-EPA.GRY.498 Price: $14.99 |
| 8 | 506556301 | BOLT Price: $3.99 |
| 9 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 10 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 10 | 98-9705 | STARTER ASM Price: $663.57 |
| 11 | 725245751 | SCREW Price: $4.99 |
| 12 | 735216401 | NEEDS DESCRIPTION Price: Call Us |
| 13 | 501152201 | CLAMP ASSY EXHAUST Price: $2.99 |
| 14 | 544400401 | SCREW Price: $0.99 |
| 15 | 725236461 | SCREW Price: $2.99 |
| 16 | 506914501 | FLANGE Price: $4.99 |
| 17 | 522827601 | PULLEY Price: $18.99 |
| 18 | 506509202 | SPACING SLEEVE Price: $4.52 |
| 19 | 574412002 | TUBE Price: $11.99 |
| 20 | 104-8608 | YOKE ASM Price: $437.88 |
| 20 | 506597501 | WASHER Price: $6.99 |
| 22 | 506555902 | WEDGE Price: $3.99 |
| 30 | 98-7742 | ARMATURE ASM Price: $819.15 |
| 40 | 98-7744 | BEARING Price: $35.64 |
| 50 | 98-7743 | BEARING Price: $37.48 |
| 60 | 99-8373 | CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 | 99-8374 | FRAME-END, DRIVE Price: $73.04 |
| 80 | 105-3746 | MAGNETIC SWITCH ASM Price: $689.29 |
| 90 | 98-7748 | FRAME-END Price: $82.65 |
| 100 | 98-7749 | BRUSH HOLDER ASM Price: $91.05 |
| 110 | 98-7750 | SPRING-BRUSH Price: $2.38 |
| 120 | 98-7751 | GEAR Price: $43.51 |
| 130 | 98-7752 | RETAINER Price: $4.35 |
| 140 | 98-7753 | ROLLER Price: $1.00 |
| 150 | 98-7754 | SPRING Price: $4.70 |
| 160 | 98-7755 | BALL Price: $0.42 |
| 170 | 98-7756 | BOLT Price: $2.64 |
| 180 | 98-7757 | O-RING Price: $24.98 |
| 190 | 100-9240 | BOLT Price: $7.23 |
| 200 | 98-7758 | BOLT ASM Price: $4.90 |
| 210 | 99-8375 | COVER Price: $24.86 |
| 220 | 99-8371 | NUT-HEX Price: $3.75 |
| 230 | 98-9711 | CORD-SOLENOID, STOP Price: $12.05 |
| 240 | 99-8376 | NUT-HEX Price: $7.28 |
| 250 | 98-7759 | PIPE-DRAIN Price: $28.84 |
