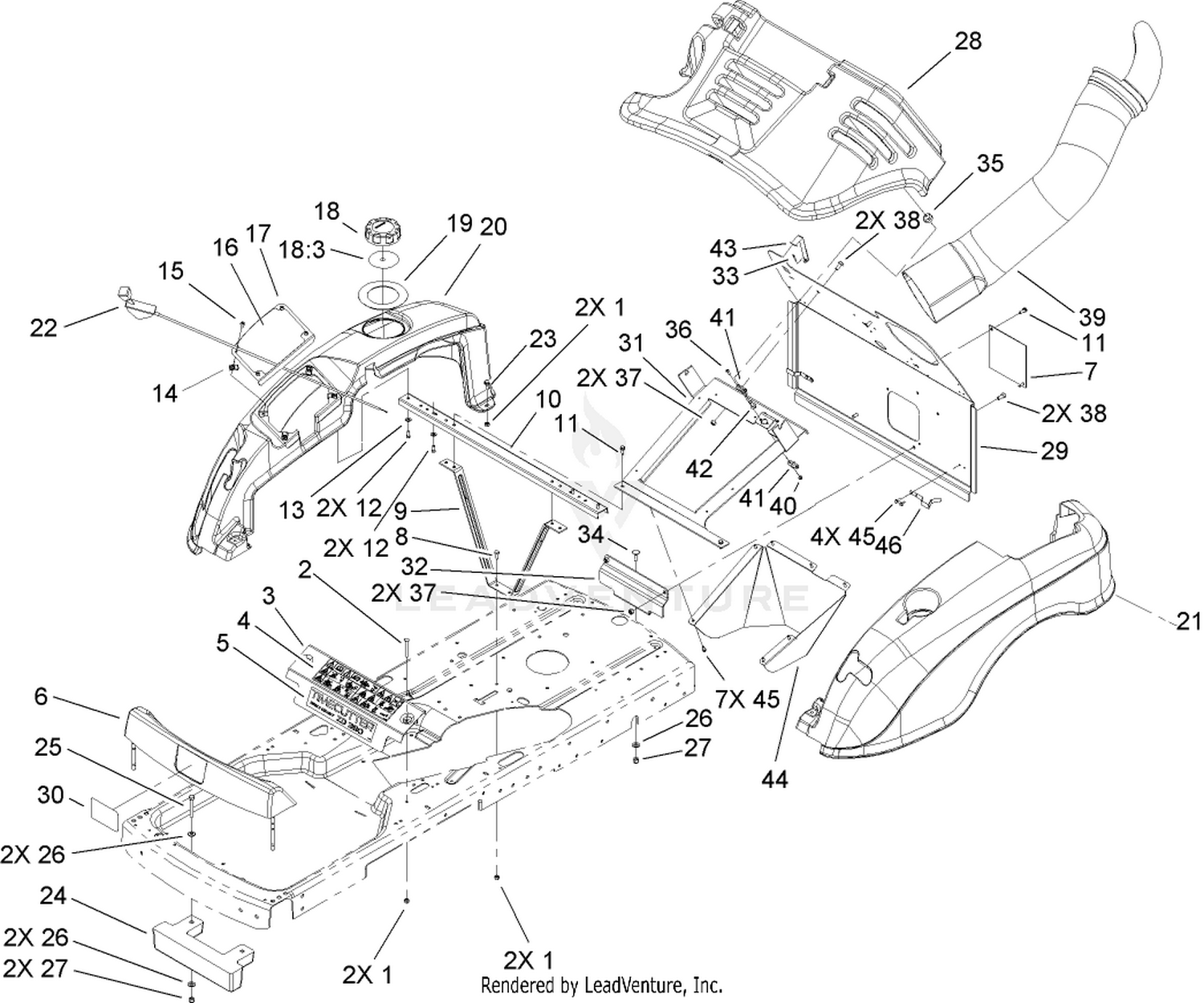

Styling Assembly
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 2 | 3229-7 | SCREW-CARR Price: $0.87 |
| 3 | 106-2164-03 | BRACKET-SUPPORT, FRONT Price: $26.40 |
| 4 | 110-6567 | DECAL-DANGER Price: $15.01 |
| 5 | 108-8764 | DISCONTINUED Price: Call Us |
| 6 | 105-6965 | FOOTREST ASM Price: $115.16 |
| 7 | 112-6702-03 | DISCONTINUED Price: Call Us |
| 8 | 321-4 | SCREW-HH Price: $0.99 |
| 9 | 106-6994-03 | BRACE ASM Price: $25.36 |
| 10 | 108-2313-03 | CHANNEL-CROSS Price: $38.79 |
| 11 | 32144-44 | SCREW-HWH, THREAD ROLL Price: $1.39 |
| 12 | 46-8090 | SCREW-PLASTITE Price: $1.84 |
| 13 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 14 | 107069 | CLIP Price: $1.79 |
| 15 | 3258-166 | SCREW-PRH Price: $0.28 |
| 16 | 106-2224 | DECAL-CONTROL Price: $20.60 |
| 17 | 106-2167-03 | PANEL-CONTROL Price: $14.20 |
| 18 | 88-3980 | GAS CAP ASM Price: $31.99 |
| 19 | 106-7042 | SEAL-RUBBER Price: $6.25 |
| 20 | 106-2161 | COVER-SIDE, RH Price: $178.05 |
| 21 | 108-8824 | COVER-SIDE, LH Price: $254.40 |
| 22 | 104-3626 | CABLE-THROTTLE Price: $48.15 |
| 23 | 11-9030 | SCREW-SHOULDER Price: $5.63 |
| 24 | 105-6972-03 | WEIGHT-BAGGER Price: $247.92 |
| 25 | 323-12 | SCREW-HH Price: $1.14 |
| 26 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 27 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 28 | 110-3647 | COVER-ENGINE Price: $286.60 |
| 29 | 114-3606-03 | DISCONTINUED Price: Call Us |
| 30 | 105-6971 | DECAL Price: $5.04 |
| 31 | 112-6696-03 | HINGE-OFFSET Price: $214.95 |
| 32 | 110-1016-03 | DISCONTINUED Price: Call Us |
| 33 | 3272-6 | PIN-COTTER Price: $0.25 |
| 34 | 3231-22 | SCREW-CARR Price: $0.72 |
| 35 | 108-2305 | GROMMET Price: $1.51 |
| 36 | 3274-39 | SCREW-HSBH Price: $4.34 |
| 37 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 38 | 322-3 | SCREW-HH Price: $0.79 |
| 39 | 110-3626 | TUBE-DISCHARGE Price: $174.29 |
| 40 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 41 | 107-9199 | PLATE Price: $5.35 |
| 42 | 107-9198 | PIN-HOOD Price: $8.44 |
| 43 | 114-3603 | TAB-SWITCH Price: $9.51 |
| 44 | 112-6719-03 | DISCONTINUED Price: Call Us |
| 45 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
