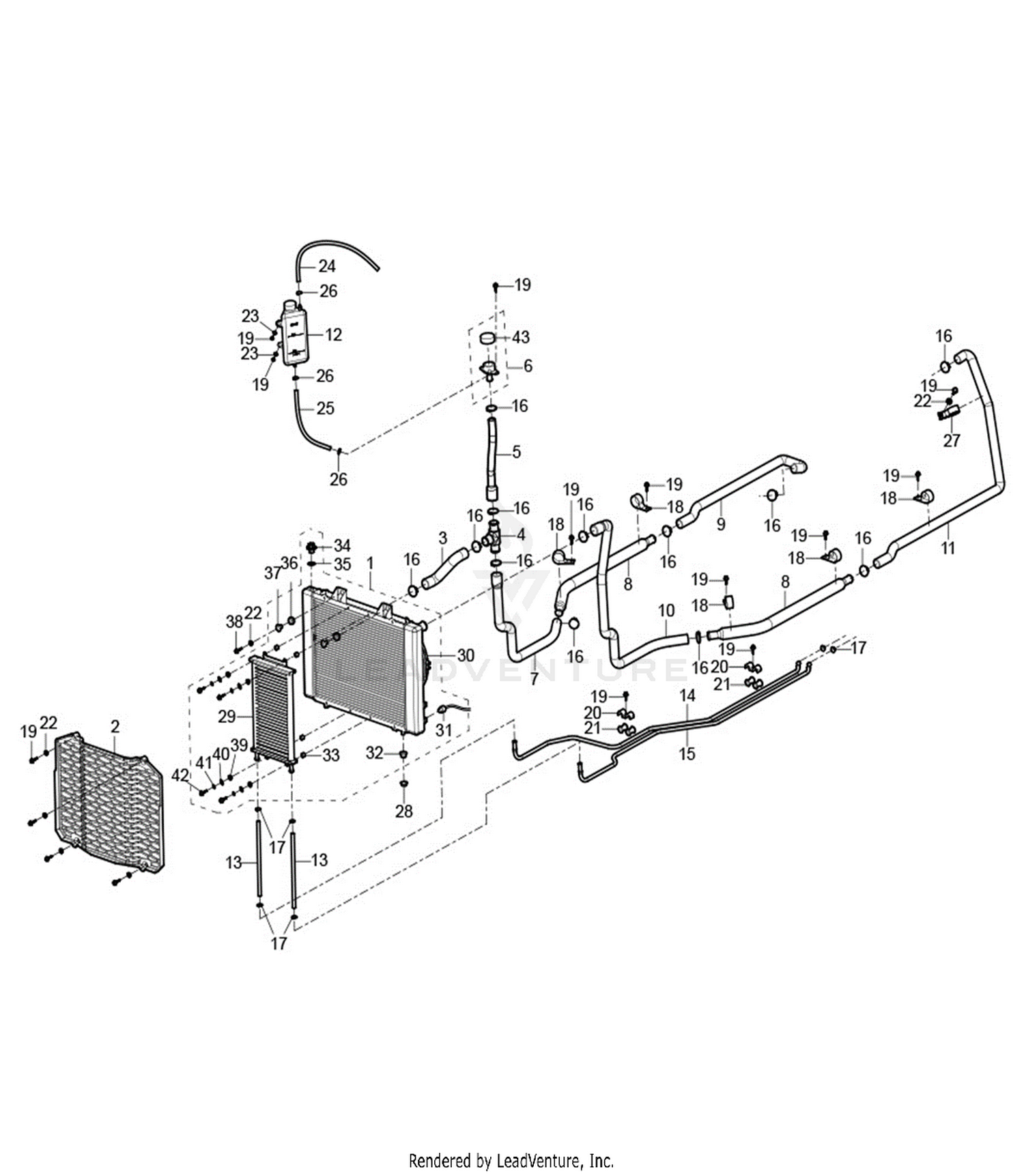

| Ref | Part Number | Description |
|---|
| 1 |
503-01502 |
RADIATOR Price: $1,196.68 |
| 2 |
503-01503 |
RADIATOR COVER Price: $20.03 |
| 3 |
503-01504 |
HOSE - WATER INLET - RADIATOR Not Available Price: |
| 4 |
503-01505 |
TEE PIPE COUPLING Not Available Price: |
| 5 |
503-01506 |
RADIATOR WATER INLET HOSE IV Price: $19.48 |
| 6 |
503-01507 |
FILTER NECK Price: $47.32 |
| 7 |
503-01508A |
RADIATOR HOSE WATER INLET II This part replaces 503-01508. Price: $51.83 |
| 8 |
503-01509 |
HOSE - ALUMINIUM I HSN NLAUD Not Available Price: |
| 9 |
503-01510 |
RADIATOR HOSE WATER INLET I Price: $96.31 |
| 10 |
503-01511A |
RADIATOR HOSE WATER OUTLET II This part replaces 503-01511. Price: $71.40 |
| 11 |
503-01512 |
RADIATOR HOSE WATER OUTLET I Price: $96.86 |
| 12 |
503-01513 |
TANK SURGE ASSEMBLY Price: $30.64 |
| 13 |
503-01514 |
HOSE - RUBBER I Price: $58.45 |
| 14 |
503-01516A |
METAL HOSE II Price: $77.73 |
| 15 |
503-01515A |
METAL HOSE I Price: $74.44 |
| 16 |
503-00749 |
CLAMP Price: $8.97 |
| 17 |
503-00703 |
LOCK CLAMP A Not Available Price: |
| 18 |
503-00548 |
WATER PIPE CLAMP Price: $13.66 |
| 19 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 20 |
503-00792 |
FIXED PIPE CLAMPS M-SHAPED Not Available Price: |
| 21 |
503-00798 |
RUBBER FUEL LINE Not Available Price: |
| 22 |
503-01979 |
HEX FLANG NUT M6 Price: $3.94 |
| 23 |
503-00508 |
FLANGE BUSHING Price: $6.67 |
| 24 |
503-02065 |
COOLANT HOSE Price: $5.25 |
| 25 |
503-02056 |
RUBBER HOSE W/INNER SPRING 5X9 Price: $8.07 |
| 26 |
503-00183 |
SPRING CLAMP C Price: $10.30 |
| 27 |
503-01517 |
CLIP - WATER HOSE II Price: $3.19 |
| 28 |
503-01518 |
BUSHING Price: $4.92 |
| 29 |
503-01969 |
OIL COOLER Not Available Price: |
| 30 |
503-02484 |
WATER TANK (CHALLENGER 750) Price: $395.42 |
| 31 |
503-00760 |
WATER TEMPERATURE SENSOR Price: $123.86 |
| 32 |
503-01972 |
CUSHION Not Available Price: |
| 33 |
503-01973 |
WATER TANK CUSHION Price: $3.67 |
| 34 |
503-01974 |
BOLT Price: $4.06 |
| 35 |
503-01975 |
O-RING 9X1.8 Price: $4.06 |
| 36 |
503-00780 |
WATER TANK BRACKET RING Not Available Price: |
| 37 |
503-00781 |
WATER TANK BRACKET BUSHING Price: $9.86 |
| 38 |
503-00081 |
HEXAGON FLANGE BOLT M6X25 Not Available Price: |
| 39 |
503-01350 |
HEXAGON FLANGE HEAD NUT M6 Price: $4.06 |
| 40 |
503-01980 |
PLAIN WASHER M6 Price: $3.19 |
| 41 |
503-00774 |
SPRING WASHER 6 Price: $4.23 |
| 42 |
503-01982 |
HEX BOLT M6X25 Price: $3.19 |
