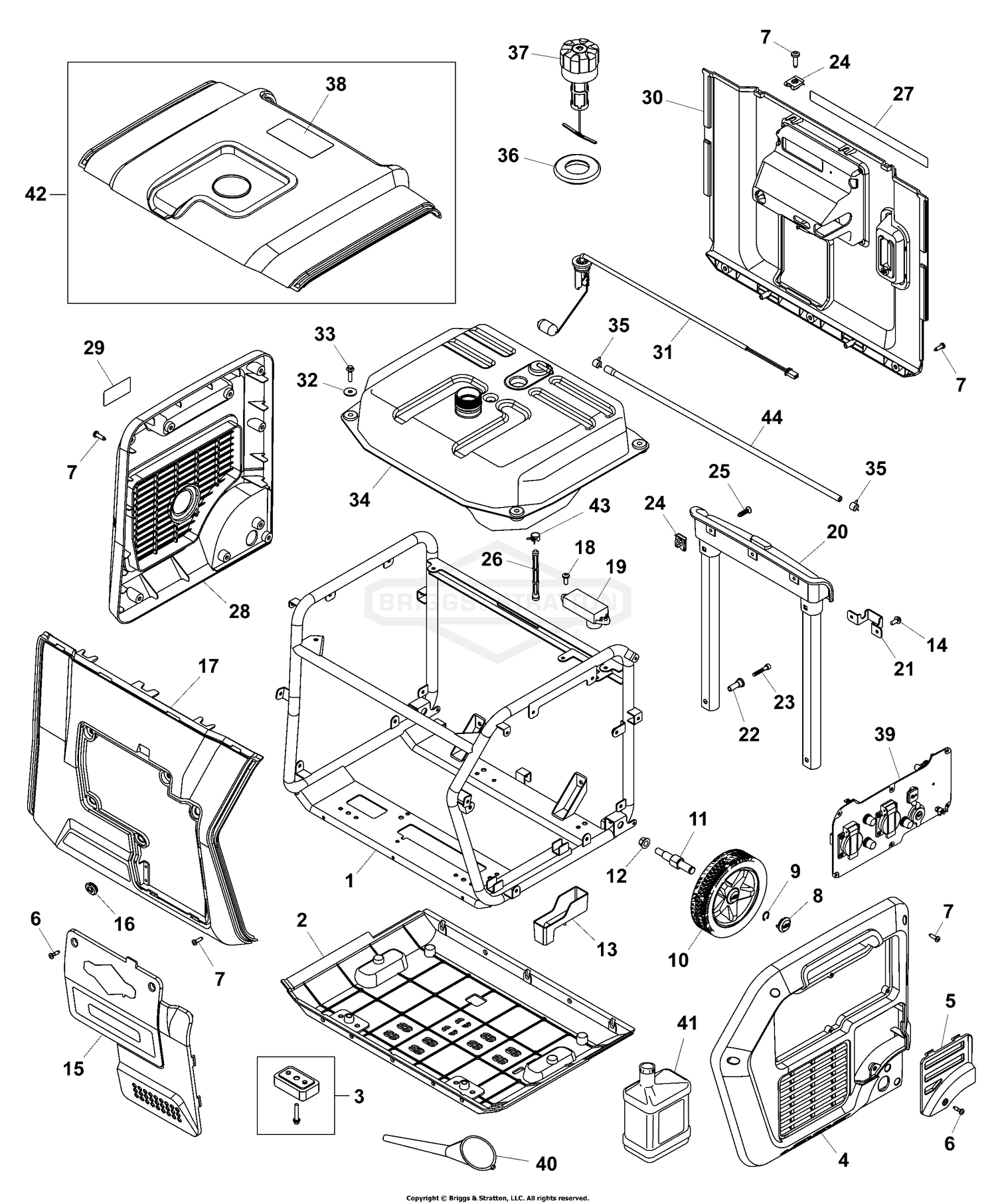

| Ref | Part Number | Description |
|---|
| 1 |
84005416 |
CRADLE Price: $172.24 |
| 2 |
84002938 |
PANEL-BOTTOM Price: $83.73 |
| 3 |
84002939 |
FOOT-RUBBER Price: $7.73 |
| 4 |
84002911 |
PANEL-SIDE Price: $87.32 |
| 5 |
84002974 |
PANEL-BATTERY Price: $5.66 |
| 6 |
84002976 |
SCREW Price: $2.94 |
| 7 |
84002910 |
SCREW Price: $3.28 |
| 8 |
706065 |
HUBCAP Price: $4.98 |
| 9 |
771593 |
E-RING Price: $3.39 |
| 11 |
84002909 |
AXLE Price: $11.65 |
| 12 |
709938 |
NUT-M10 FLANGE LOCK Price: $5.82 |
| 13 |
84002954 |
TRAP-DRAIN Price: $6.46 |
| 14 |
807084 |
SCREW This part replaces 706865. Price: $2.92 |
| 15 |
84002912 |
PANEL-ACCESS Price: $48.76 |
| 16 |
84002917 |
GROMMET Price: $3.17 |
| 17 |
84002916 |
PANEL-BACK Price: $87.32 |
| 18 |
91526GS |
MACHINE SCREW, Phllps Pn Hd Price: $3.09 |
| 19 |
84002951 |
CONTROLLER-IGNITION Price: $36.85 |
| 20 |
84002960 |
ASSY-HANDLE Price: $192.80 |
| 21 |
84002968 |
BRACKET Price: $5.50 |
| 22 |
84002969 |
BUSHING Price: $5.50 |
| 23 |
191364GS |
SCREW Price: Call Us |
| 24 |
84002982 |
NUT-SPECIAL Price: $2.96 |
| 25 |
84002961 |
SCREW Price: $2.22 |
| 26 |
707168 |
FILTER-FUEL TANK Price: $3.85 |
| 27 |
84005484 |
DECAL Price: Call Us |
| 29 |
84005478 |
DECAL Price: Call Us |
| 31 |
84002946 |
GAUGE-FUEL Price: $26.49 |
| 32 |
316506GS |
WASHER-FLAT Price: Call Us |
| 33 |
590644 |
SCREW This part replaces 706866. Price: $3.36 |
| 35 |
48031GGS |
Clamp, Hose band Price: $3.06 |
| 36 |
84002943 |
GROMMET-FUEL Price: $5.82 |
| 37 |
84002942 |
CAP-FUEL Price: $21.08 |
| 38 |
84005478 |
DECAL Price: Call Us |
| 39 |
84005551 |
ASSY-CONTROL PANEL Price: $38.15 |
| 40 |
706357 |
FUNNEL Price: $30.04 |
| 41 |
100005 |
OIL-4 CYCLE 30W 18OZ. Price: $5.50 |
| 42 |
84005553 |
PANEL-TOP Price: $71.01 |
| 43 |
84002949 |
CLAMP Price: $2.96 |
