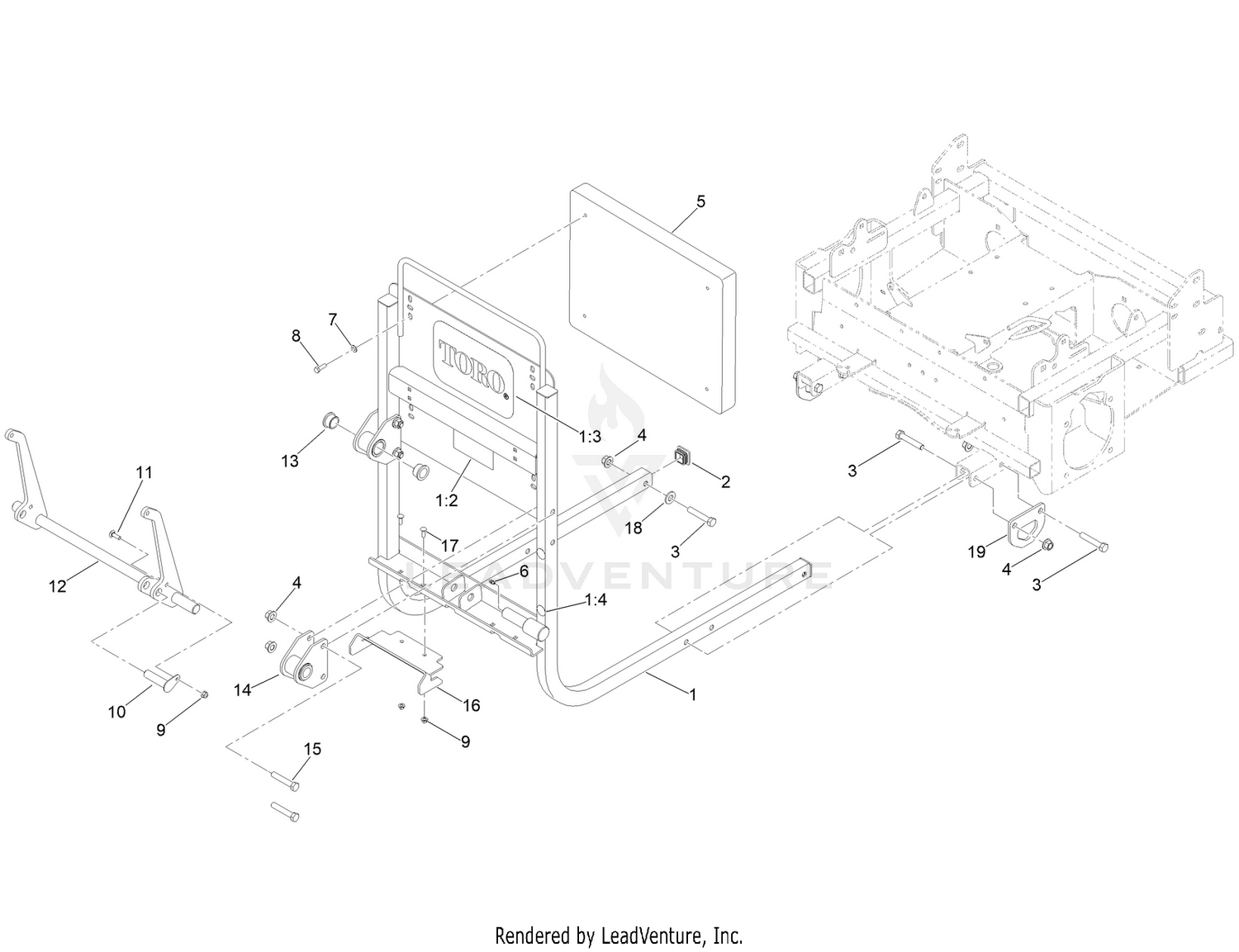

Rear Frame Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 147-3708 | REAR FRAME ASM W/DECALS Price: Call Us |
| 2 | 145-1811 | PLUG, SQUARE Price: $1.91 |
| 3 | 325-11 | SCREW-HH Price: $1.93 |
| 4 | 99-5107 | NUT-LOCK Price: $1.77 |
| 5 | 117-9739 | PAD-CUSHION Price: $221.91 |
| 6 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 8 | 121-7999 | SCREW-HH Price: $0.70 |
| 9 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 10 | 140-6323 | PIN Price: $17.64 |
| 11 | 3230-22 | SCREW-CARR Price: $1.99 |
| 12 | 145-4178-03 | LIFT-SHAFT Price: $211.24 |
| 13 | 256-132 | BUSHING-FLANGE Price: $8.20 |
| 14 | 145-4175-03 | HUB-LIFT Price: $70.84 |
| 15 | 325-11 | SCREW-HH Price: $1.93 |
| 16 | 163-1609-03 | BRACKET-LIFT, EXTRA Price: $34.97 |
| 17 | 3230-2 | BOLT-CARR Price: $0.47 |
| 18 | 107-3395 | WASHER-HARDENED Price: $1.49 |
