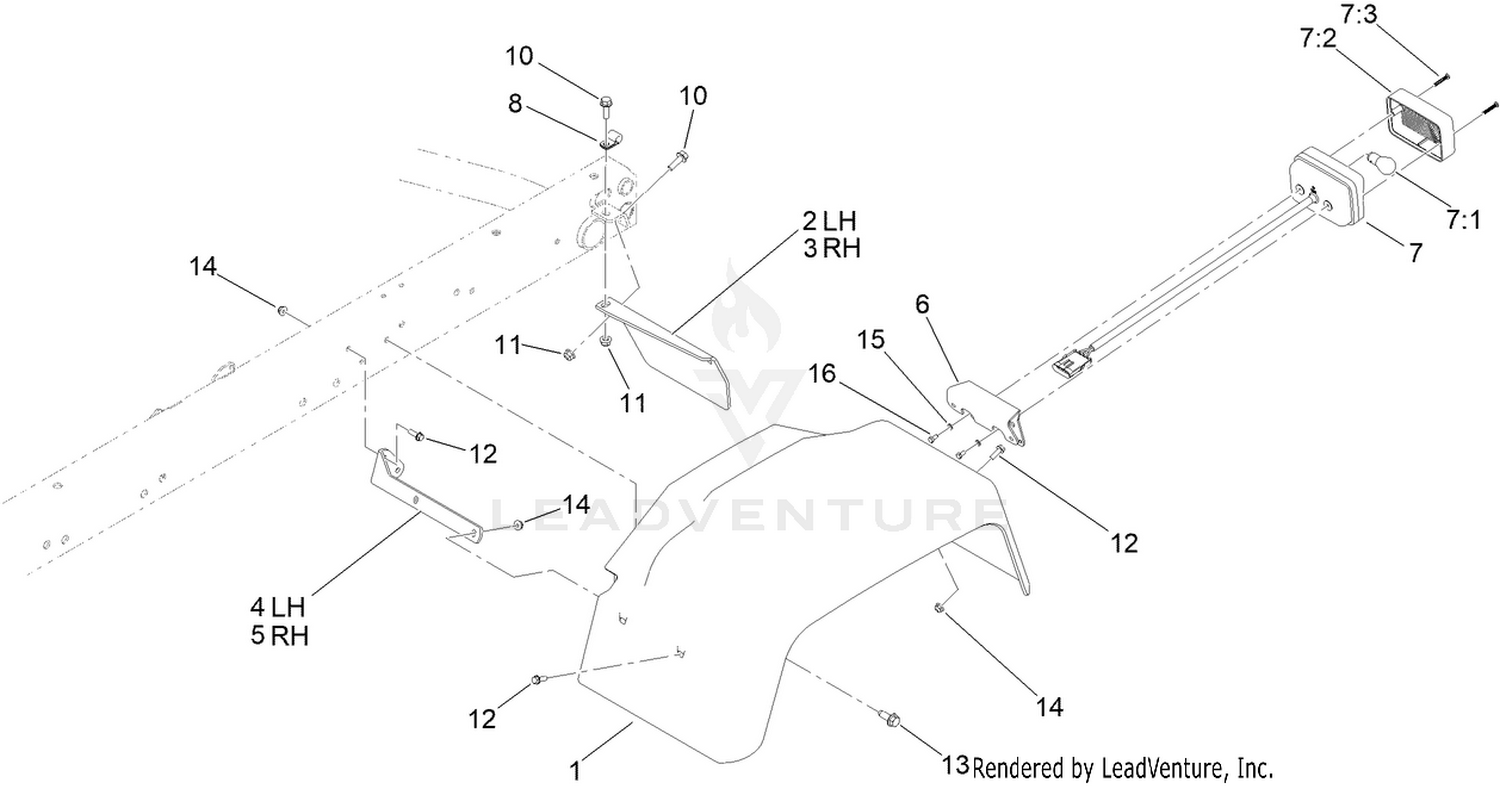

| Ref | Part Number | Description |
|---|
| 1 |
132-6701 |
FENDER-REAR Price: $87.85 |
| 2 |
93-8943-03 |
BRACKET-FENDER, REAR (LH) Price: $26.62 |
| 3 |
93-8944-03 |
BRACKET-FENDER, REAR (RH) Price: $26.62 |
| 4 |
93-8941-03 |
BRACKET-FENDER, FRONT (LH) Price: $55.58 |
| 5 |
93-8942-03 |
BRACKET-FENDER, FRONT (RH) Price: $55.58 |
| 6 |
121-6269-03 |
BRACKET-LIGHT, TAIL Price: $18.84 |
| 7 |
120-4820 |
LIGHT-TAIL, BRAKE Price: $140.06 |
| 8 |
2412-93 |
CLAMP-R Price: $1.02 |
| 10 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 11 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 12 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 13 |
126-1696 |
SCREW-FORMING, THREAD Price: $0.99 |
| 14 |
104-7201 |
NUT-HF Price: $0.69 |
| 15 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
