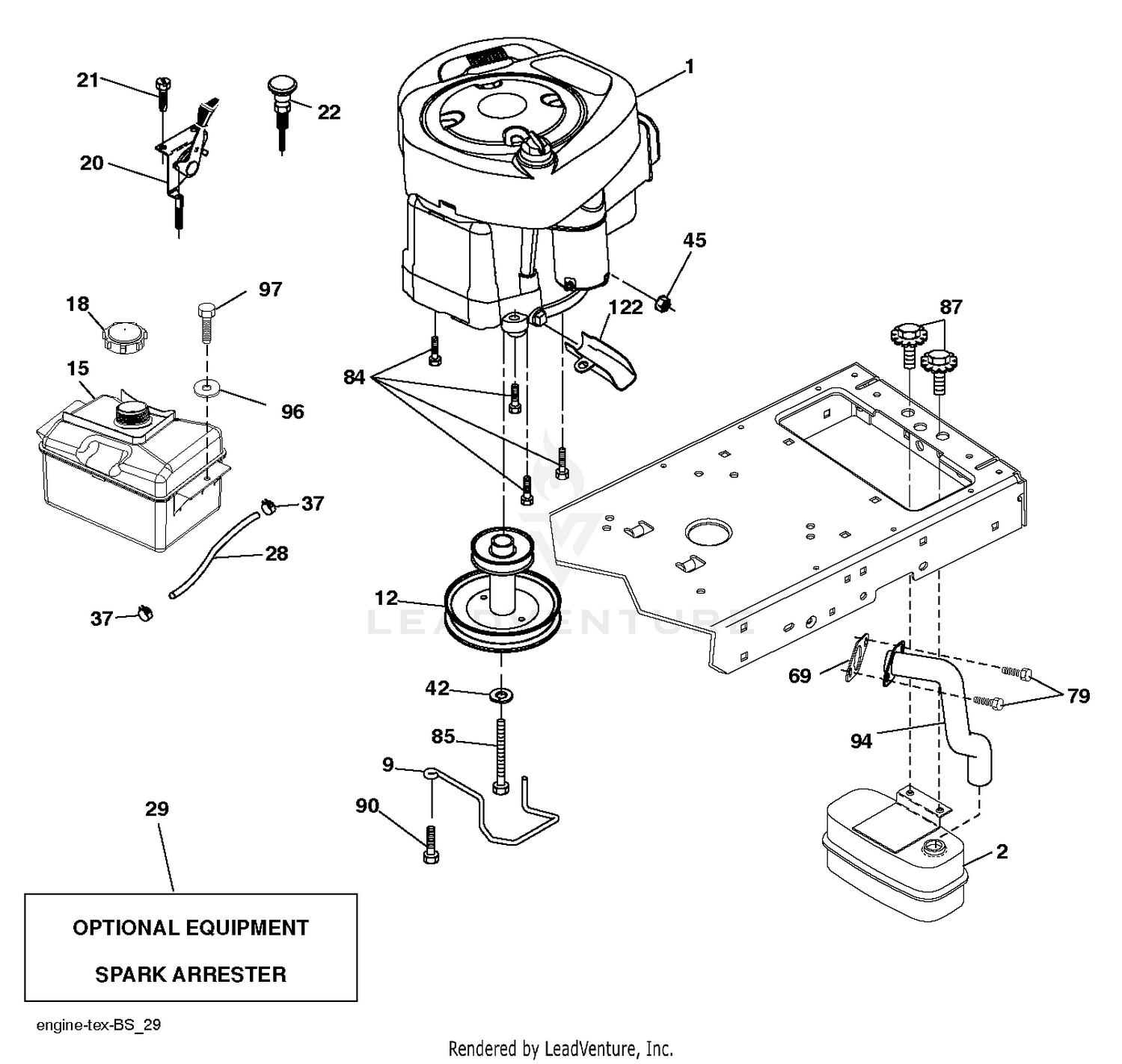

| Ref | Part Number | Description |
|---|
| 1 |
93-8923 |
SPRING-WAVE Price: $107.72 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $27.99 |
| 2 |
93-8929 |
WASHER-THRUST Price: $3.26 |
| 3 |
93-8919 |
BEARING-NEEDLE, THRUST Price: $44.05 |
| 4 |
93-8925 |
ROLLER Price: $23.82 |
| 5 |
32151-96 |
RING-RETAINING Price: $0.54 |
| 6 |
100-2572 |
BEARING Price: $79.71 |
| 7 |
100-2571 |
SPRING-FORM, WIRE Price: $5.07 |
| 8 |
132-6130 |
HUB ASSEMBLY This part replaces 100-2570. Price: $480.50 |
| 9 |
100-2569 |
HOUSING ASM Price: $996.50 |
| 9 |
532194320 |
KEEPER.BELT.ENGINE.4.2 Price: $8.99 |
| 12 |
532405471 |
PULLY ENGINE Price: $64.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 18 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $22.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 22 |
532194981 |
Price: $24.99 |
| 28 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 94 |
532405450 |
EXHAUST.TUBE.B&S. Price: $26.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
