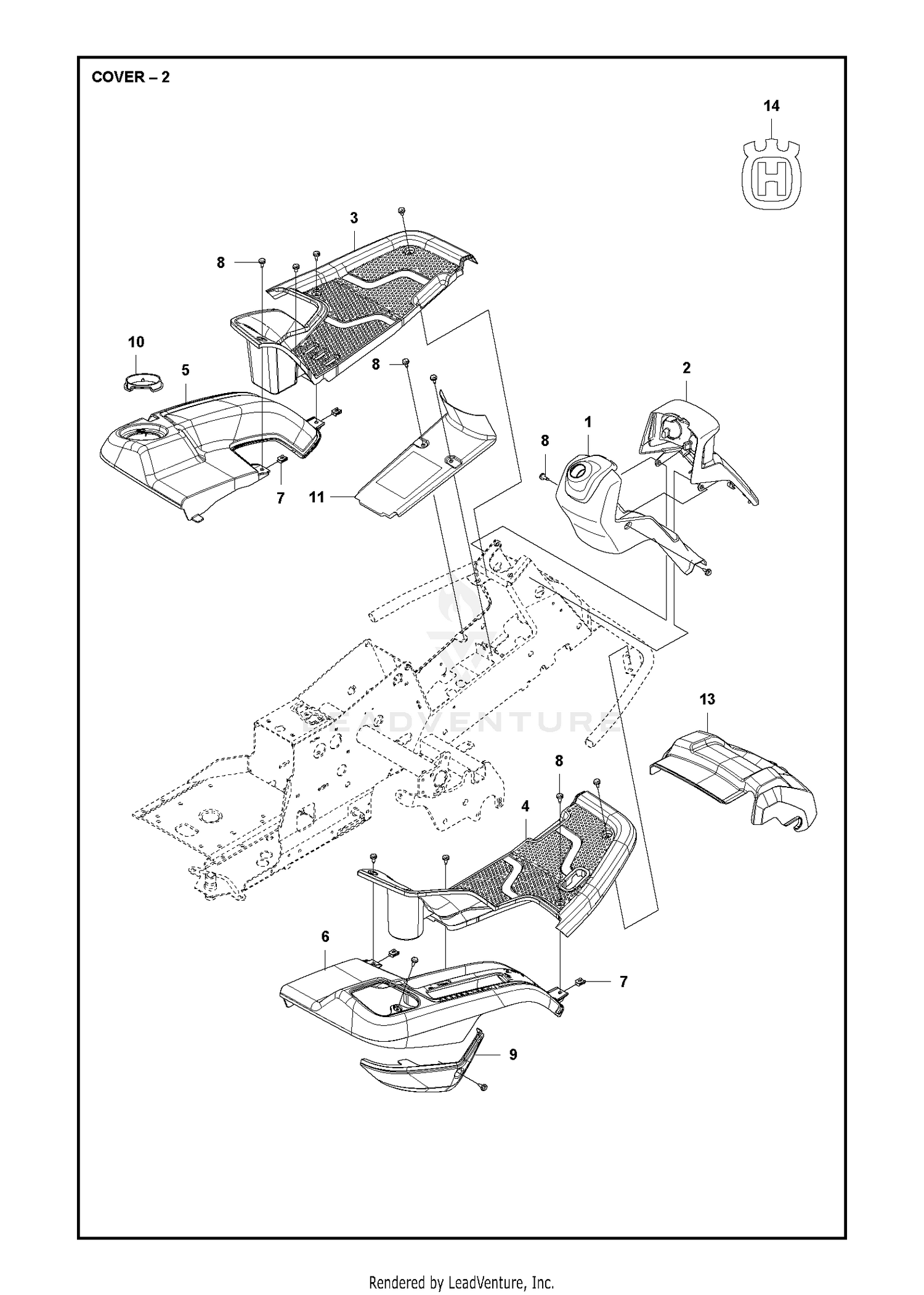

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
577704101 |
COVER Price: $29.99 |
| 2 |
590964201 |
COVER STEERING TOP ASSY HUSQVA Price: $119.99 |
| 2 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 3 |
140-6221 |
LINK AND BUSHING ASSEMBLY This part replaces 16-9759. Price: $70.43 |
| 3 |
577729301 |
FOOT PLATE Price: $44.99 |
| 4 |
577729401 |
FOOT PLATE Price: $44.99 |
| 4 |
93-6981 |
SPACER Price: $4.69 |
| 5 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 5 |
577729501 |
FENDER Price: $49.99 |
| 6 |
137-5979 |
RH 7IN LOW DRAG, TRIM, SIDE PLATE ASM This part replaces 133-0103. Price: $391.19 |
| 6 |
577729601 |
FENDER Price: $49.99 |
| 7 |
137-5976 |
SIDE PLATE-7IN LD TRIM LH ASM This part replaces 133-0100. Price: $372.57 |
| 7 |
535429101 |
NUT Price: $2.99 |
| 8 |
112-8936 |
TUBE-SUPPORT Price: $46.12 |
| 8 |
544400501 |
SCREW Price: $3.99 |
| 9 |
112-8935 |
FRAME-CENTER Price: $455.11 |
| 9 |
577737501 |
CONTROL COVER Price: $27.99 |
| 10 |
577764501 |
LOCKING NUT Price: $8.99 |
| 11 |
599145201 |
NEEDS DESCRIPTION Price: Call Us |
| 12 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 13 |
578776301 |
Price: Call Us |
| 14 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 18 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 19 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
