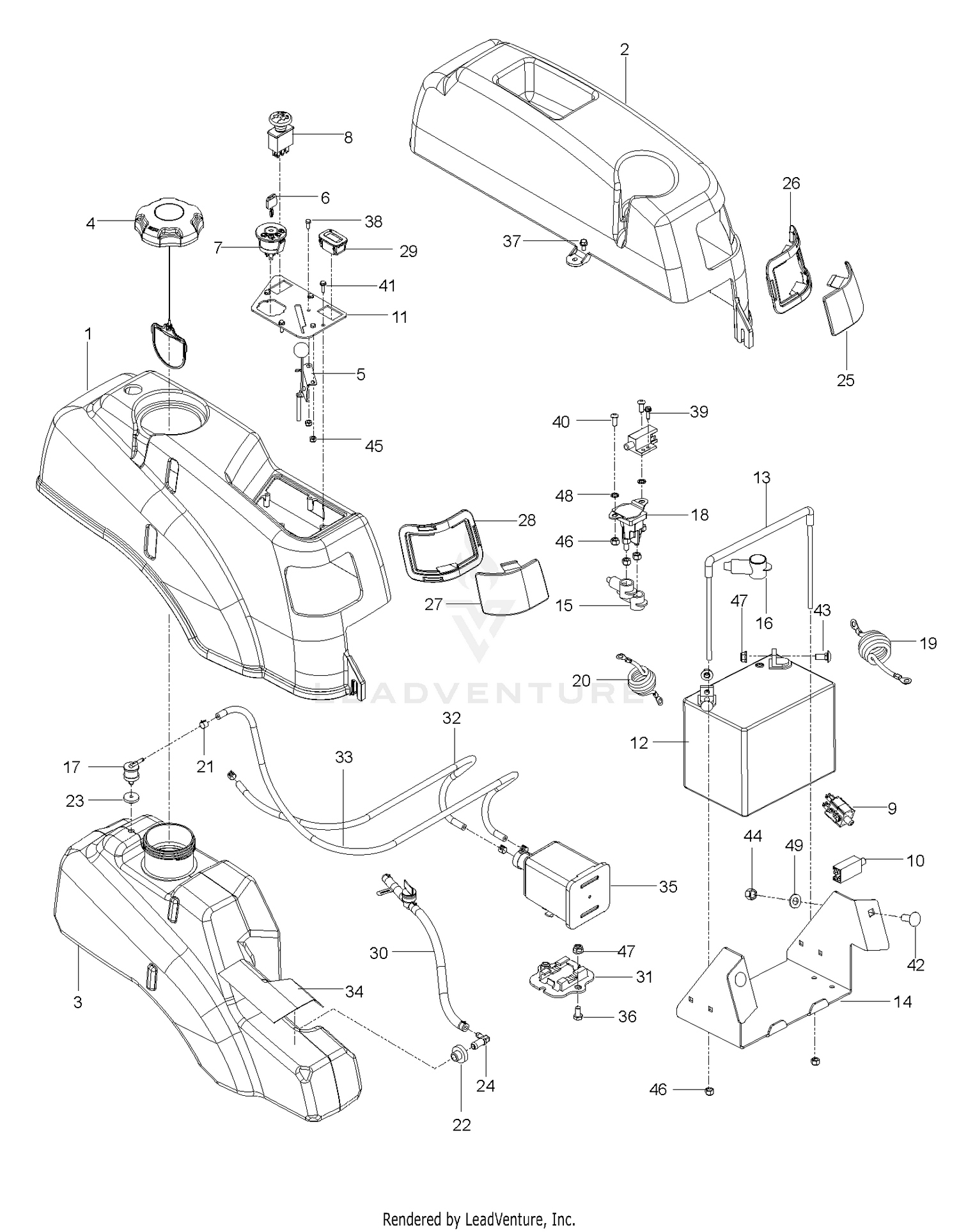

| Ref | Part Number | Description |
|---|
| 1 |
576370401 |
FENDER, RT, GRAY Price: $54.99 |
| 2 |
576370501 |
FENDER, LT, BLK Price: $74.99 |
| 3 |
599306304 |
FUEL TANK, RZ, 2.25" NECK, 202 This part replaces 576369401. Price: $229.99 |
| 4 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 5 |
522730101 |
CABLE, THROTTLE Price: $24.99 |
| 6 |
532140401 |
KEY MLD GEN DELTA This part replaces 539107544. Price: $5.99 |
| 7 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 8 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 539101768. Price: $24.99 |
| 9 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 10 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 11 |
539110305 |
PLATE.CONTROL.CONSOLE.BLACK Price: $27.99 |
| 12 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 13 |
539131209 |
BATTERY TIE DOWN ASSEMBLY Price: $27.99 |
| 14 |
510231302 |
BOX, BATTERY, BLACK Price: $89.99 |
| 15 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 17 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 18 |
539101714 |
SOLENOID Price: $22.99 |
| 19 |
539110068 |
BATTERY CABLE, NEGATIVE Price: $7.99 |
| 20 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 21 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 22 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 23 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 24 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 25 |
539110457 |
LEFT HEADLIGHT LENS This part replaces 539110056. Price: $4.99 |
| 26 |
539110455 |
LEFT HEADLIGHT RIM GREY Price: $4.99 |
| 27 |
539110453 |
RT HEADLIGHT LENS This part replaces 539110057. Price: $4.99 |
| 28 |
539110451 |
RT HEADLIGHT RIM GREY Price: $4.99 |
| 29 |
576179401 |
HOUR METER Price: $27.99 |
| 30 |
586123904 |
FUEL.HOSE.SHUT.OFF.ASM.10".3" This part replaces 576660701. Price: $11.99 |
| 31 |
575242701 |
BRACKET, CANISTER Price: $8.99 |
| 32 |
576660601 |
HOSE, VAPOR 3/16 X 39" Price: $11.99 |
| 33 |
576660604 |
HOSE, VAPOR 3/16 X 30" Price: $11.99 |
| 34 |
522559101 |
SHIELD, HEAT Price: $32.99 |
| 35 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 36 |
596031601 |
Screws This part replaces 539108392. Price: $2.99 |
| 37 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 38 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 39 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 40 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 41 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 42 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 43 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 44 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 45 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 46 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 47 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 48 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 49 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
