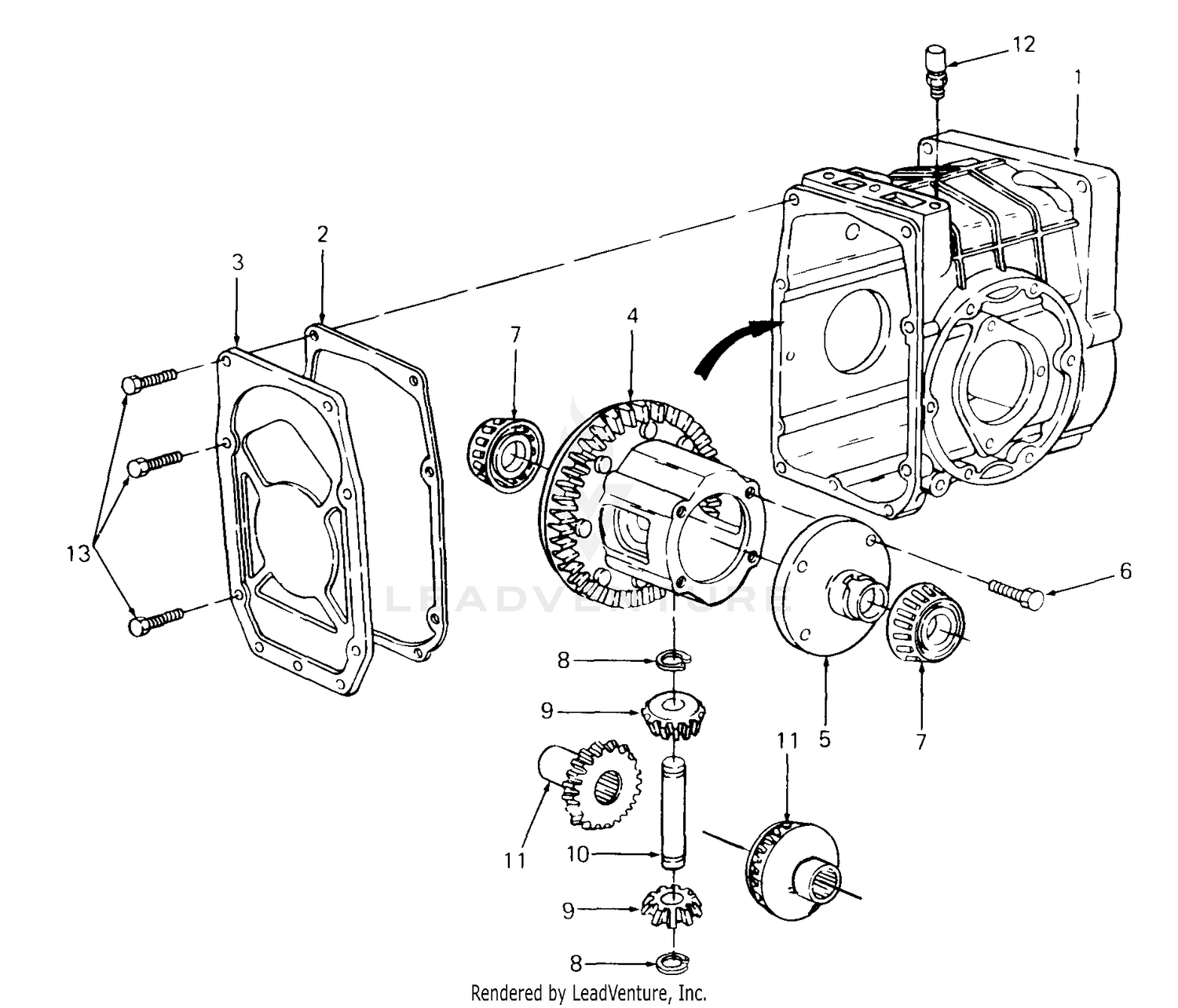

| Ref | Part Number | Description |
|---|
| 1 |
717-3204A |
HOUSING ASSEMBLY. AXLE Not Available Price: |
| 2 |
921-3015 |
GASKET This part replaces 721-3015. Price: $14.44 |
| 3 |
703-0905 |
PLATE-COVER-RR Not Available Price: |
| 4 |
717-3217 |
GEAR ASSY, RING W/CASE Not Available Price: |
| 5 |
717-3137 |
PLATE-FLANGE Not Available Price: |
| 6 |
710-0528 |
Bolt, Hex Patch, 5/16-18 X 1.25 Lg GR5 Price: $3.90 |
| 7 |
941-3038 |
ROLLER BEARING CONE This part replaces 741-3038. Price: $49.79 |
| 8 |
716-0133 |
RETAINING RING Not Available Price: |
| 9 |
717-3113 |
PINION-10T Not Available Price: |
| 10 |
717-3133 |
SHAFT-CROSS Not Available Price: |
| 11 |
717-3112 |
GEAR-SIDE-16T Not Available Price: |
| 12 |
723-3021 |
Breather, Housing Price: $20.30 |
| 503281809 |
503281809 |
CARBURETOR HDA-190 HEATED Price: $229.00 |
| 503281810 |
503281810 |
CARBURETOR HDA-191 HEATED Price: $149.99 |
| 503281815 |
503281815 |
CARBURETOR HDA-198 Price: $129.99 |
| 503281816 |
503281810 |
CARBURETOR HDA-191 HEATED This part replaces 503281816. Price: $149.99 |
| 537157901 |
537157901 |
CHOKE SHAFT Price: $6.99 |
