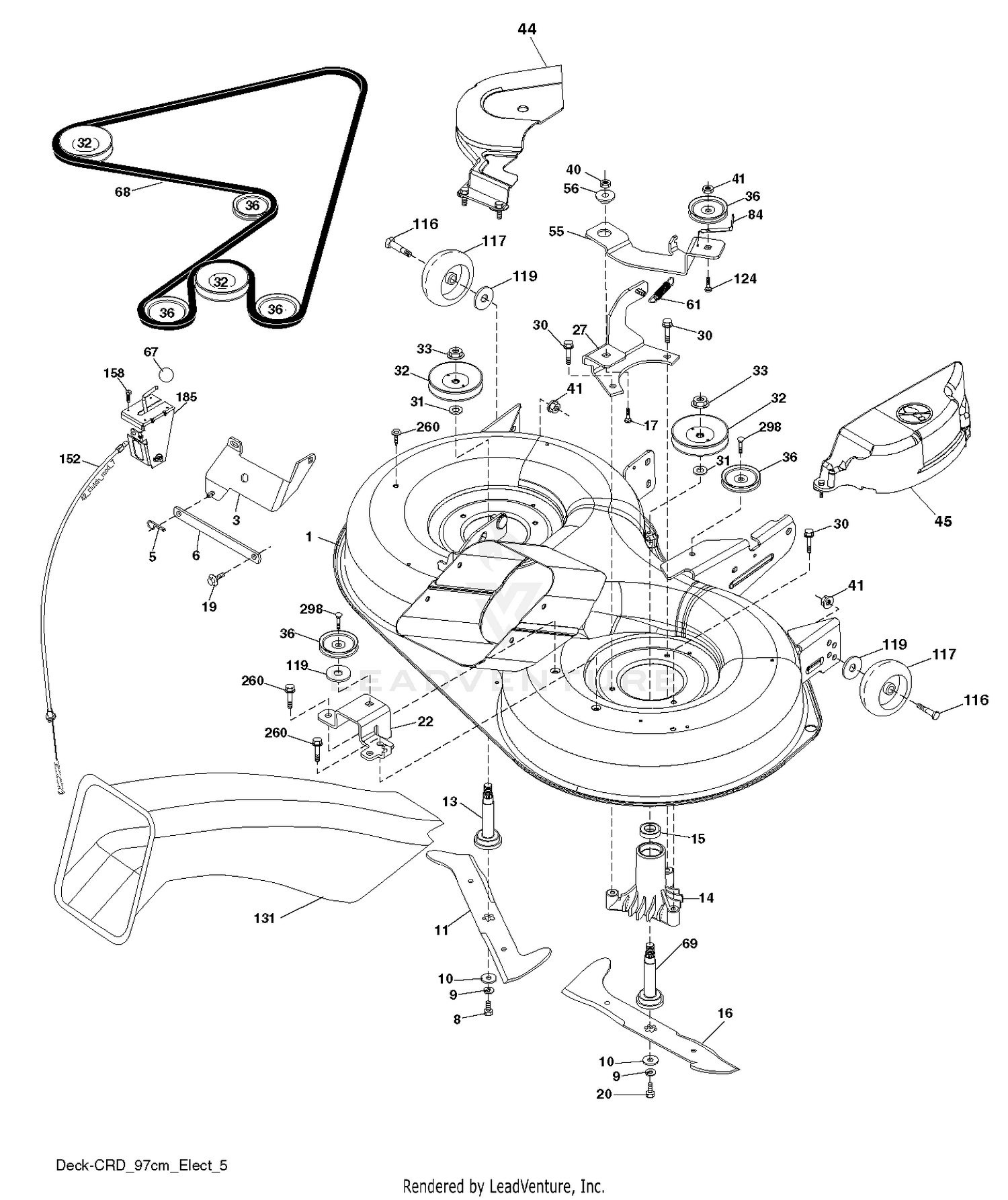

| Ref | Part Number | Description |
|---|
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 1 |
532429121 |
Price: $253.99 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM Price: $83.12 |
| 3 |
104-0059 |
HYD HOSE ASM Price: $139.13 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $14.99 |
| 4 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 6 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 6 |
532165557 |
BAR SWAY Price: $6.99 |
| 7 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 8 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 8 |
532181712 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched Price: $1.99 |
| 9 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 9 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 10 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 11 |
125-1906 |
PIN-CYLINDER This part replaces 105-9889. Price: $27.84 |
| 11 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $41.99 |
| 12 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 13 |
108-4435 |
CYLINDER-LIFT, HYD This part replaces 99-6987. Price: $791.42 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 15 |
106-5954 |
BRACKET-SWITCH Price: $16.74 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 16 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $41.99 |
| 17 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 17 |
872140610 |
BOLT.3/8-14X1.25 Price: $2.99 |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
112-6562 |
FLOW DIVIDER ASM This part replaces 105-3303. Price: $819.62 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 20 |
532181713 |
Bolt 3/8-24 x 1.25 Gr. 8 Ptch Price: $1.99 |
| 21 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 22 |
532431169 |
BRACKET.SUPT.IDLER.REAR.RH Price: $4.99 |
| 22 |
93-6687 |
DECAL-NO STEP Price: $14.45 |
| 23 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 24 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 27 |
532427981 |
BRACKET.ASM.SUSP.REAR.RH. Price: $19.99 |
| 30 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YELLOW This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 36 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 44 |
532434946 |
Price: Call Us |
| 45 |
532441479 |
Price: Call Us |
| 55 |
532199498 |
Arm Idler Price: $18.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 61 |
532199486 |
Price: $2.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532429532 |
BELT.DRIVE.CRD.97.2010 Price: $76.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $35.99 |
| 84 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8 Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 119 |
819132012 |
WASHER Price: $2.99 |
| 124 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $57.99 |
| 158 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $33.99 |
| 260 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 298 |
817490628 |
SCREW LT Price: $3.99 |
