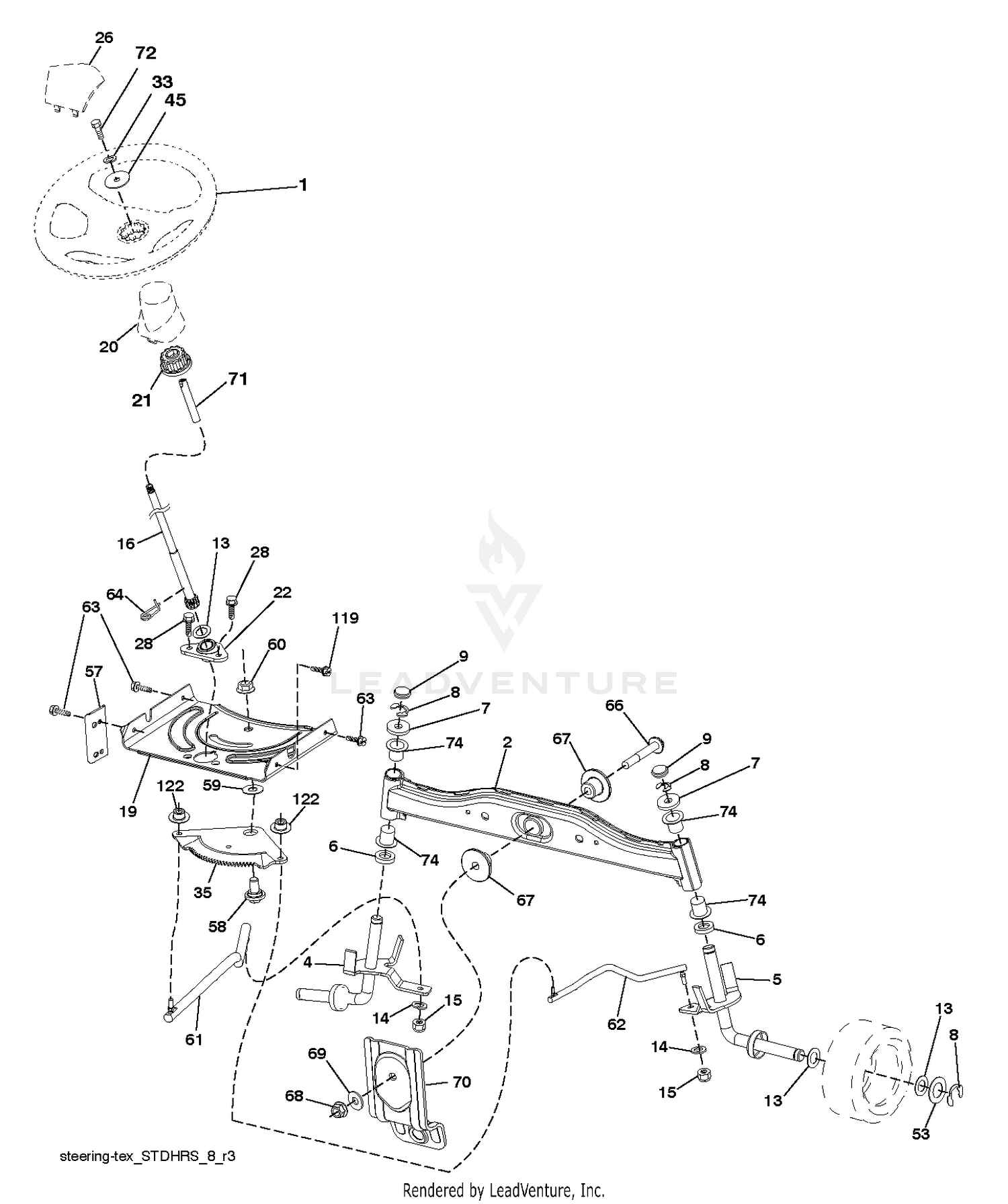

| Ref | Part Number | Description |
|---|
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
531171101 |
SERVICE KIT AXLE HALF ASM This part replaces 532418168. Price: $59.99 |
| 2 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 3 |
2412-133 |
CLAMP-R Price: $3.19 |
| 4 |
538690801 |
SPINDLE.WLDMT.LH.13IN BLK.X431 This part replaces 532416845. Price: $37.99 |
| 4 |
62-3010-01 |
BRACKET-RH This part replaces 62-3010. Price: $11.57 |
| 5 |
43-3900-03 |
FAN BELT GUARD ASM This part replaces 43-3900. Price: $290.98 |
| 5 |
538690701 |
SPINDLE.WLDMT.RH.13IN BLK.X431 This part replaces 532416846. Price: $34.99 |
| 6 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
62-3020-01 |
BRACKET-LH This part replaces 62-3020. Price: $12.72 |
| 11 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 12 |
67-8190-01 |
BRACKET-SUPPORT, ENGINE This part replaces 67-8190. Price: $50.66 |
| 13 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 16 |
587738903 |
KIT.SRVC.STEERINGSHAFT.3HISHFT This part replaces 532429373. Price: $44.99 |
| 18 |
212-93 |
CLAMP-CASING Price: $3.46 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 20 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 21 |
322-2 |
SCREW-HH Price: $0.69 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 23 |
237-30 |
O-RING Price: $2.50 |
| 24 |
43-8610 |
GUIDE Price: $23.35 |
| 25 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 26 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 28 |
237-7 |
O-RING Price: $8.82 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
218-461 |
NUT-HH Price: $2.50 |
| 30 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 31 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 32 |
86-7040 |
ROD-PROP, SEAT Price: $29.51 |
| 33 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts This part replaces 532428982. Price: $3.99 |
| 74 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 119 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
