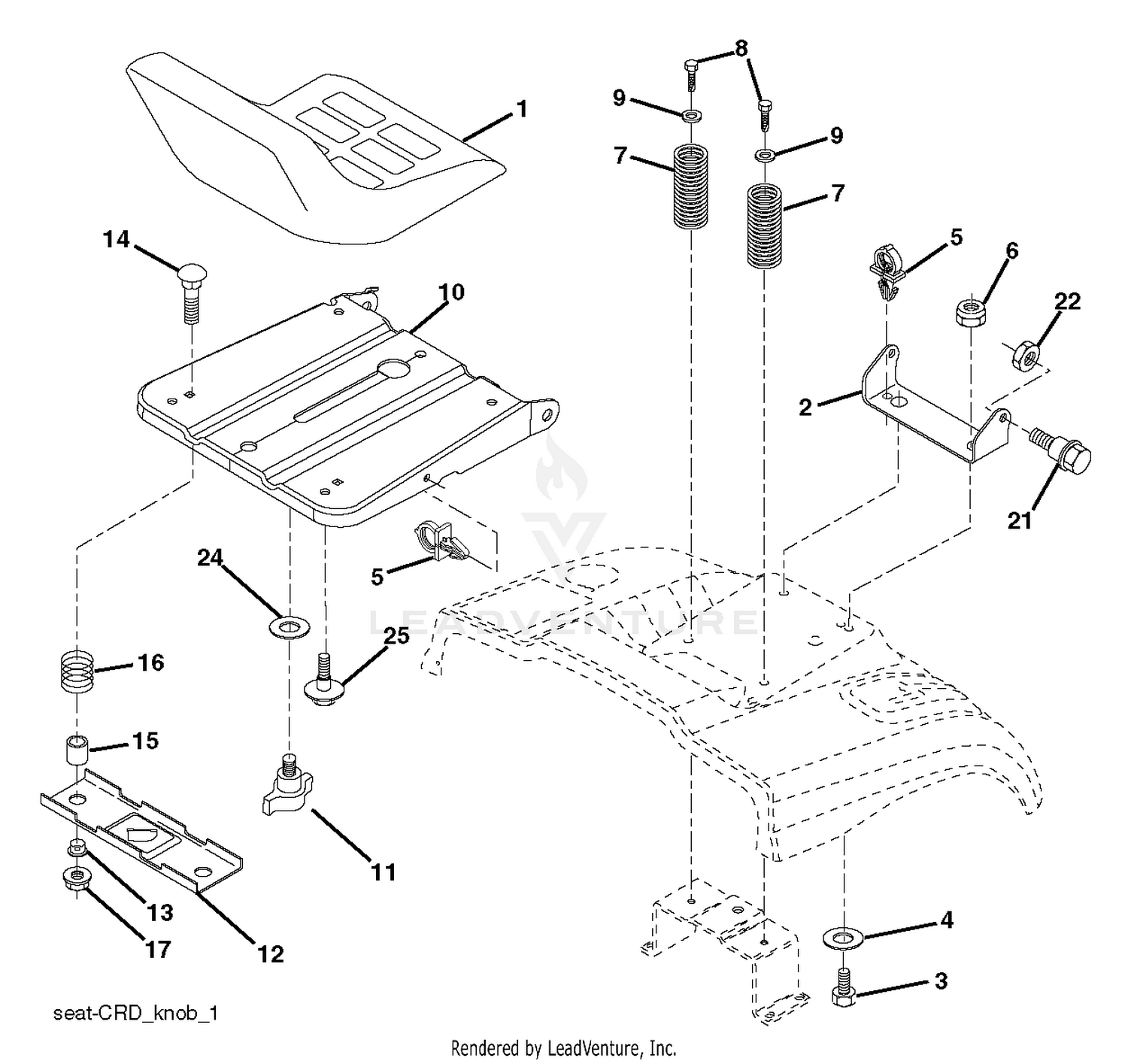

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532188713. Price: $149.99 |
| 1 |
784106 |
Lever Housing Assy., Shift (Incl. Nos. 2 thru 7) Model 2307-B Price: Call Us |
| 2 |
532140551 |
SEAT PIVOT BRKT Price: $3.99 |
| 2 |
792016 |
Ring-Snap Price: Call Us |
| 3 |
792001 |
O Ring Price: Call Us |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $2.99 |
| 4 |
792002 |
Roll Pin Price: Call Us |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
784093 |
Housing-Shift Lever Price: Call Us |
| 6 |
784094 |
Keeper-Shift Lever Price: Call Us |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 7 |
784107 |
Lever, Shift Price: Call Us |
| 8 |
784054 |
Rod Assy., Shift (Incl. Nos. 9 thru 12 24) Price: Call Us |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 9 |
792003 |
Spring Price: Call Us |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 10 |
792004 |
Piston ASM Price: Call Us |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
784004 |
Shift Fork Price: Call Us |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $4.99 |
| 12 |
784055 |
Rod, Shifter Price: Call Us |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 13 |
784056 |
Rod Assy., Shift (Incl. Nos. 9, 10, 11, 14 24) Price: Call Us |
| 14 |
784057 |
Rod, Shifter Price: Call Us |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 15 |
774163 |
Axle Price: Call Us |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 16 |
780042 |
Washer Price: Call Us |
| 17 |
792056 |
Screw, Hex Hd. Cap Price: Call Us |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 18 |
792006 |
Lockwasher Price: Call Us |
| 19 |
778080 |
Gear, Ring Price: Call Us |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 21 |
786052 |
Core, Body Price: Call Us |
| 22 |
778078 |
Gear, Pinion Price: Call Us |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 23 |
776029A |
Shaft Gear-Brake Price: Call Us |
| 24 |
792017 |
Ring-Snap Price: Call Us |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
776026 |
Shaft Bearing Assy., Pinion (Incl. No. 26) Price: Call Us |
| 26 |
780018 |
Bearing Price: Call Us |
| 27 |
778034 |
Gear Cluster Assy. (Incl. No. 28) Price: Call Us |
| 28 |
780053 |
Bushing Price: Call Us |
| 29 |
784074 |
Stop-Shifter Price: Call Us |
| 30 |
788023 |
Gasket-Case Cover Price: Call Us |
| 31 |
788022 |
Gasket-Lever Housing Price: Call Us |
| 32 |
778050 |
Gear, Shifting (3rd 4th) Price: Call Us |
| 33 |
778020 |
Gear, Shifting Price: Call Us |
| 34 |
778079 |
Gear, Side Price: Call Us |
| 35 |
778037 |
Gear-Spur Price: Call Us |
| 36 |
778049 |
Gear Cluster Assy. (Incl.28) Price: Call Us |
| 37 |
786024 |
Spacer Price: Call Us |
| 38 |
792018 |
Ring-Snap Price: Call Us |
| 39 |
776053 |
Shaft, Input Price: Call Us |
| 40 |
778024 |
Gear (10 teeth) Price: Call Us |
| 41 |
780052 |
Washer-Thrust Price: Call Us |
| 42 |
788036 |
Seal Retainer Assy., Oil (Incl. No. 45) Price: Call Us |
| 43 |
778036 |
Gear-Output Price: Call Us |
| 44 |
778052 |
Pinion, Output Price: Call Us |
| 45 |
788008 |
Seal-Oil Price: Call Us |
| 47 |
772041 |
Cover Assy., Transaxle (Incl. Nos.54,55,57,59,63 Price: Call Us |
| 48 |
770029 |
Case Assy., Transaxle (Incl. Nos. 54, 55, 57 63) Price: Call Us |
| 49 |
792007 |
Screw Price: Call Us |
| 49A |
792031 |
Screw Price: Call Us |
| 50 |
786026 |
Dowel Pin Price: Call Us |
| 52 |
792019 |
Plug-Magnetic Drain Price: Call Us |
| 53 |
792055 |
Nut Price: Call Us |
| 54 |
780049 |
Bearing-Needle Price: Call Us |
| 55 |
780022 |
Bearing, Needle Price: Call Us |
| 57 |
780047 |
Bearing-Needle Price: Call Us |
| 59 |
780046 |
Bearing-Needle Price: Call Us |
| 61 |
780001 |
Washer Price: Call Us |
| 62 |
776031 |
Shaft Pinion Price: Call Us |
| 63 |
780048 |
Bearing Needle Price: Call Us |
| 64 |
776030 |
Shaft-Reverse Idler Price: Call Us |
| 65 |
786025 |
Spacer-Reverse Idler Price: Call Us |
| 66 |
778051 |
Idler-Reverse Price: Call Us |
| 67 |
778038 |
Gear-Spur (22 Teeth) Price: Call Us |
| 68 |
780039 |
Bearing-Thrust Price: Call Us |
| 69 |
774141 |
Carrier, Differential Price: Call Us |
| 70 |
774142 |
Carrier, Differential Price: Call Us |
| 71 |
792060 |
Tab, Locking Price: Call Us |
| 72 |
788024 |
O-Ring Price: Call Us |
| 73 |
780007 |
Washer-Thrust Price: Call Us |
| 74 |
780051 |
Washer Price: Call Us |
| 75 |
792010 |
Plug Price: Call Us |
