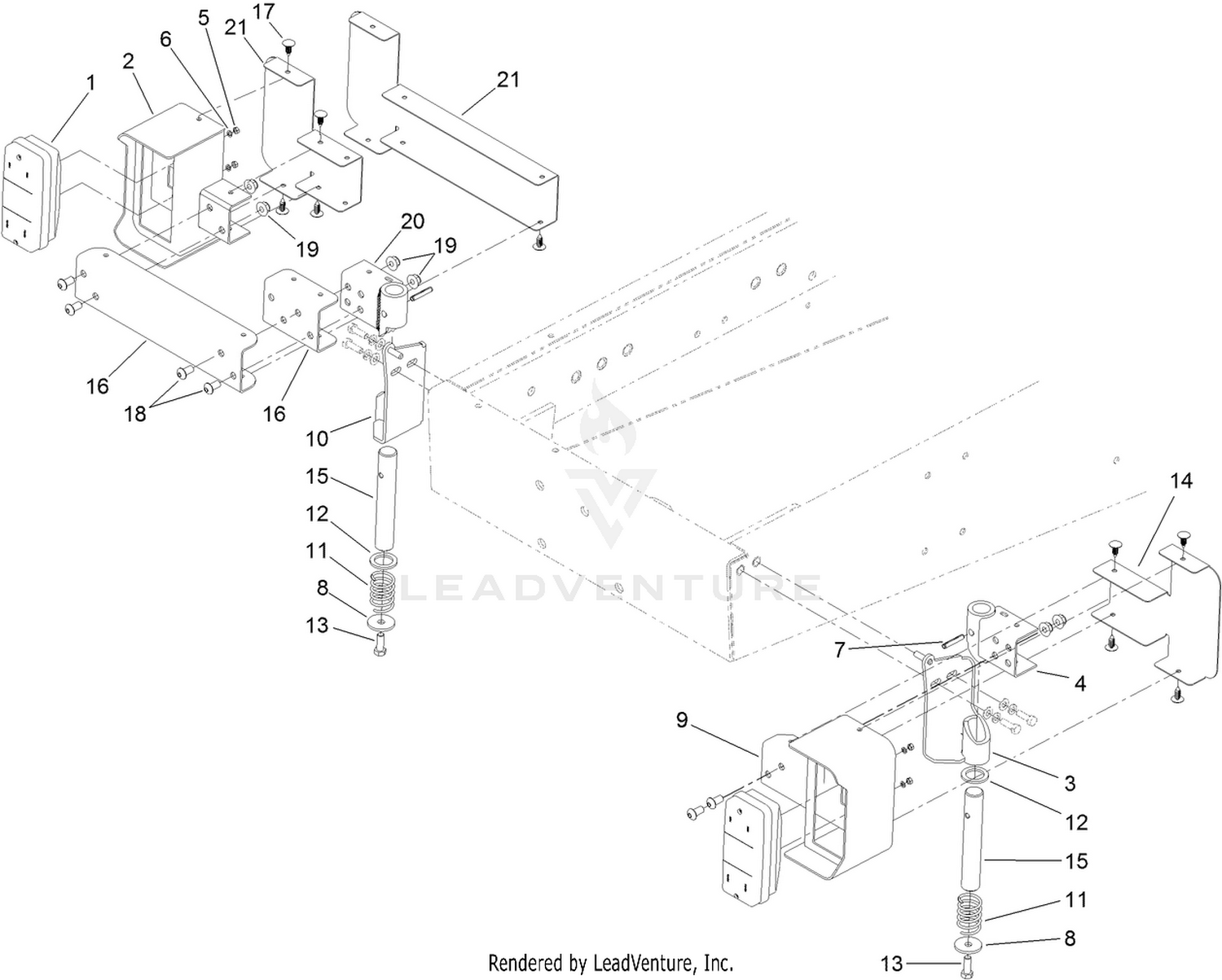

| Ref | Part Number | Description |
|---|
| 1 |
119-8093 |
TAIL LIGHT ASM Price: $184.00 |
| 2 |
121-9428-03 |
LH-REAR LAMP MOUNT ASM Price: $104.64 |
| 3 |
121-9425-03 |
RH-REAR, LOWER PIVOT ASM Price: $85.29 |
| 4 |
121-9427-03 |
RH-REAR, UPPER PIVOT ASM Price: $75.84 |
| 5 |
48-7880 |
NUT-HEX Price: $0.25 |
| 6 |
43-5920 |
WASHER-LOCK, SPRING This part replaces 48-8000. Price: $0.25 |
| 7 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 8 |
1-213069 |
WASHER Price: $2.19 |
| 9 |
121-9430-03 |
RH-REAR LAMP MOUNT ASM Price: $104.64 |
| 10 |
121-9420-03 |
LH-REAR, LOWER PIVOT ASM Price: $85.29 |
| 11 |
61-3270-03 |
SPRING-COMPRESSION Price: $12.24 |
| 12 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 13 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
121-9434-03 |
PANEL-REARLAMP, RH Price: $45.98 |
| 15 |
121-9421 |
PIN-PIVOT REAR Price: $60.75 |
| 16 |
121-6436-03 |
CHANNEL-REAR, SHORT Price: $37.28 |
| 16 |
121-6437-03 |
CHANNEL-REAR, LONG Price: $46.57 |
| 17 |
117-2382 |
PLUG-PLASTIC Price: $0.69 |
| 18 |
3274-80 |
SCREW-HH Price: $1.76 |
| 19 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 20 |
121-9423-03 |
RH-REAR, UPPER PIVOT ASM Price: $88.43 |
| 21 |
120-6614-03 |
PANEL-REARLAMP, LONG Price: $57.45 |
