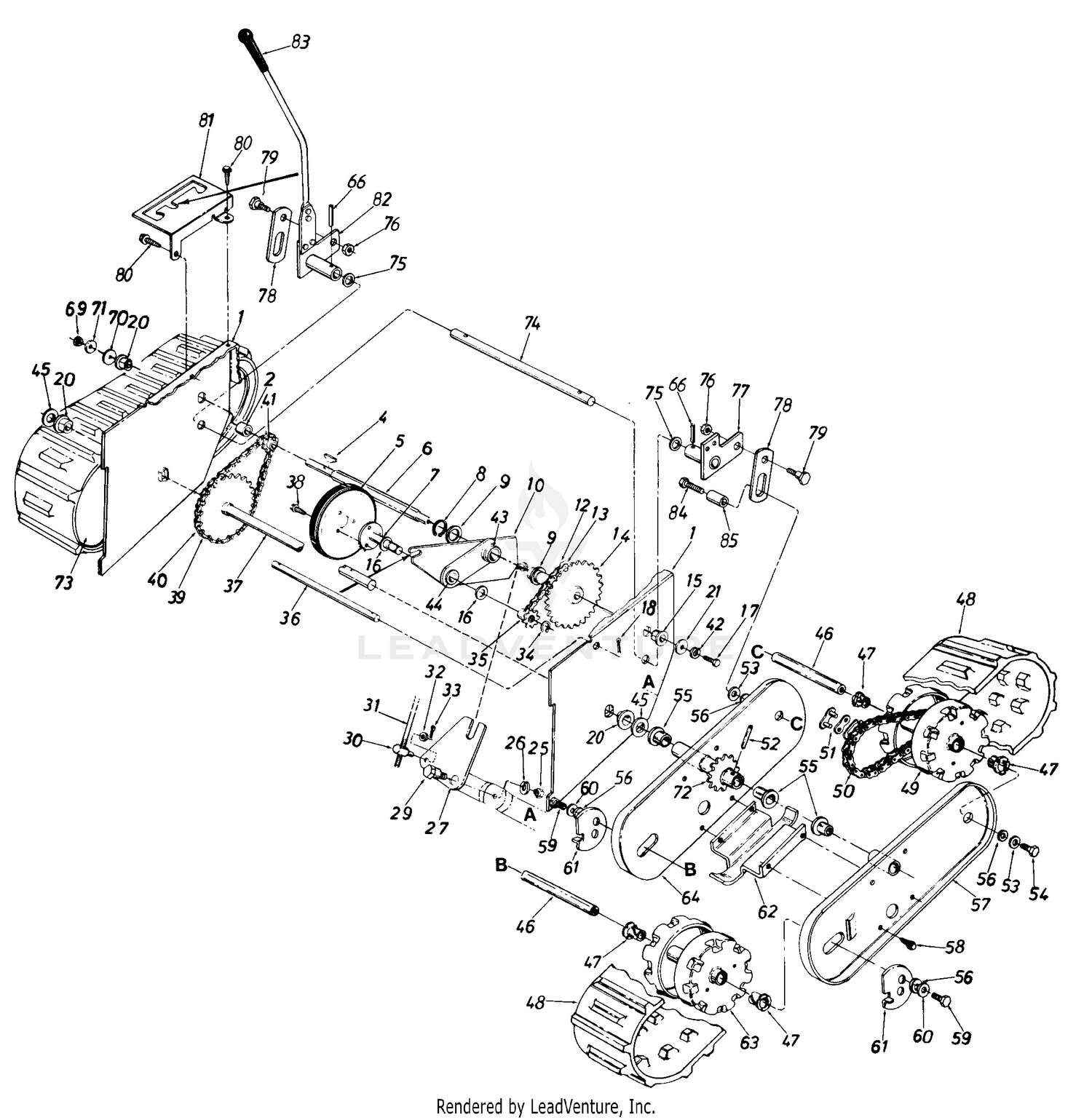

| Ref | Part Number | Description |
|---|
| 1 |
784-5197 |
FRAME ASSEMBLY Not Available Price: |
| 2 |
750-0499 |
Spacer .50" I.D. x .75" O.D. x.78" Lg. Price: $20.80 |
| 4 |
914-0129 |
KEY-HI-PRO #4-3/32X5/8 DIA Not Available This part replaces 714-0129. Price: |
| 5 |
05080AP |
Friction Wheel Ass'y. This part replaces 05080. Price: $28.61 |
| 6 |
738-0496 |
HEX SHAFT Not Available Price: |
| 7 |
05883 |
PLATE ASSEMBLY Not Available Price: |
| 8 |
716-0102 |
Snap Ring 1.00" Dia. Shaft Price: $4.40 |
| 9 |
736-0163 |
Fl-Wash. 1.00" x 1.63" O.D. x .03 Price: $4.05 |
| 10 |
05880 |
BRACKET AS Not Available Price: |
| 15 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 16 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 17 |
710-0538 |
Hex Lock Bolt 5/16-18 x .62" Lg. Price: $4.02 |
| 18 |
714-0507 |
Cotter Pin 3132" Dia. x .75" Lg. Price: $3.93 |
| 20 |
941-0490 |
Flange Brg. w/Flats .75" I.D. This part replaces 741-0490. Price: $11.60 |
| 21 |
736-0231 |
Fl-Wash. .34" I.D. x 1.12" O.D. x .125 Price: $4.02 |
| 25 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 26 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 29 |
738-0281 |
Shld. Bolt .625" Dia. x .170" Lg. Price: $9.16 |
| 30 |
911-0677 |
Engagement Ferru This part replaces 711-0677. Price: $15.59 |
| 31 |
747-0356 |
ROD-SHIFT Not Available Price: |
| 32 |
736-0264 |
Fl-Wash. .34" I.D. x .64" O.D. x .06 Price: $5.99 |
| 33 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Lg. Price: $3.93 |
| 34 |
716-0397 |
RETAINING RING Not Available This part replaces 716-0145. Price: |
| 35 |
713-0280 |
SPROCKET-7T Not Available Price: |
| 36 |
738-0497 |
Shaft .50" Dia. x 9.50" Lg. Price: Call Us |
| 37 |
713-0323 |
AXLE ASSEMBLY-WHEEL Not Available Price: |
| 38 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 39 |
713-0287 |
CHAIN Not Available Price: |
| 41 |
748-0204 |
CENTER SPROCKET #41-8T Not Available Price: |
| 42 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 43 |
741-04488 |
Bearing This part replaces 741-0476. Price: $8.17 |
| 44 |
748-0184 |
FLANGE BEARING .630 ID Not Available Price: |
| 45 |
736-0188 |
Fl-Wash. .76" I.D. x 1.49 O.D. Price: $3.75 |
| 46 |
738-0684 |
SHAFT-WHEEL Not Available Price: |
| 47 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0313. Price: $6.87 |
| 48 |
731-0775 |
Snow Track 5" x 48" Price: $276.46 |
| 49 |
784-5310 |
Drive Wheel Ass'y. Price: Call Us |
| 52 |
715-0114 |
Spring Pin Spir. 1/4" Dia. x 1.50" Lg. Price: $8.68 |
| 53 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 54 |
710-0237 |
Hex Bolt 5/16-24 x .62" Lg. Price: $3.93 |
| 55 |
741-0382 |
FLANGE BEARING Not Available Price: |
| 56 |
736-0326 |
Fl-Wash. .510" I.D. x 1.0" O.D. Price: $3.89 |
| 57 |
784-5305 |
PLATE ASSEMBLY-OUTER (LH) Not Available Price: |
| 58 |
710-0599 |
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. Price: $3.86 |
| 59 |
710-0237 |
Hex Bolt 5/16-24 x .62" Lg. Price: $3.93 |
| 60 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 61 |
784-5312A |
TRACK ADJUSTER Not Available This part replaces 784-5312. Price: |
| 62 |
784-5301 |
SKID SHOE Not Available Price: |
| 63 |
784-5311 |
IDLER ASSEMBLY- Not Available Price: |
| 64 |
784-5453 |
Inner Plate Ass'y.-L.H. Price: Call Us |
| 66 |
715-0143 |
Spring Pin 1/4" x 1.25" Lg. Price: $4.04 |
| 69 |
712-0200A |
Hex Ins. L-Nut 1/2-20 Thd. This part replaces 712-0200. Price: $3.85 |
| 70 |
736-0179 |
Fl-Wash. 1/2" I.D. x .93" O.D. This part replaces 736-0257. Price: $4.02 |
| 71 |
736-0253 |
Bell-Wash. .50 I.D. x 1.0 O.D. x .075 Price: $3.58 |
| 73 |
784-5454 |
PLATE ASSEMBLY-INNER (RH) Not Available Price: |
| 74 |
738-0734 |
Track Lock Axle Price: Call Us |
| 75 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 76 |
712-0375 |
Hex L-Nut 3/8-16 Thd. Price: $4.02 |
| 77 |
784-5422 |
Pivot Arm Ass'y.-L.H. Price: Call Us |
| 78 |
784-5424 |
LINK-SLOTTED Not Available Price: |
| 79 |
738-0322A |
Shoulder Screw, .625 Dia. x .21 This part replaces 7380322. Price: $5.94 |
| 80 |
710-0726 |
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 81 |
784-5450 |
PLATE-POS SELECTOR Not Available Price: |
| 82 |
784-5421 |
HANDLE ASSY-LOCK Not Available Price: |
| 83 |
720-0143 |
GRIP Not Available Price: |
| 84 |
710-0672 |
Hex Bolt 5/16-24 x 1.25" Lg. Gr. 5 Price: $3.85 |
