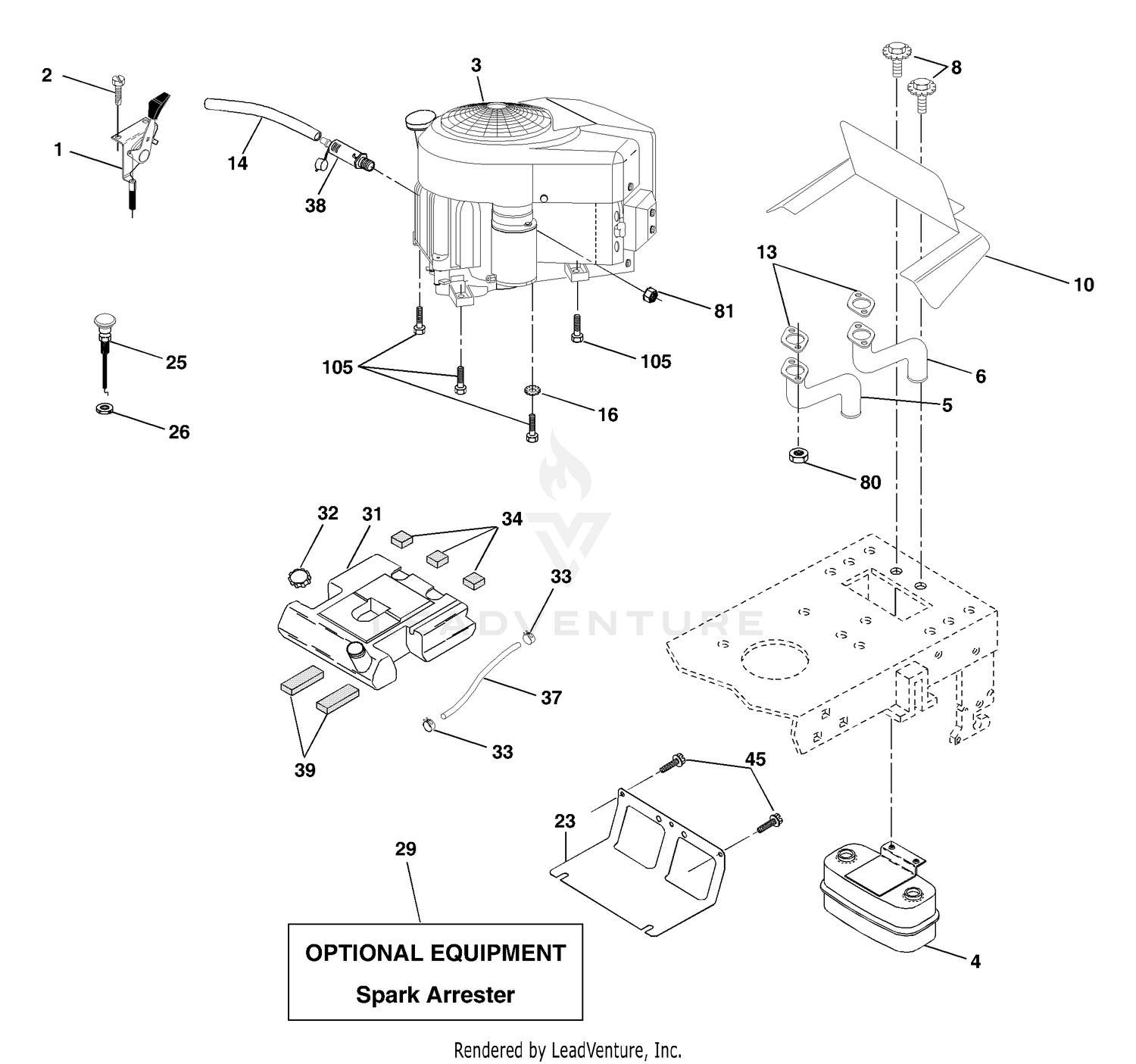

| Ref | Part Number | Description |
|---|
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
108-1402 |
GEAR CASE ASM This part replaces 99-8381. Price: $859.88 |
| 5 |
532176067 |
EXHAUST.TUBE.LH.KAWASAKI. Price: $99.99 |
| 6 |
532176068 |
EXHAUST.TUBE.RH.KAWASAKI. Price: $99.99 |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
98-9372 |
O-RING Price: $1.66 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
98-7547 |
O-RING Price: $0.92 |
| 9 |
98-9356 |
BOLT Price: $2.06 |
| 10 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 12 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 13 |
532178591 |
GASKET, MUFFLER Price: $4.99 |
| 13 |
98-9437 |
BOLT Price: $1.05 |
| 14 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 26 |
873920600 |
Nut, Keps 3/8-24 Unf Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 80 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
