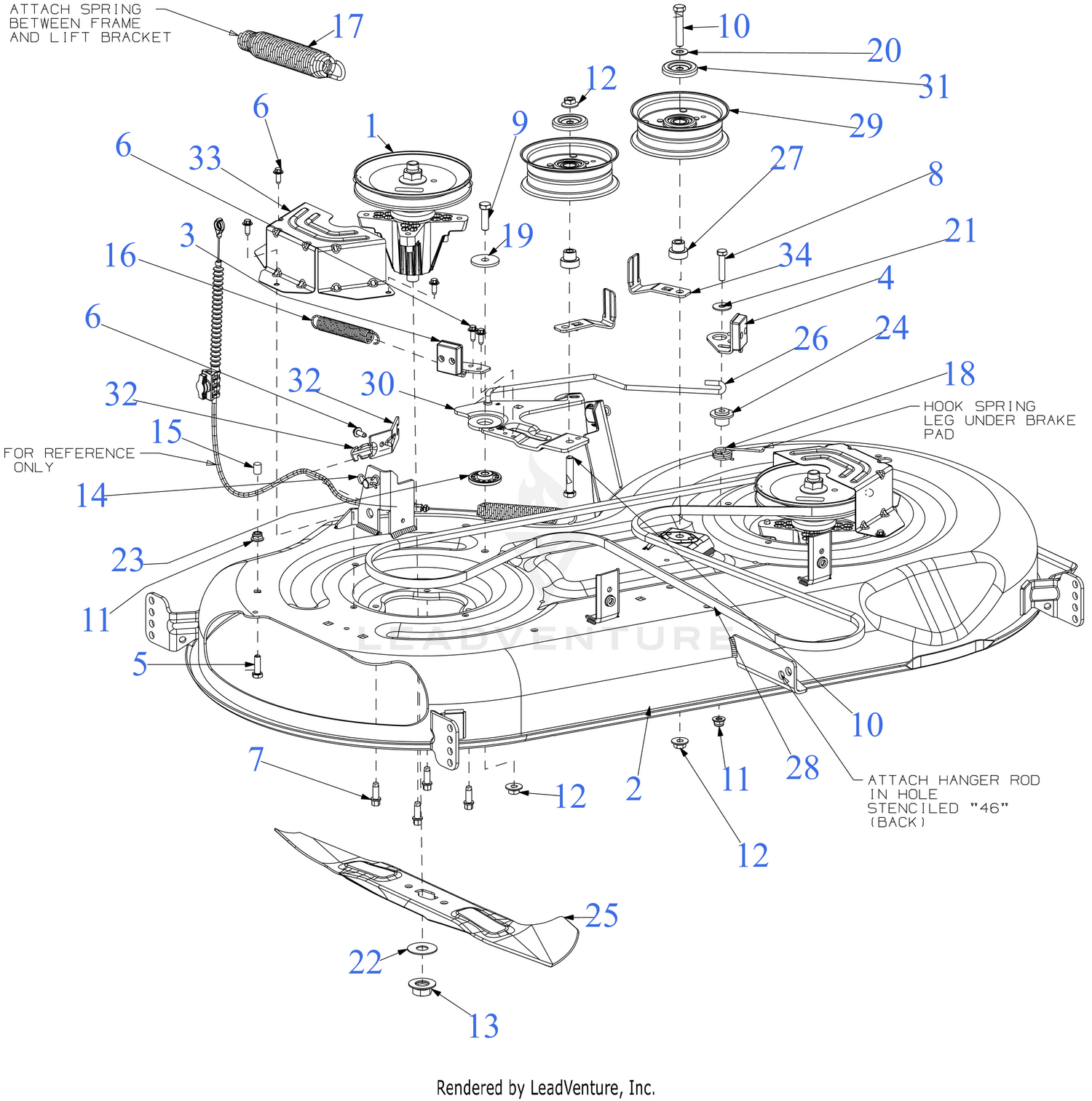

| Ref | Part Number | Description |
|---|
| 3 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) Price: $87.42 |
| 4 |
983-05396 |
DECK BRAKE ASSEMBLY Price: $88.32 |
| 5 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 6 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 7 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 8 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 9 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 10 |
710-3096 |
SCREW 3/8-16 x 2.0 GR 8 Price: $7.03 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 13 |
712-07050 |
HEX FLANGE NUT 5/8-18 GR5 Price: $5.16 |
| 14 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 15 |
720-05010 |
VINYL CAP Price: $3.70 |
| 16 |
732-04629 |
EXTENSION SPRING Price: $25.15 |
| 17 |
732-05241A |
LIFT ASSIST SPRING (SMALL) Price: $18.42 |
| 18 |
732-08321 |
TORSION SPRING Price: $6.11 |
| 19 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 20 |
736-05080 |
FLAT WASHER .401X.88 Price: $2.72 |
| 21 |
736-3078 |
FLAT WASHER 344X1.00 Price: $3.95 |
| 22 |
736-3088 |
FLAT WASHER .635X1.585X.062 HDN Price: $3.90 |
| 23 |
738-05099 |
SHOULDER SPACER Price: $6.47 |
| 24 |
738-05272 |
DOUBLE SHOULDER SPACER .750 x .135 Price: $6.24 |
| 26 |
747-06452 |
DECK BRAKE ROD Price: $12.90 |
| 27 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 28 |
954-05022A |
V-BELT A SEC x 108.3 Price: $59.35 |
| 29 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 31 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 32 |
783-08406-0637 |
ENGAGEMENT CABLE BRACKET Price: $8.29 |
