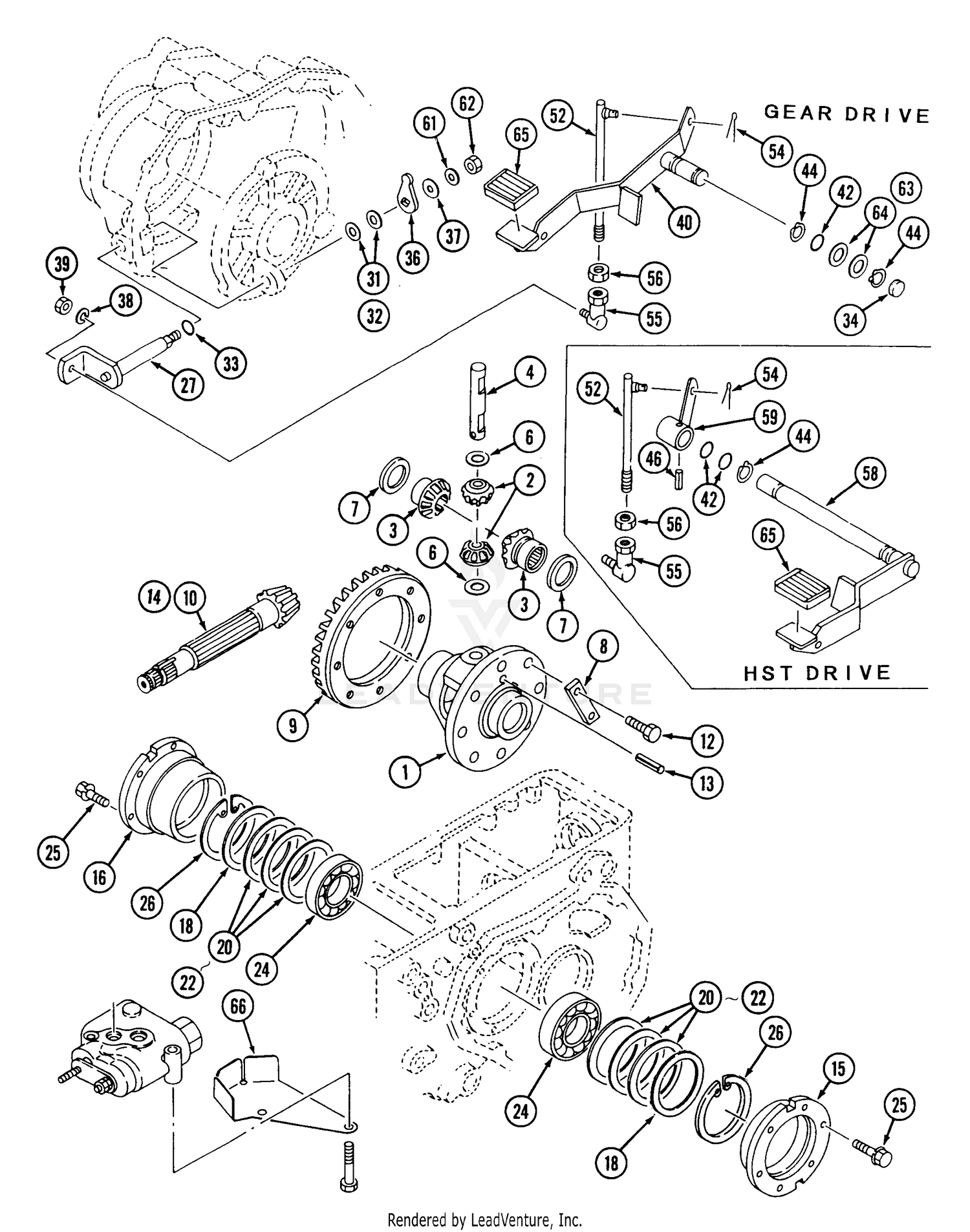

Final Drive (Gear Drive) - 2WD
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 74-9370 | CAPSCREW This part replaces 93-6388. Price: $5.40 |
| 2 | 143388 | NAMEPLATE.HD.WIZA Price: Call Us |
| 2 | 74-8920 | WASHER-COPPER This part replaces 93-6389. Price: $37.32 |
| 2 | MA-10211412001 | PINION Not Available Price: |
| 3 | 151253 | DECAL.HD.RH.WIZRD Price: Call Us |
| 3 | 49-2640 | SEAL-SHAFT This part replaces 93-6387. Price: $14.83 |
| 3 | MA-10211413001 | GEAR Not Available Price: |
| 4 | 151255 | DECAL.HD.LH.WIZRD Price: Call Us |
| 4 | MA-10211414000 | SHAFT,PINI Not Available Price: |
| 5 | 127520 | NLA Price: Call Us |
| 6 | 151477 | DECAL.GRILLE.WIZ+ Price: Call Us |
| 6 | MA-10211415001 | THRUST WASHER Not Available Price: |
| 7 | MA-10211416001 | THRUST WASHER Not Available Price: |
| 8 | MA-10211417000 | WASHER Not Available Price: |
| 9 | None | Gear Ring |
| 11 | 4900J | DECAL T Price: Call Us |
| 12 | MA-A0400110020 | BOLT Not Available Price: |
| 13 | MA-05500006040 | SPRING PIN Not Available Price: |
| 14 | None | Shaft Pinion |
| 14 | 93-6414 | PLUG/O-RING ASM Price: $40.02 |
| 15 | 99-8590 | PLATE-BACK This part replaces 93-6377. Price: $1,562.99 |
| 15 | MA-19641431000 | HOLDER L.H Not Available Price: |
| 16 | 93-6420 | SPOOL Price: $670.71 |
| 16 | MA-19641432000 | HOLDER R.H Not Available Price: |
| 17 | 145005 | DECAL.BATRY.3-3908 Price: Call Us |
| 17 | 88-3770 | SPRING This part replaces 93-6421. Price: $13.99 |
| 18 | 141619 | DECAL INS STG WHL Price: Call Us |
| 18 | 93-6422 | SHIM Price: $2.15 |
| 18 | MA-19641434000 | LINER Not Available Price: |
| 19 | 60-5710 | PLUG This part replaces 93-6423. Price: $13.84 |
| 20 | 141517 | DECAL DECK WIZ + Price: Call Us |
| 20 | 93-6416 | RELIEF VALVE ASM Price: $694.62 |
| 20 | MA-19641435000 | LINER Not Available Price: |
| 21 | 60-3520 | O-RING Price: $4.57 |
| 22 | MA-19641437000 | LINER Not Available Price: |
| 23 | 106202X | REFLECTOR-TAIL YT Price: Call Us |
| 24 | MA-10211438000 | BALL BEARING Not Available Price: |
| 25 | MA-F1540108025 | BOLT,W/SPRING WASH Not Available Price: |
| 26 | MA-07410009501 | RING, SNAP Not Available Price: |
| 27 | MA-19641439AG0 | SHIFTER Not Available Price: |
| 31 | MA-07310001504 | LINER Not Available Price: |
| 32 | MA-07310001512 | LINER Not Available Price: |
| 33 | MA-08301100120 | O-RING Not Available This part replaces MA-08300100120. Price: |
| 34 | MA-08340020070 | SEAL CAP 14 Not Available Price: |
| 36 | MA-19641438000 | ARM Not Available Price: |
| 37 | MA-03500151026 | WASHER Not Available Price: |
| 38 | MA-A3600100802 | WASHER SPRING Not Available Price: |
| 39 | MA-A3010108002 | NUT Not Available Price: |
| 40 | MA-19641441AG0 | PEDAL DIFF Not Available Price: |
| 42 | MA-08300100160 | O-RING Not Available Price: |
| 44 | MA-07400002000 | RING, SNAP Not Available Price: |
| 52 | MA-19641442000 | ROD Not Available Price: |
| 54 | MA-05200130020 | COTTER PIN Not Available Price: |
| 55 | MA-37041577000 | JOINT,BALL Not Available Price: |
| 56 | MA-A3030110002 | NUT Not Available Price: |
| 61 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 62 | MA-A3030110002 | NUT Not Available Price: |
| 63 | MA-07310002004 | LINER Not Available Price: |
| 64 | MA-07310002004 | LINER Not Available Price: |
| 65 | MA-10320228000 | COVER PEDAL Not Available Price: |
| 133671 | FOOTREST | PAD Price: Call Us 133671 |
| 138311 | DECAL | HANDLE LIFT Price: Call Us 138311 |
