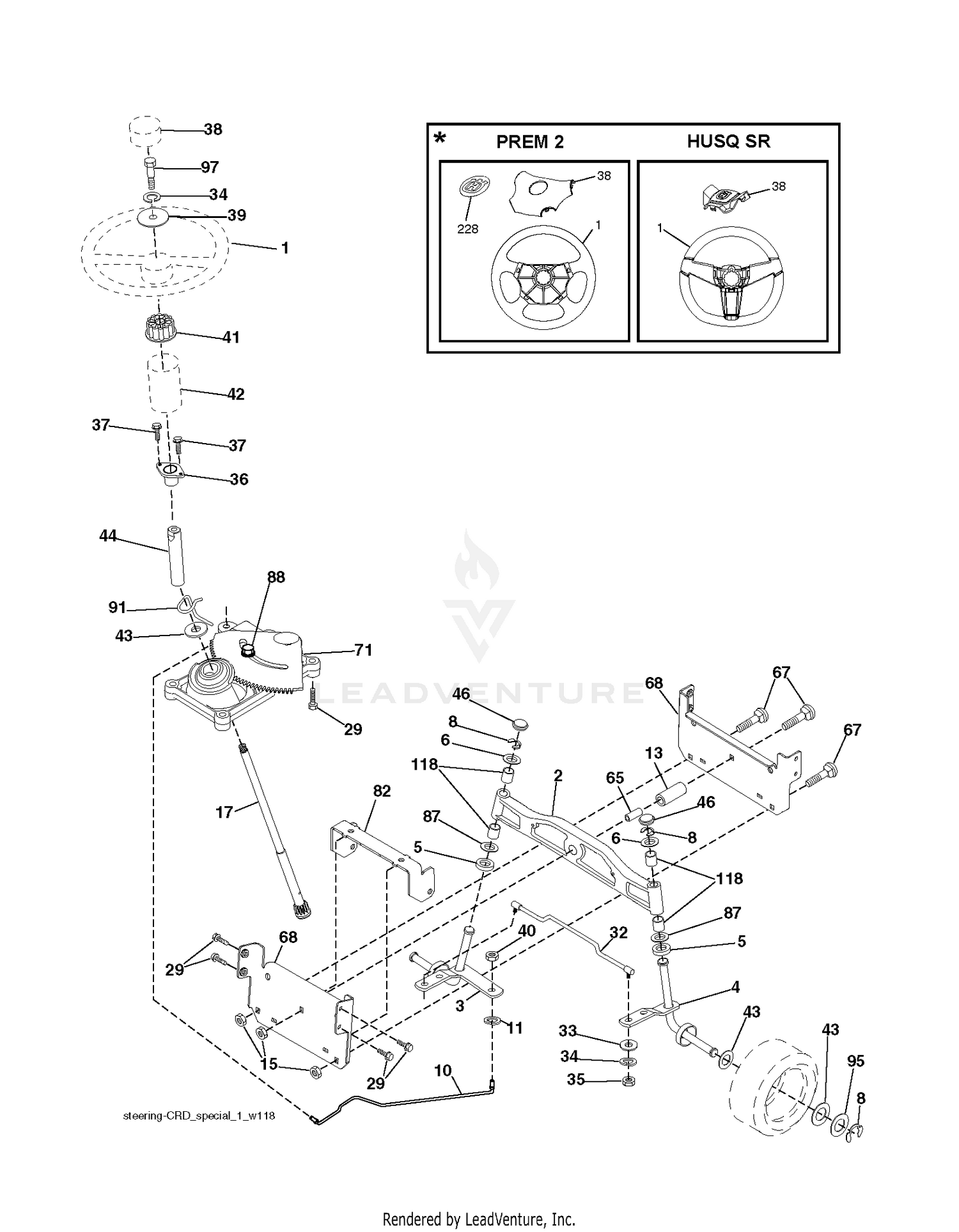

| Ref | Part Number | Description |
|---|
| 1 |
110-4752 |
CASE-GEAR, BEVEL Price: $237.26 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD This part replaces 532416480. Price: $69.99 |
| 2 |
110-4754 |
SEAL-OIL Price: $10.36 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
104-2378 |
BUSHING Price: $40.73 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
106-1069 |
O-RING Price: $5.20 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
104-2373 |
KNUCKLE Price: $58.69 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
104-2374 |
BOLT Price: $6.33 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
100-3768 |
LH STEERING ARM ASM Price: $207.28 |
| 8 |
100-3766 |
RH STEERING ARM ASM Price: $207.28 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 10 |
95-7548 |
SHIM 0.2 Price: $3.52 |
| 10 |
95-7549 |
SHIM 0.3 Price: $3.82 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
104-2375 |
BOLT Price: $18.54 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $37.99 |
| 18 |
106-1141 |
STEERING TIE ROD ASM Price: $642.02 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 39 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 42 |
532441425 |
STEERING.BOOT.HUSQ.LT This part replaces 532411139. Price: $7.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532199978. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 97 |
874780564 |
BOLT Price: $4.99 |
| 228 |
532404484 |
DECAL.WHEEL.STRG.LGN.H Price: $7.99 |
