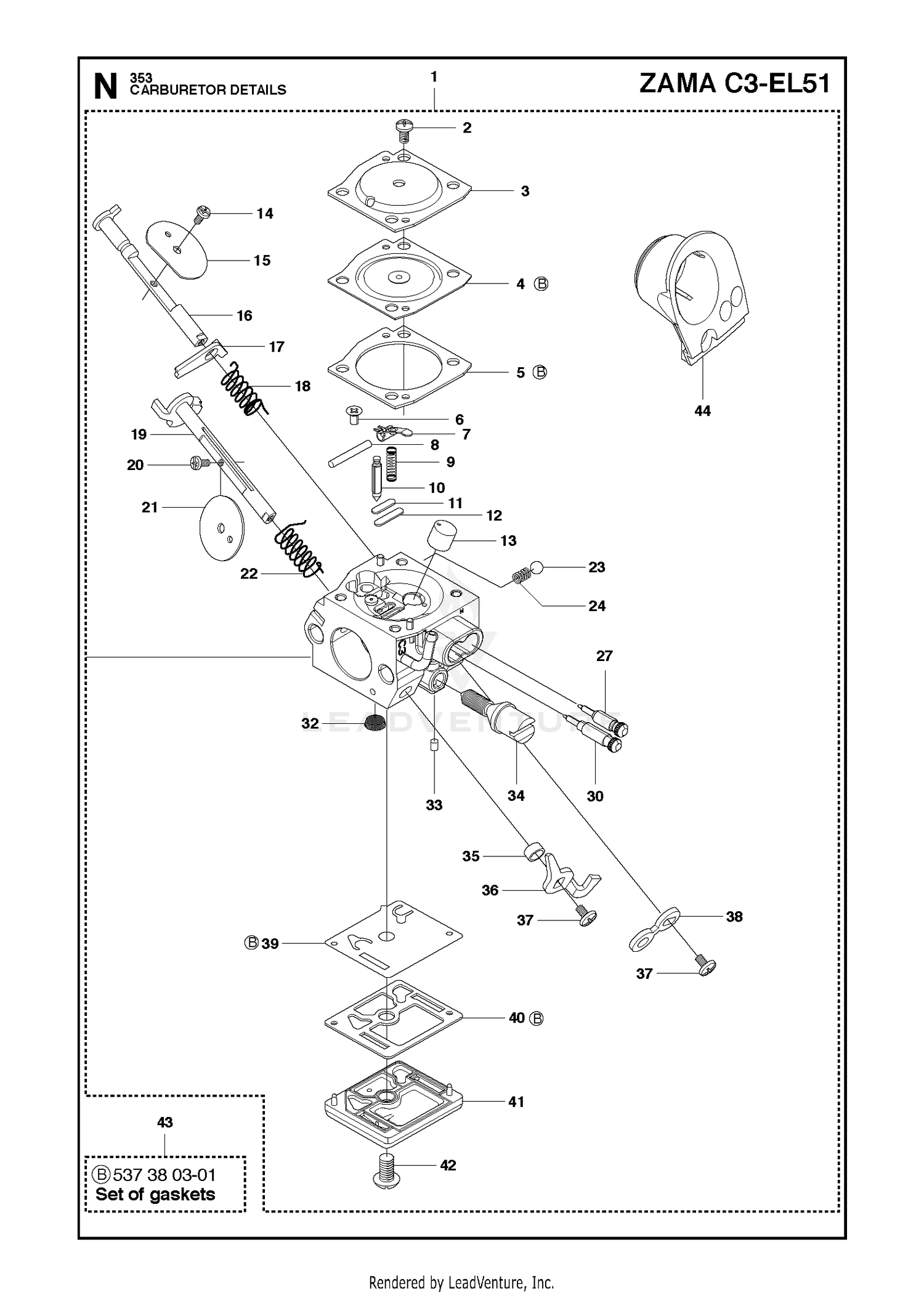

CARBURETOR DETAILS
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 580740201 | CARBURETOR Price: $49.99 |
| 2 | 503480501 | SCREW Price: $2.99 |
| 3 | 537176001 | COVER Price: $6.99 |
| 4 | 537175901 | DIAPHRAGM Price: $19.99 |
| 5 | 503884401 | Gasket Price: $1.00 |
| 6 | 544082101 | SCREW Price: $2.99 |
| 7 | 537176401 | LEVER Price: $6.99 |
| 8 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 9 | 537176301 | SPRING Price: $4.99 |
| 10 | 537176201 | VALVE Price: $12.99 |
| 11 | 537177801 | PLUG Price: $3.99 |
| 12 | 503535601 | PLUG Price: $3.99 |
| 13 | 537416101 | JET Price: $19.99 |
| 14 | 503523601 | SCREW Price: $2.99 |
| 15 | 544056601 | CHOKE FLAP Price: $4.99 |
| 16 | 537266701 | CHOKE SHAFT Price: $22.99 |
| 17 | 544056701 | THROTTLE LOCK Price: $7.99 |
| 18 | 537176601 | SPRING Price: $4.99 |
| 19 | 537266301 | THROTTLE SHAFT Price: $34.99 |
| 20 | 503481801 | SCREW Price: $2.99 |
| 21 | 537266601 | THROTTLE FLAP Price: $9.99 |
| 22 | 537176101 | SPRING Price: $4.99 |
| 23 | 537012501 | BALL Price: $2.99 |
| 24 | 537012601 | SPRING Price: $2.99 |
| 27 | 537178501 | JET Price: $11.99 |
| 30 | 537267001 | LOW SPEED NEEDLE Price: $24.99 |
| 32 | 503535701 | STRAINER Price: $3.99 |
| 33 | 503481101 | PLUG Price: $3.99 |
| 34 | 537177601 | IDLE SCREW Price: $11.99 |
| 35 | 503481901 | BUSHING Price: $5.99 |
| 36 | 537176901 | LEVER Price: $4.04 |
| 37 | 503479001 | SCREW Price: $2.99 |
| 39 | 537380201 | PUMP DIAPHRAGM Price: $14.99 |
| 40 | 503616601 | GASKET Price: $2.99 |
| 41 | 537176801 | COVER Price: $24.10 |
| 42 | 503479601 | SCREW Price: $2.99 |
| 44 | 579347201 | BRACKET Price: $12.99 |
