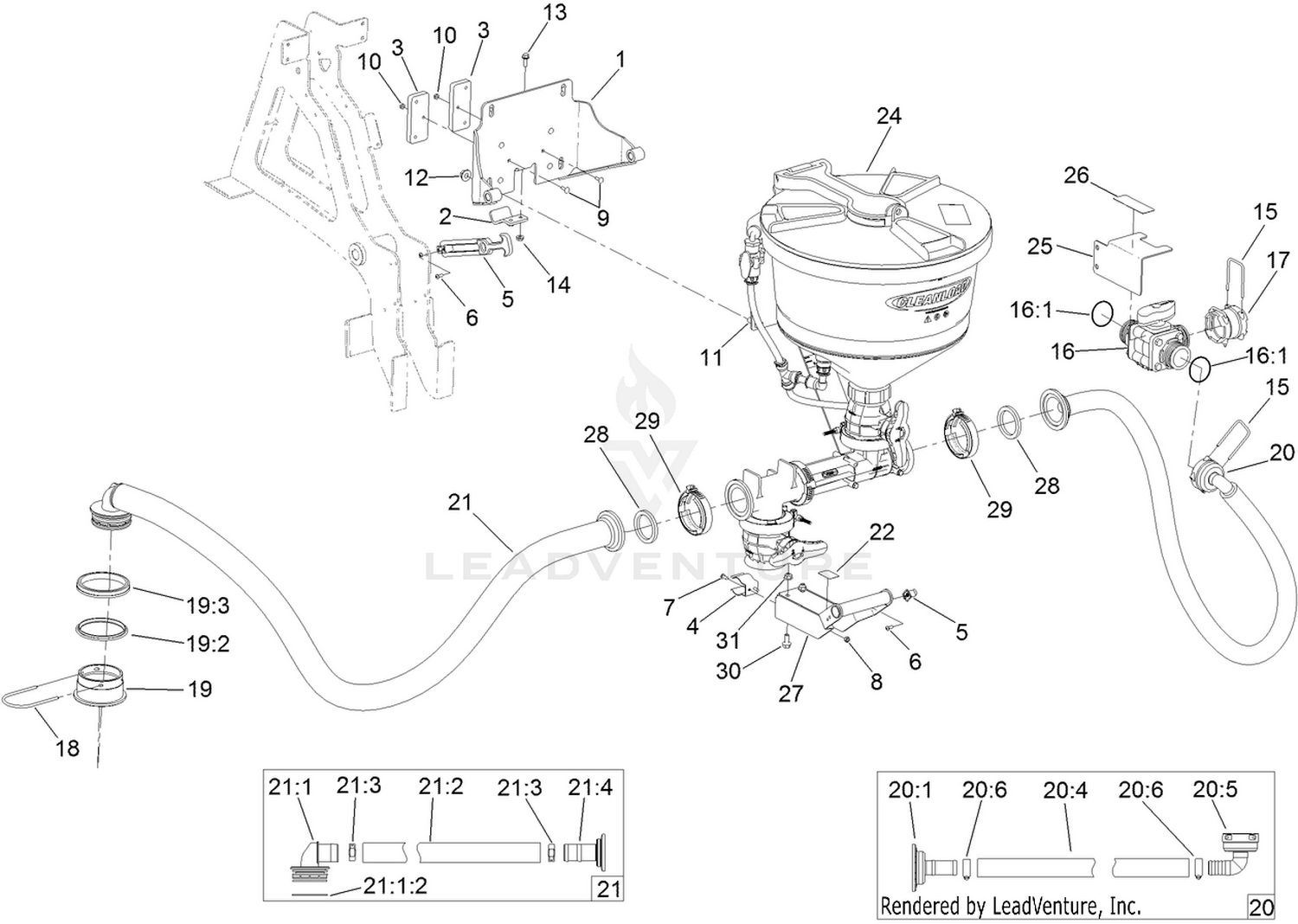

Eductor Support Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-4912-03 | PLATE-PIVOT Price: $150.18 |
| 2 | 119-4928 | BRACKET-LATCH Price: $15.02 |
| 3 | 119-4963 | PAD-WEAR Price: $42.68 |
| 4 | 119-4937 | CLIP-SPRING Price: $21.31 |
| 5 | 115-8215 | DRAW LATCH ASM Price: $63.51 |
| 6 | 115-9830 | SCREW-HSBH Price: $0.42 |
| 7 | 3250-12 | SCREW-PPH Price: $0.25 |
| 8 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 9 | 1-807533 | BOLT-CARR Price: $0.99 |
| 10 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 11 | 3234-11 | SCREW-HHF Price: $1.23 |
| 12 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 13 | 3234-4 | SCREW-HHF Price: $0.50 |
| 14 | 32128-33 | NUT-HF Price: $0.25 |
| 15 | 125-4000 | FORK Price: $9.22 |
| 16 | 125-4118 | VALVE-3 WAY Price: $223.98 |
| 17 | 125-8037 | ADAPTER Price: $12.65 |
| 18 | 117-7996 | FORK Price: $9.74 |
| 19 | 117-7851 | BULKHEAD ASM Price: $108.56 |
| 20 | 125-4160 | SUPPLY HOSE ASM Price: $81.38 |
| 21 | 127-9737 | EDUCTOR HOSE ASM Price: $188.62 |
| 22 | 119-4988 | DECAL-LOCK Price: $24.30 |
| 24 | 127-2949 | EDUCTOR ASM Price: $2,558.78 |
| 25 | 127-3948-03 | BRACKET-VALVE Price: $14.00 |
| 26 | 127-3954 | DECAL-EDUCTOR Price: $12.61 |
| 27 | 127-5000-03 | HANDLE-EDUCTOR Price: $100.95 |
| 28 | 127-5004 | GASKET Price: $3.39 |
| 29 | 127-5005 | CLAMP-WORM SCREW Price: $10.92 |
| 30 | 104-8300 | NUT-HF, NI Price: $0.39 |
